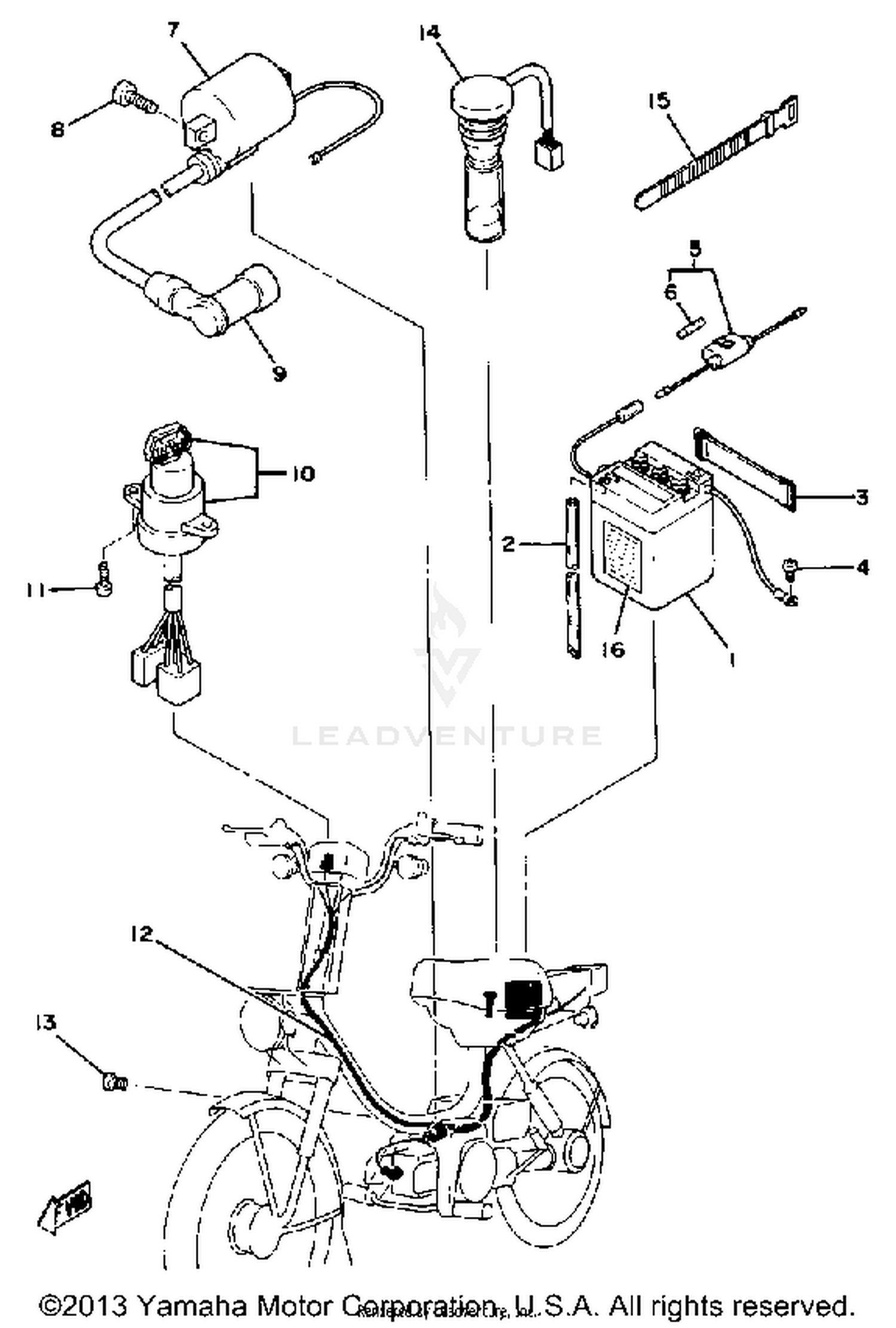

| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
6N4-2A-2 GS BATTERY
BTG-6N42A-20-00
Superseded by 6N4-2A200-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE, BREATHER
3L5-82112-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#3
BAND, BATTERY
22F-82131-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
FUSE HOLDER ASSY
55K-82150-01-00
Superseded by 55K-82150-02-00
|
$13.99 | ||
|
Unavailable |
|||
|
#6
FUSE (12V-10A)
116-82151-00-00
Superseded by 1A0-82151-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
IGNITION COIL ASSY
5M0-82310-M0-00
Superseded by 4RP-82310-26-00
|
$70.99 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG CAP ASSY
56J-82370-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
MAIN SWITCH ASSEMBLY
3L8-82510-20-00
|
$54.86 | ||
|
Unavailable |
|||
|
#11
SCREW
98901-04016-00
Superseded by 98980-04016-00
|
$1.00 | ||
|
Unavailable |
|||
|
#12
WIRE HARNESS ASSEMBLY
3L8-82590-20-00
|
$86.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Unavailable |
|||
|
#14
OIL LVL GAUGE ASSEMBLY
5M0-85720-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#15
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
LABEL, BATTERY
118-82141-09-00
Superseded by 40A-82141-G0-00
|
$0.85 | ||
|
Unavailable |
|||
