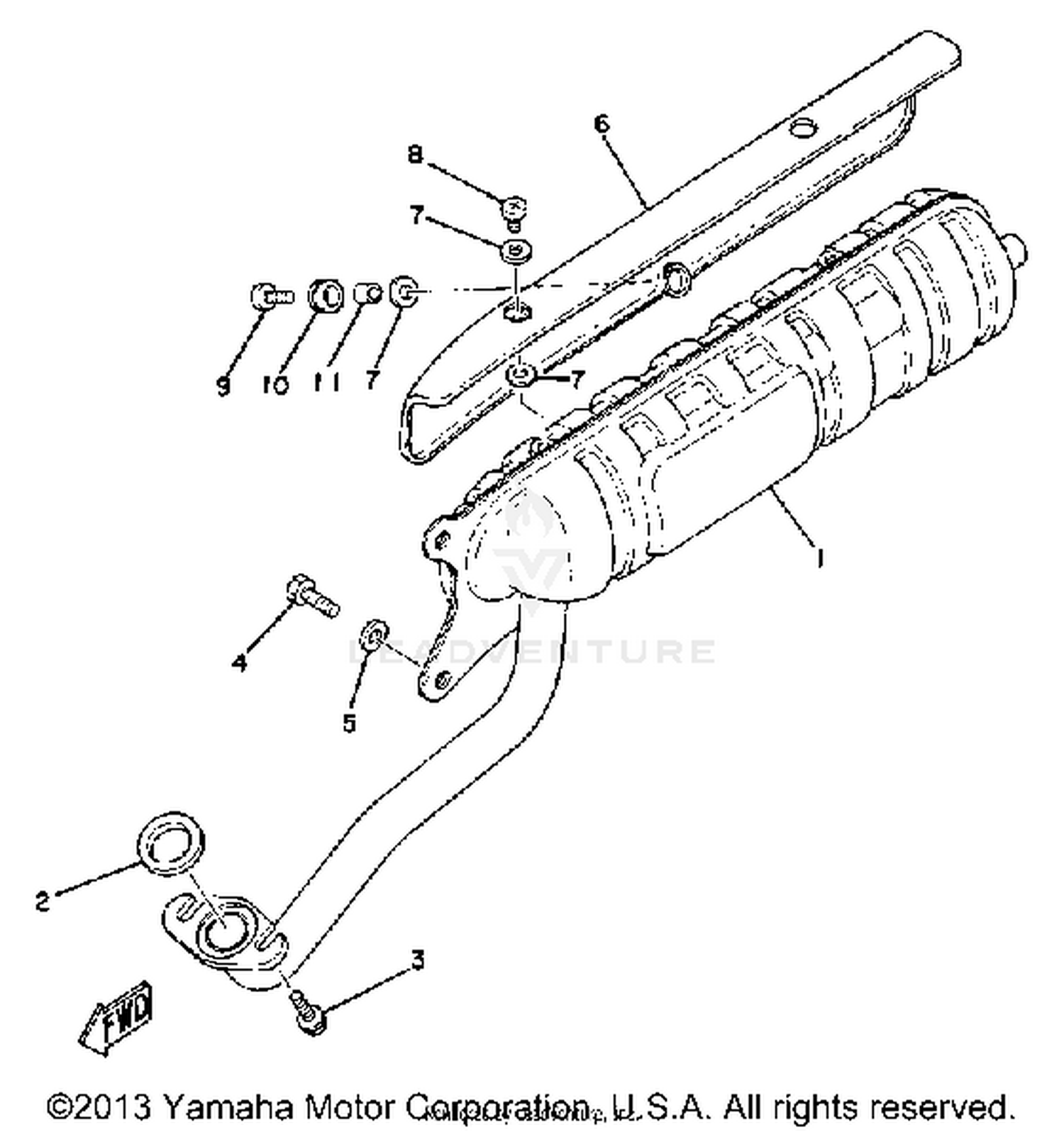

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L (3L5-14
4K6-14610-00-00
|
$286.99 | ||
|
Unavailable |
|||
|
#2
GASKET, EXST PIPE
2E9-14613-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, HEXAGON
90153-06057-00
Superseded by 90153-06061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROTECTOR, MUFF 1
3L5-14718-00-35
|
$26.99 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE
90430-06012-00
Superseded by 90202-05191-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, BIND
98903-06012-00
Superseded by 98980-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-12237-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-06023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
