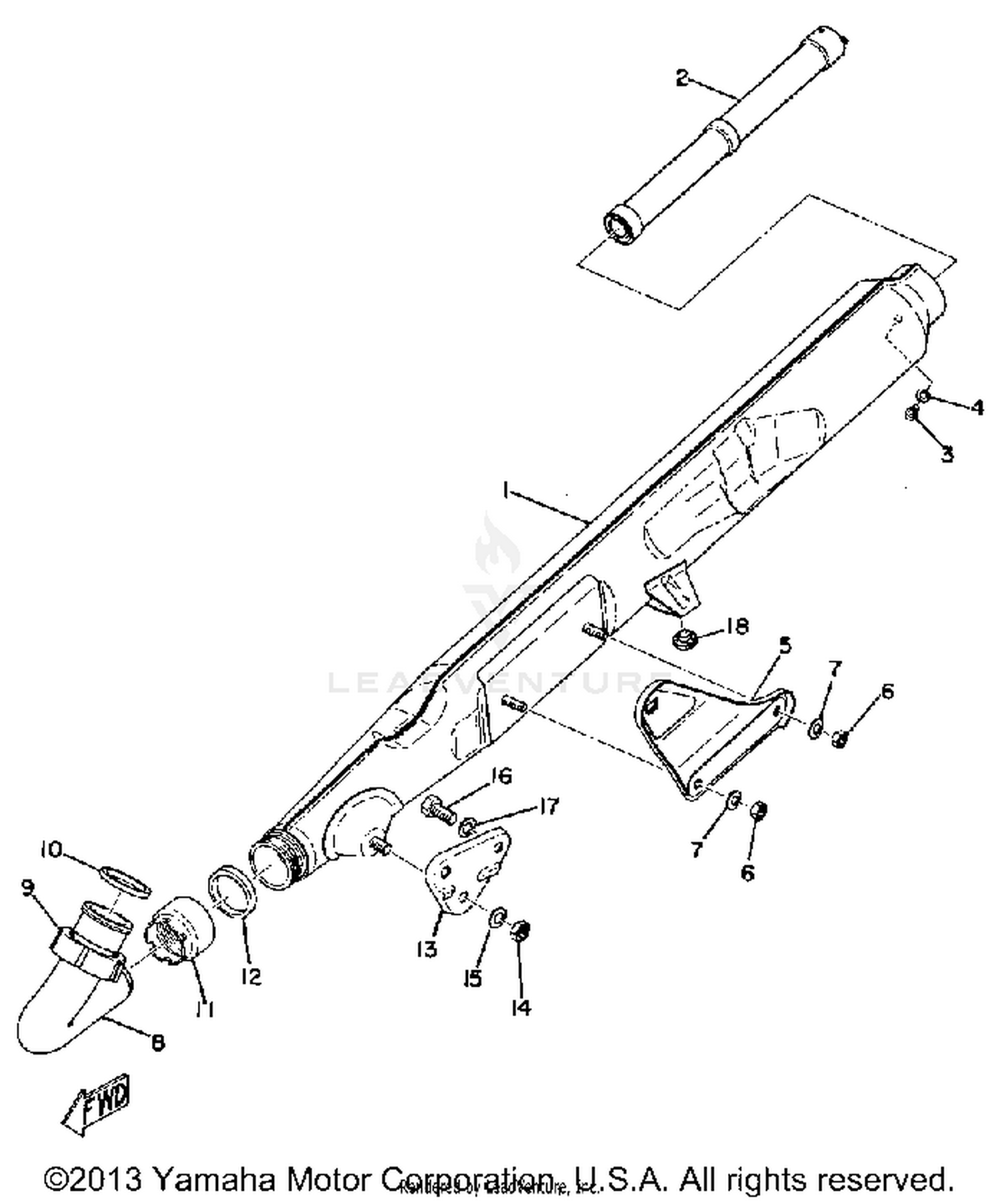

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MUFFLER ASSEMBLY L
353-14710-00-00
|
$88.25 | ||
|
Unavailable |
|||
|
#2
SILENCER, EXHAUST
353-14753-01-00
|
$14.62 | ||
|
Unavailable |
|||
|
#3
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, MUFFLER 2
353-14772-00-00
|
$7.26 | ||
|
Unavailable |
|||
|
#6
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, EXHAUST L
353-14611-00-00
|
$10.83 | ||
|
Unavailable |
|||
|
#9
NUT, RING
1L4-14612-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, EXST PIPE
132-14613-00-00
Superseded by 3MT-14613-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, MUFFLER JOINT
132-14713-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#12
GASKET, MUFFLER
3NA-14714-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, MUFFLER 1
353-14771-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#14
NUT
95333-08600-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#18
STOPPER, MAIN STAND
1M3-27114-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
