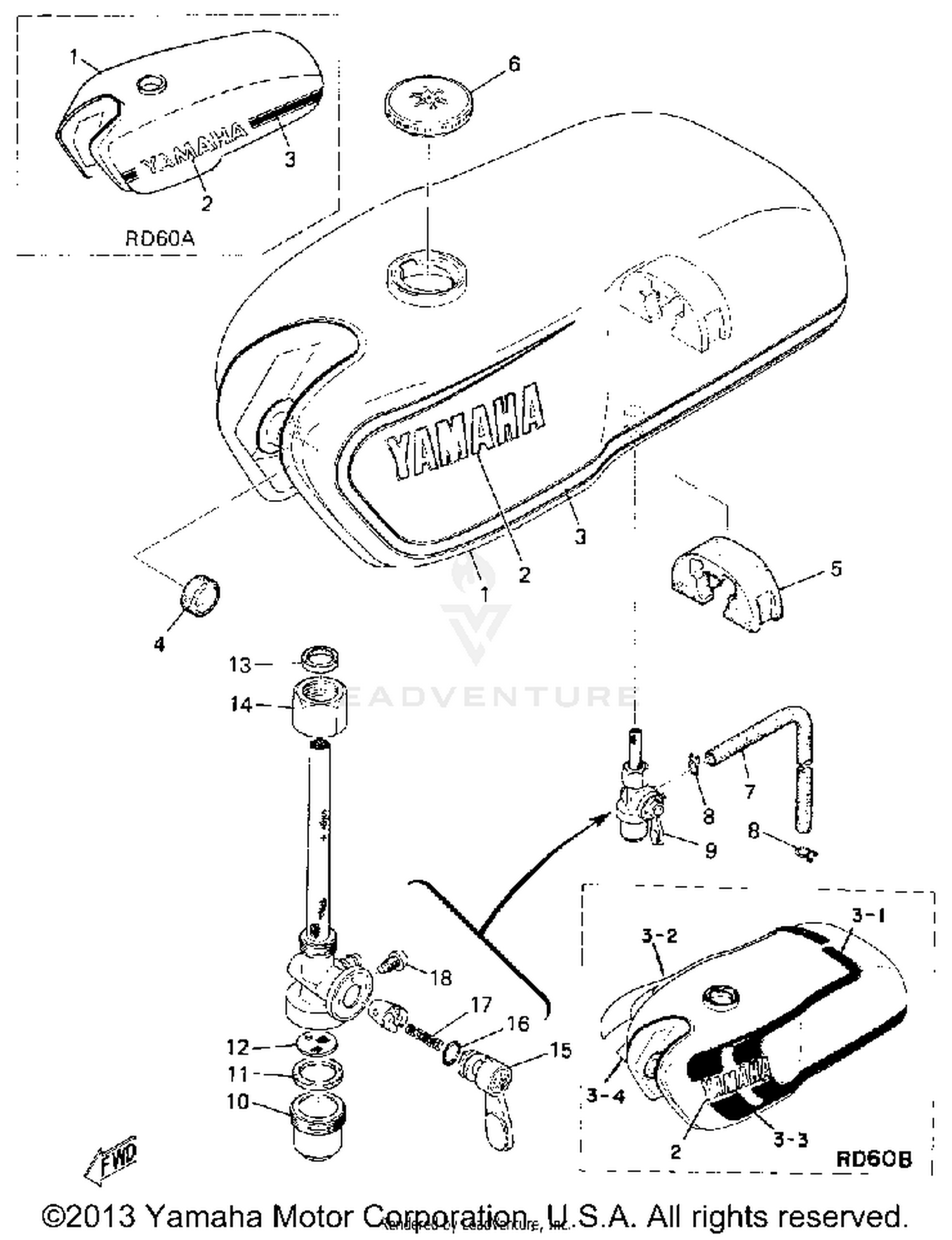

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
2L4-24110-Y0-02
|
$174.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
2L4-24110-Y0-06
|
$149.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
353-24110-00-X5
|
$174.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 1
388-24244-00-00
|
$3.91 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
322-24161-00-00
Superseded by 99221-00140-00
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#
GRAPHIC, FUEL TNK 2
388-24245-00-00
|
$4.30 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 1
353-24244-00-00
|
$4.70 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 2
353-24245-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#
GRPHC, FUEL TANK 11
360-24258-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#
GRAPHIC, FUEL TNK 3
388-24246-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#4
DAMPER, LOCATING 1
122-24181-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#
GRAPHIC, FUEL TNK 4
388-24247-00-00
|
$4.30 | ||
|
Unavailable |
|||
|
#5
DAMPER, LOCATING 2
353-24182-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP ASSEMBLY
122-24610-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE 5
90445-09073-00
Superseded by 5RB-24315-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
90467-08003-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUEL COCK ASSEMBLY 1
367-24500-04-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUP, FILTER
122-24521-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#11
GASKET
102-24522-01-00
Superseded by 102-24522-02-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
NET, FILTER 2
122-24515-00-00
|
$7.10 | ||
|
Unavailable |
|||
|
#13
GASKET
122-24532-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
122-24531-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#15
LEVER, COCK
122-24524-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#16
SEAL, COCK
122-24534-00-00
|
$1.38 | ||
|
Unavailable |
|||
|
#17
SPRING, COMPRESSION
90501-07029-00
|
$1.05 | ||
|
Unavailable |
|||
|
#18
SCREW, LVR FITTING
127-24535-00-00
|
$2.77 | ||
|
Unavailable |
|||
