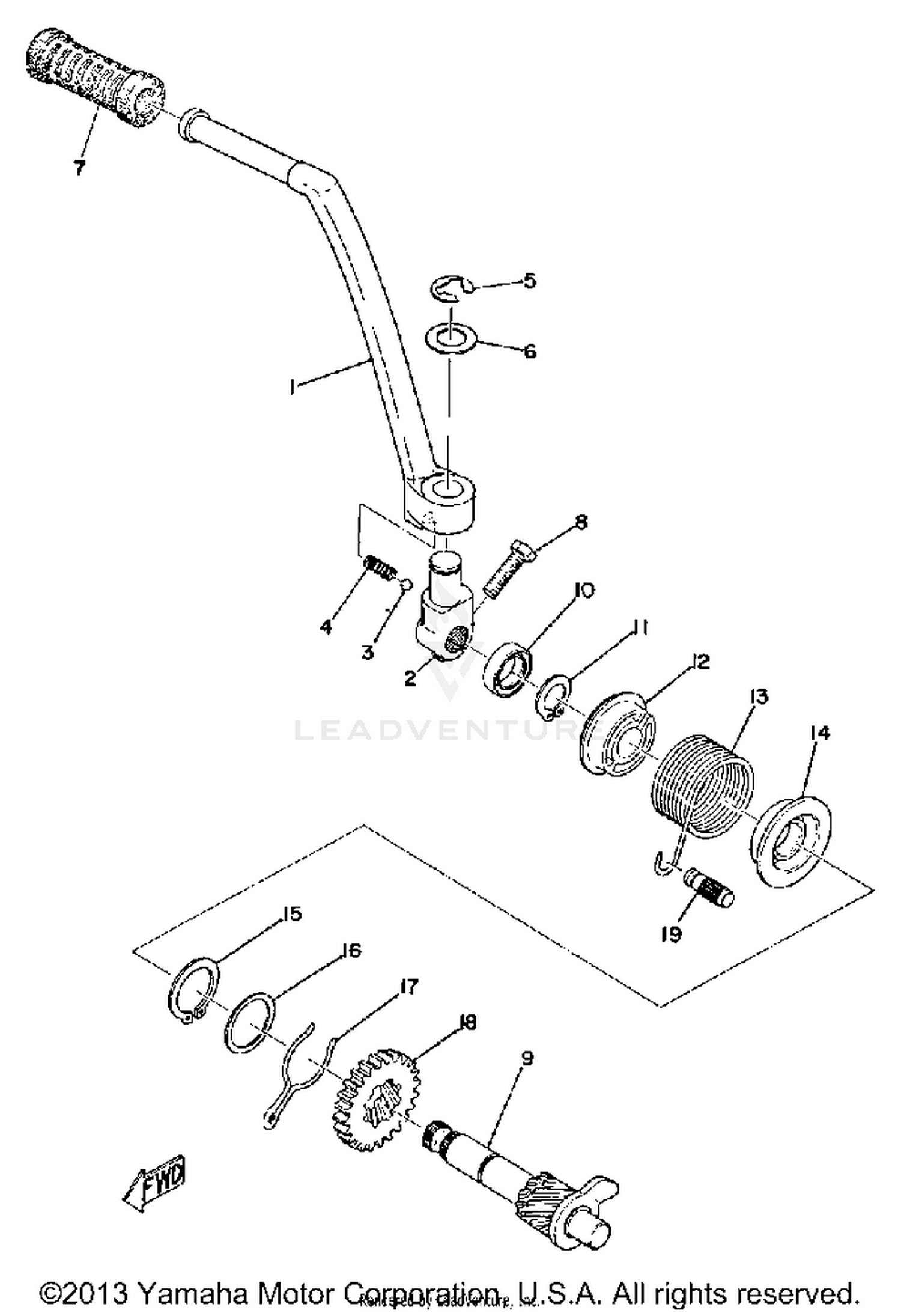

Kick Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK CRANK ASSEMBLY
5G1-15620-00-00
|
$162.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOSS, KICK CRANK
337-15621-01-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BALL
93507-32031-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, COMPRESSION
90501-12081-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
99006-10600-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE (1.5T)
90201-15234-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, KICK LEVER
156-15618-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
KICK AXLE ASSEMBLY
353-15660-01-00
|
$119.99 | ||
|
Unavailable |
|||
|
#10
OIL SEAL
93109-15001-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
99009-15400-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, SPRING
132-15676-01-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, TORSION
90508-26136-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, TORSION
90508-26136-00
|
$14.49 | ||
|
Unavailable |
|||
|
#15
CIRCLIP
93410-25017-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90468-26038-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
GEAR, KICK (24T)
353-15641-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#19
STOPPER
248-15668-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
