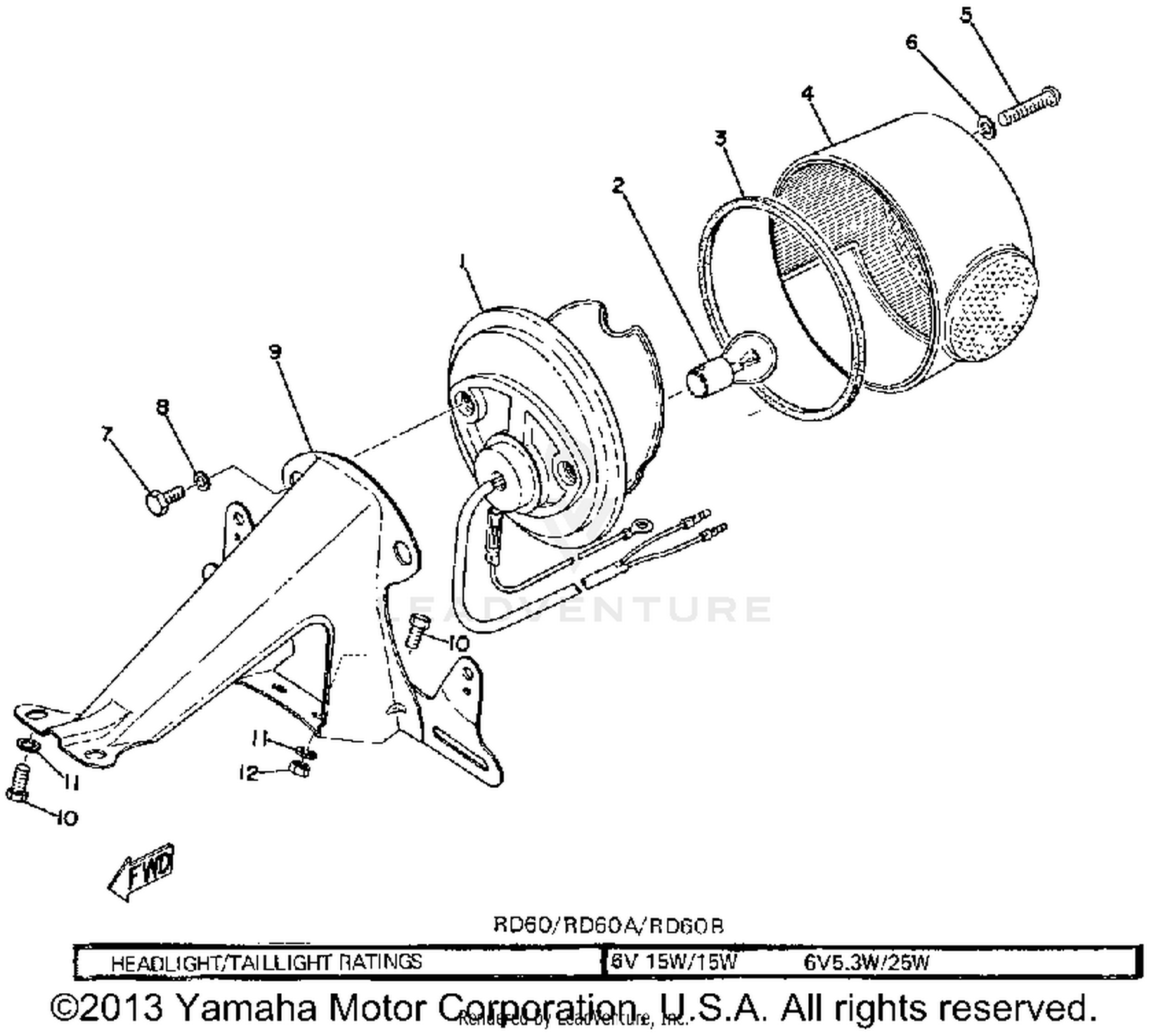

Tail Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
388-84510-60-00
|
$49.20 | ||
|
Unavailable |
|||
|
#
BASE, TAILLIGHT
388-84511-61-00
|
$22.99 | ||
|
Unavailable |
|||
|
#2
BULB 6VP21/5W(17904)
1M1-84514-60-00
Superseded by 1M1-84514-60-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, LENS
275-84523-60-00
|
$9.20 | ||
|
Unavailable |
|||
|
#4
LENS, TAILLIGHT
341-84721-60-00
|
$21.16 | ||
|
Unavailable |
|||
|
#5
SCREW, LENS FITTING
98580-04055-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
341-84722-60-00
|
$3.96 | ||
|
Unavailable |
|||
|
#7
NUT
95380-05600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, LICENCE
388-84551-60-33
|
$15.26 | ||
|
Unavailable |
|||
|
#10
BOLT
97013-06012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
