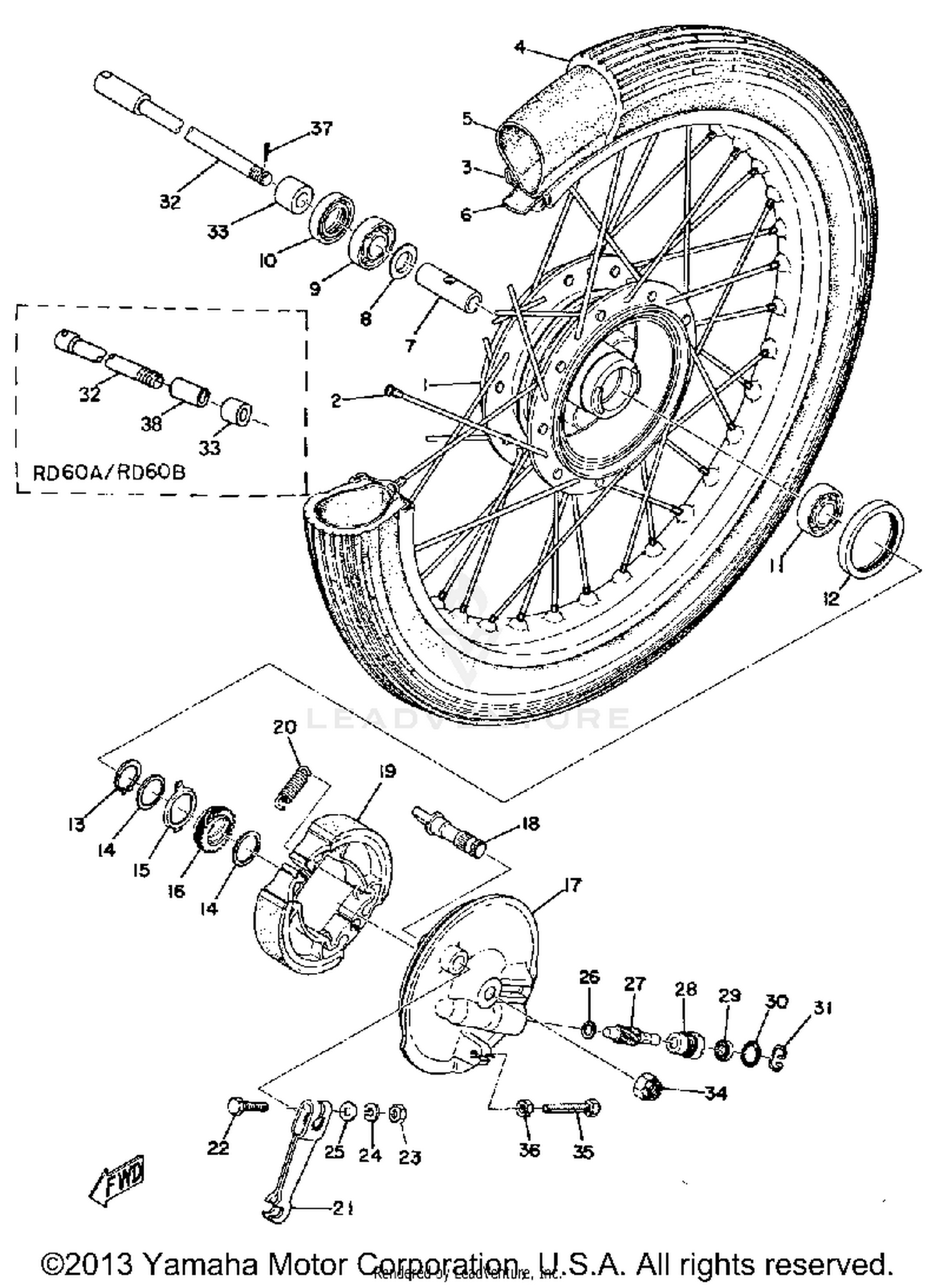

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
296-25111-00-00
|
$27.80 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
109-25104-00-00
|
$10.40 | ||
|
Unavailable |
|||
|
#3
RIM 1.40X17
94414-17003-00
|
$70.99 | ||
|
Unavailable |
|||
|
#4
250X17 FRNTRIB
94125-17313-00
|
$16.99 | ||
|
Unavailable |
|||
|
#5
TUBE
94225-17082-00
|
$9.99 | ||
|
Unavailable |
|||
|
#6
BAND, RIM (2.75-17)
94332-17112-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, BEARING
90560-10303-00
|
$13.49 | ||
|
Unavailable |
|||
|
#8
FLANGE, SPACER 2
2E9-25116-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING (B6300Z)
93306-30003-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93102-20009-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (B6300Z)
93306-30003-00
|
$40.99 | ||
|
Unavailable |
|||
|
#12
OIL SEAL
93105-47007-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
99009-20400-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-20269-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLUTCH, METER
183-25149-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, DRIVE
296-25135-00-00
|
$4.96 | ||
|
Unavailable |
|||
|
#17
BRAKE SHOE PLT ASSEMBLY
393-25016-10-35
|
$150.99 | ||
|
Unavailable |
|||
|
#18
CAMSHAFT
122-25351-02-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRAKE SHOE KIT
296-W2536-00-00
Superseded by 4KN-W253E-11-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BRAKESHOE SET-2PCS (326-25330-1
326-W2536-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#20
SPRING, TENSION
90506-16150-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
LEVER, CAMSHAFT 1
109-25155-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#22
BOLT
97313-06030-00
Superseded by 97013-06030-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-07076-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, METER
296-25138-00-00
|
$4.05 | ||
|
Unavailable |
|||
|
#28
BUSH
109-25136-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL
93104-07003-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
RING, STOP
102-25137-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
AXLE, WHEEL (353-25181-03-00)
99999-02188-00
|
$38.99 | ||
|
Unavailable |
|||
|
#33
COLLAR
90387-10077-00
|
$5.99 | ||
|
Unavailable |
|||
|
#34
NUT, CASTLE
90171-10004-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT
90123-06011-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, SPEC''L SHAPE
90179-06143-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR
90387-10264-00
|
$7.99 | ||
|
Unavailable |
|||
