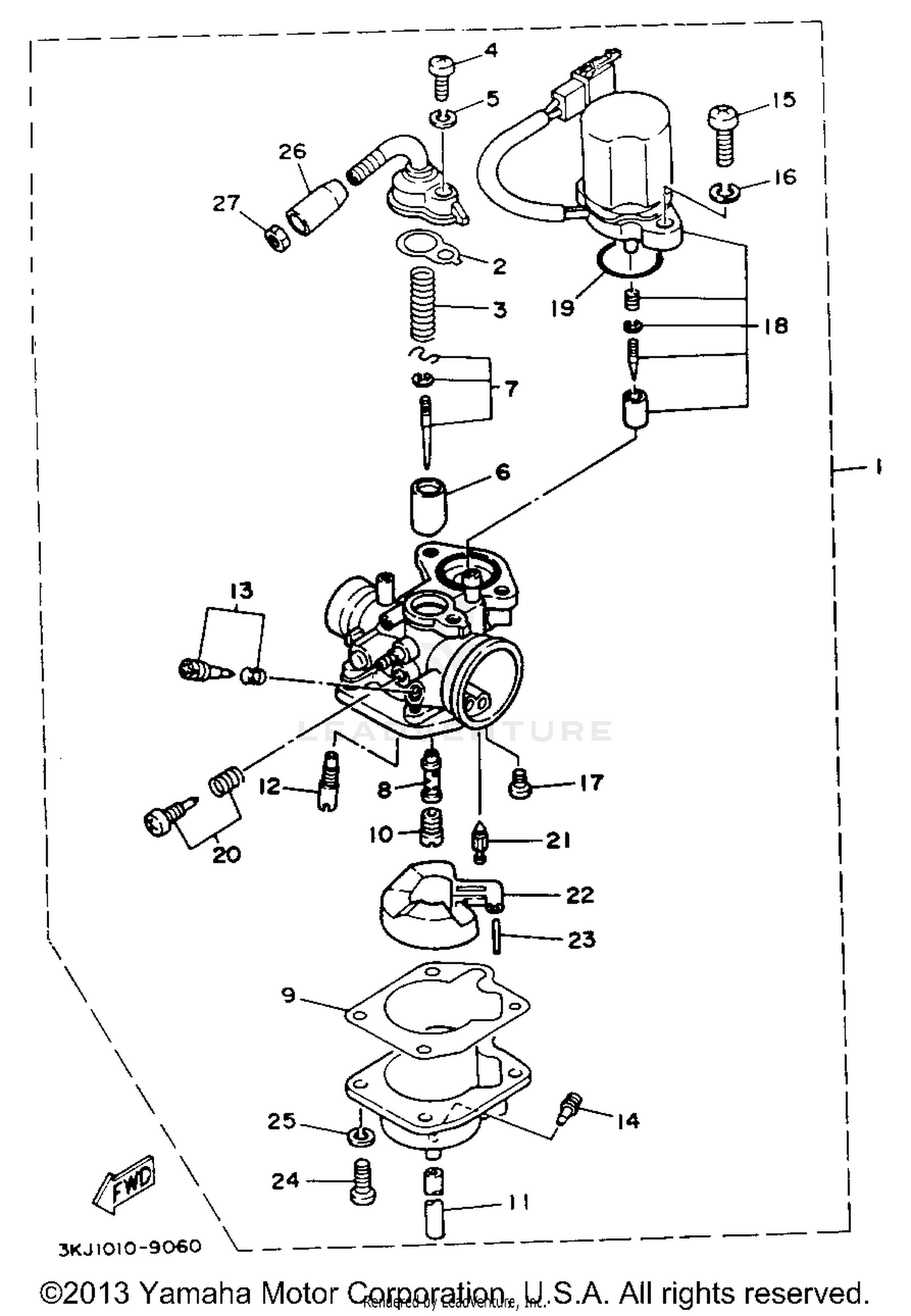

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY 1
3KJ-14301-12-00
Superseded by 3KJ-14301-41-00
|
$370.99 | ||
|
Unavailable |
|||
|
#2
GASKET
2T4-14126-01-00
Superseded by 2T4-14126-02-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, THROTTLE VALVE
1YU-14331-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
VALVE, THROTTLE 1
3KJ-14312-25-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NEEDLE SET
3KJ-1490J-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NOZZLE, MAIN
14T-14341-01-00
|
$18.49 | ||
|
Unavailable |
|||
|
#9
GASKET, FLOAT CHAMBER
14T-14384-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
JET, MAIN (76)
14T-14343-38-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE
3KJ-14349-00-00
Superseded by 3KJ-14349-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
JET, PILOT (42)
3KJ-14353-21-00
|
$6.99 | ||
|
Unavailable |
|||
|
#13
SCREW, AIR ADJUSTING
14T-14104-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, AIR ADJUSTING
14T-14104-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-06016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
STARTER SET
3KJ-1410A-10-00
Superseded by 3VP-1410A-00-00
|
$266.99 | ||
|
Unavailable |
|||
|
#19
O-RING
1HV-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
THROTTLE SCREW SET
1YU-14103-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
VALVE, NEEDLE
2JA-14392-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FLOAT
1HV-14385-01-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, FLOAT
367-14386-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98580-04016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
CAP, RUBBER
3KJ-26329-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, CABLE ADJUSTING
288-14161-00-00
Superseded by 85L-14161-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
