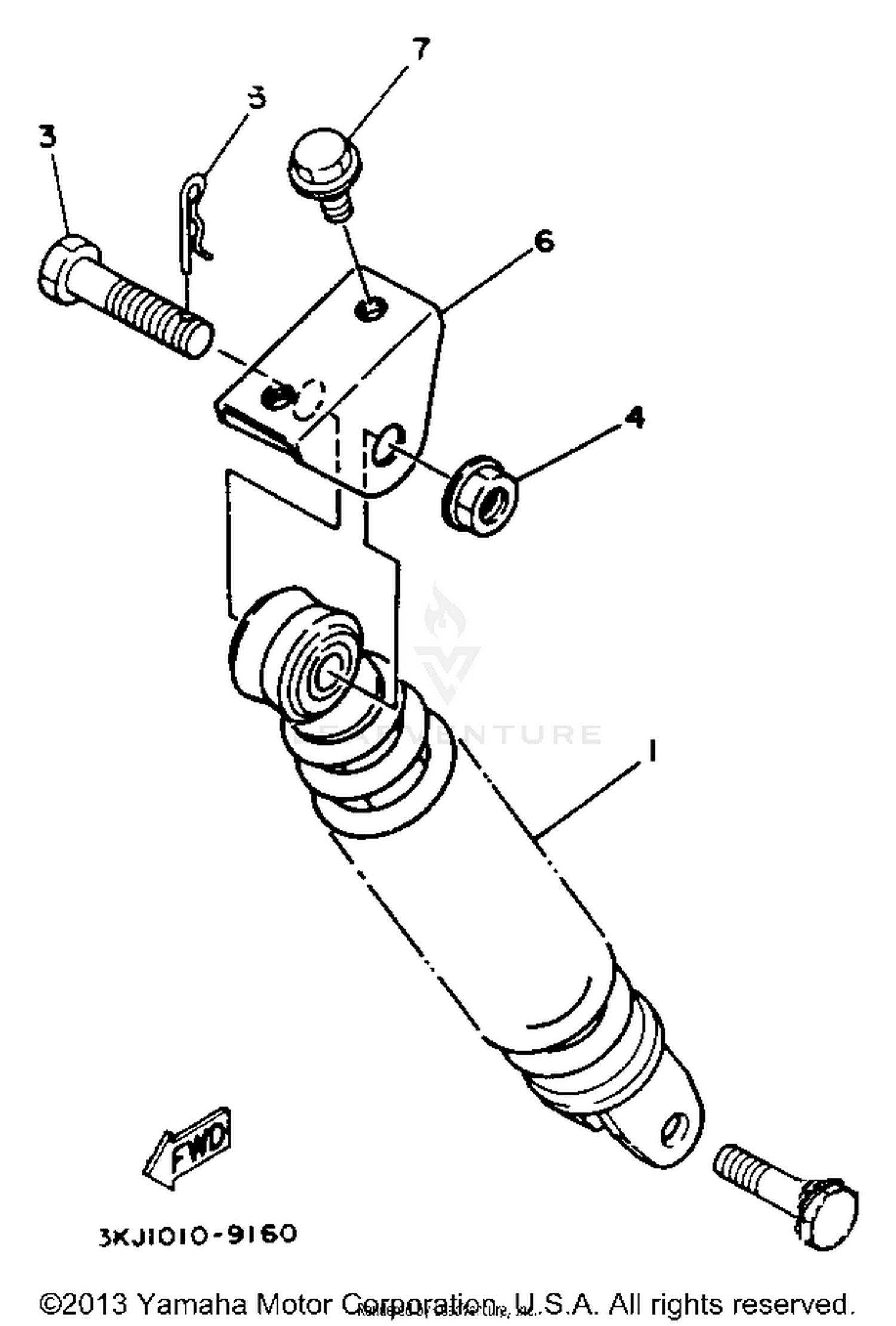

Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY,
3KJ-22210-00-00
Superseded by 3YJ-22210-51-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
90105-08121-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH HOLE
90102-10031-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90468-12006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, REAR SHOCK ABSORBER
3KJ-21381-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
95811-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
