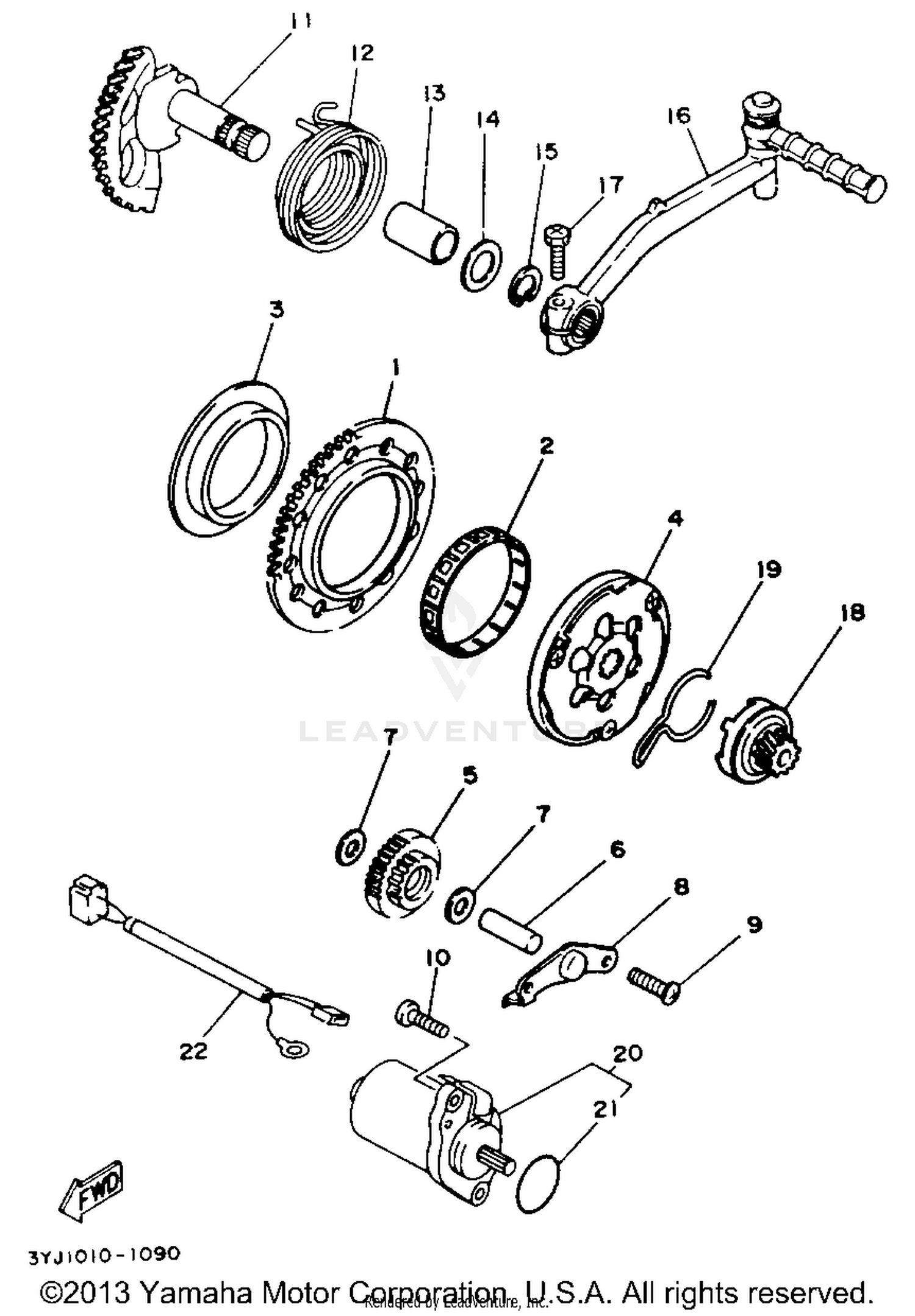

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR 1
3AA-15513-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93310-257R1-00
Superseded by 93310-25712-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, GEAR
3KJ-15528-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
STARTER CLUTCH ASSY
3KJ-15570-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
IDLE GEAR ASSEMBLY (65T)
3AA-15650-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT
50M-13342-00-00
Superseded by 3KJ-15659-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-084M4-00
Superseded by 90201-08088-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, IDLE GEAR
3KJ-15532-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
KICK SHAFT ASSEMBLY
3KJ-15601-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, TORSION
90508-32609-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BUSH, SOLID
90380-15083-00
Superseded by 90380-15817-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-154E9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
99009-15400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
KICK CRANK ASSY
3KJ-15620-01-00
Superseded by 3KJ-15620-02-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, HEXAGON
90153-06038-00
Superseded by 90153-06008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
KICK PINION ASSY
1NT-15631-01-00
|
|||
|
Unavailable |
|||
|
#19
CLIP
32N-15673-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
STARTING MOTOR ASSY
3KJ-81800-01-00
Superseded by 5BM-81800-01-00
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-23614-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WIRE, LEAD
3KJ-82541-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
