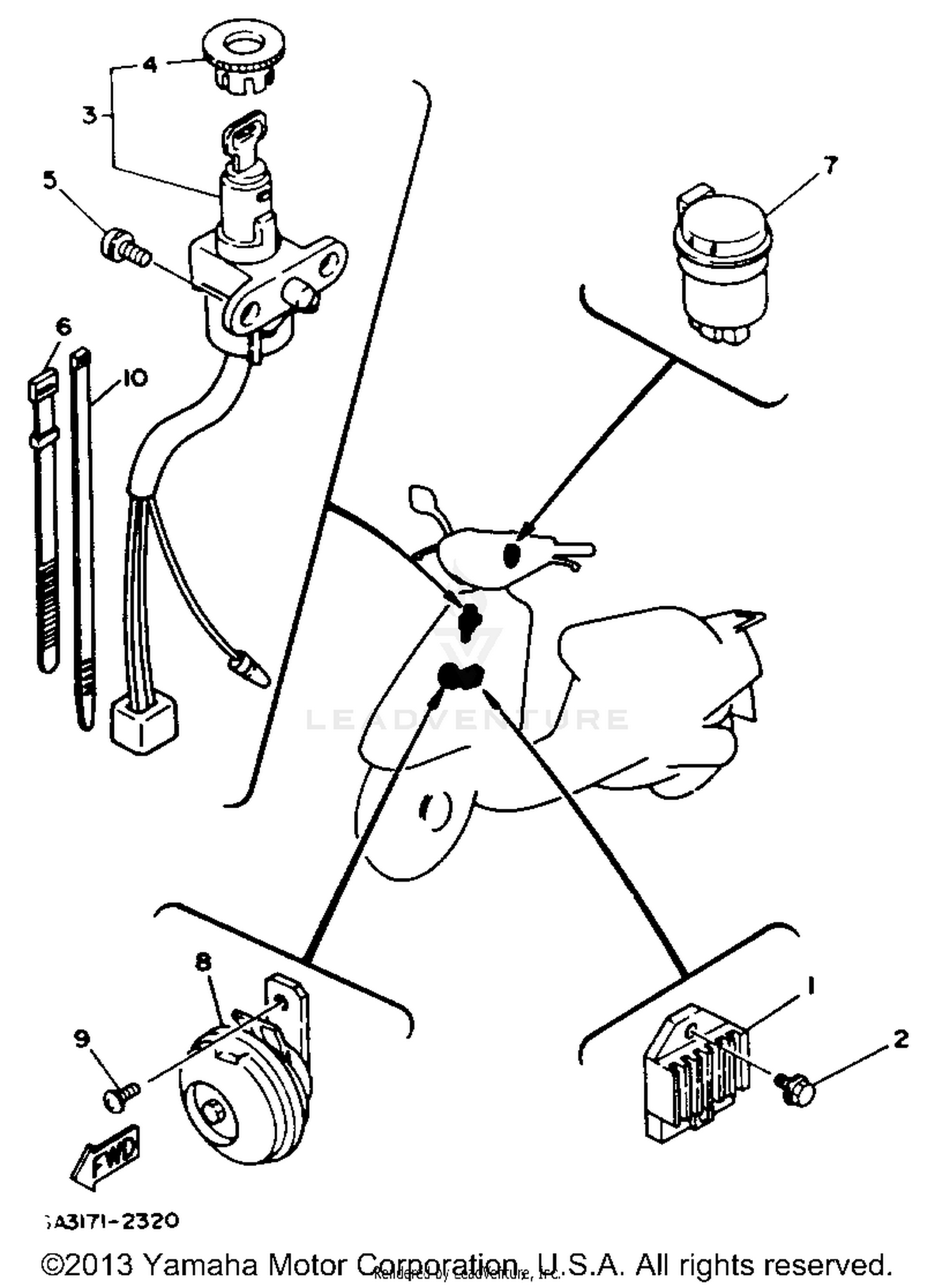

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REC/REG ASY
3KJ-81960-10-00
Superseded by 3KJ-81960-11-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
90105-06707-00
Superseded by 95024-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
MAIN SWITCH STEERING LOCK
4FB-82501-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, SWITCH
2EX-82552-20-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
90149-06250-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, SWITCH CORD
25G-83936-01-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLASHER RELAY ASSY
29G-83350-20-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HORN
27V-83371-20-00
Superseded by 35R-83371-30-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND
12R-82591-00-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
