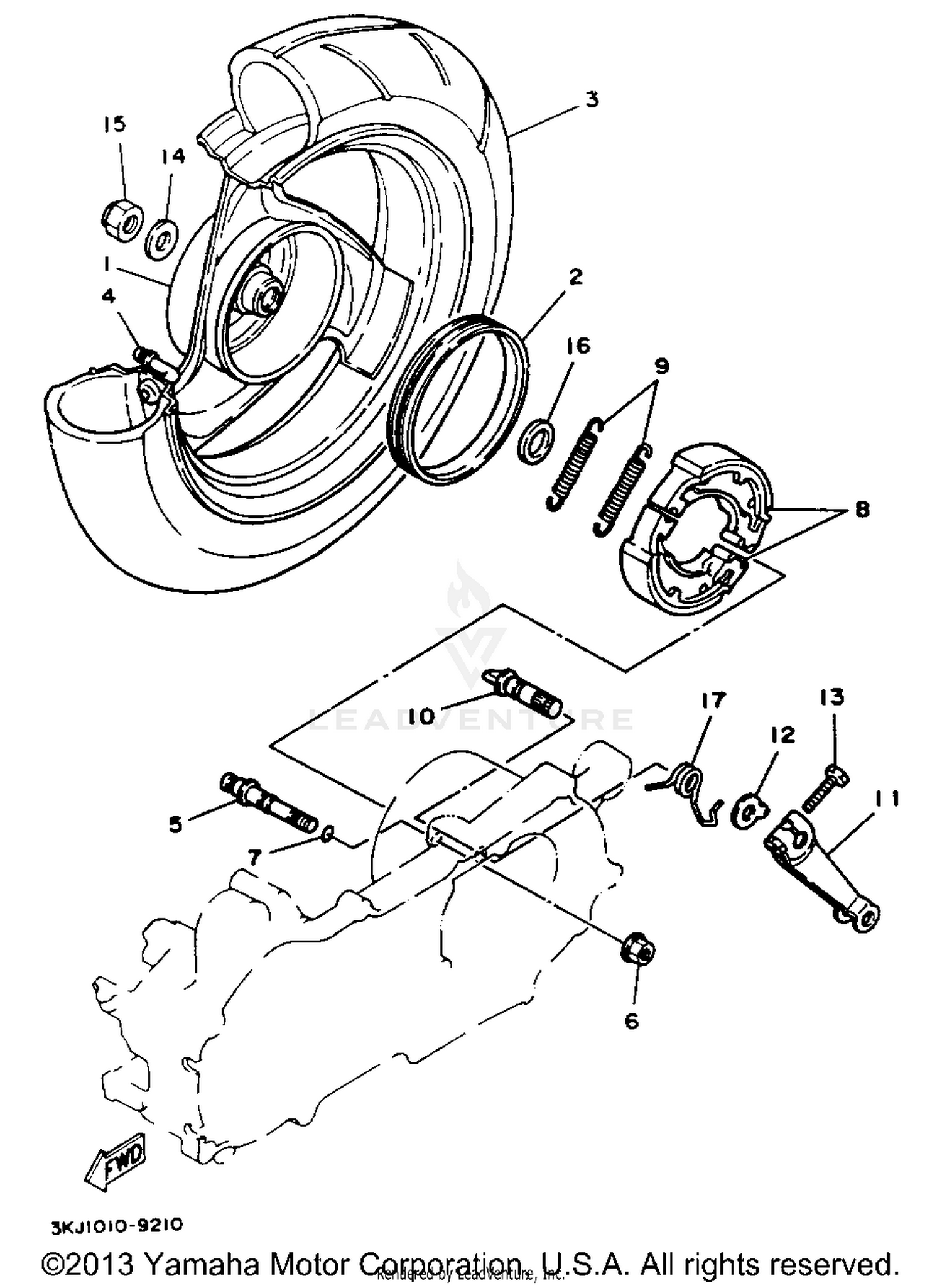

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL COMP.
3YJ-25390-00-UJ
Superseded by 3YJ-25390-02-UJ
|
$203.99 | ||
|
Unavailable |
|||
|
#
REAR WHEEL COMP.
3YJ-25390-00-35
Superseded by 3YJ-25390-02-35
|
$207.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING 2
3KJ-25336-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TIRE (80/90-10 35J C922)
94108-104W0-00
Superseded by 94108-10008-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
VALVE, RIM
93900-00036-00
Superseded by 93900-00041-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, PIVOT
3KJ-25326-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#6
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-07540-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE SHOE KIT
4BX-W2536-00-00
Superseded by 4BX-W253E-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-15260-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAMSHAFT
3KJ-25351-00-00
Superseded by 3KJ-25351-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, CAMSHAFT
3KJ-25355-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#12
PLATE, INDICATOR
52H-2513A-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-142M6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
90185-14150-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-17255-00
Superseded by 90201-177G4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, LEVER RETURN
3KJ-25357-00-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
