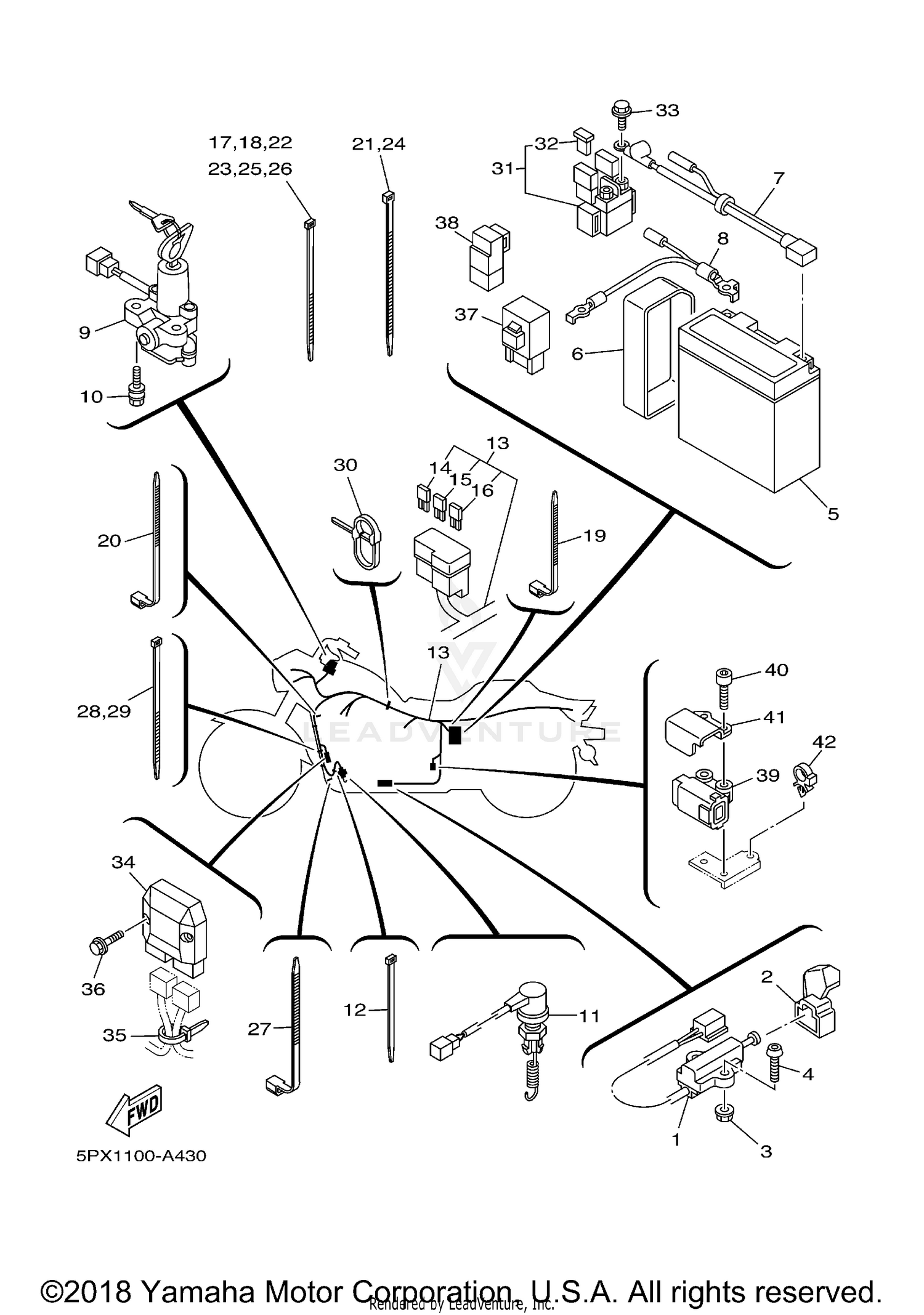

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH, SIDE STAND
5PX-82566-C0-00
Superseded by 5PX-82566-C1-00
|
$106.99 | ||
|
Unavailable |
|||
|
#2
COVER
5PX-8252U-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#3
NUT, S/L FLANGE
95607-05200-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, BUTTON HEAD
92017-05025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GT14B4 GS BATTERY -
5EA-82100-10-00
Superseded by GT1-4B400-00-00
|
$154.99 | ||
|
Unavailable |
|||
|
#6
BAND, BATTERY
4AS-82131-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#7
WIRE, PLUS LEAD
5PX-82115-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WIRE, MINUS LEAD
5PX-82116-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
MAIN SWITCH STEERING LOCK
5PX-82501-00-00
Superseded by 5PX-82501-10-00
|
$360.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
90109-080G5-00
Superseded by 90109-08196-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOP SWITCH ASSY
5PX-82530-00-00
Superseded by 5PX-82530-10-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
WIRE HARNESS ASSY
5PX-82590-00-00
|
$692.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUSE (7.5A-BL)
5JJ-82151-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#18
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#19
CLAMP
90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90464-15195-00
|
$4.15 | ||
|
Unavailable |
|||
|
#21
CLAMP
3MA-82591-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#23
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#24
CLAMP
3MA-82591-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#25
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#26
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#27
CLAMP
90464-15195-00
|
$4.15 | ||
|
Unavailable |
|||
|
#28
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#29
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#30
CLAMP
90464-28001-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
STARTER RELAY ASSY
4YR-81940-00-00
Superseded by 4YR-81940-02-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
FUSE (30A-BL)
1AE-82151-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
95027-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
RECTIFIER & REGULATOR ASSY
5JW-81960-00-00
|
$358.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90464-15195-00
|
$4.15 | ||
|
Unavailable |
|||
|
#36
BOLT, FLANGE
90105-06009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
RELAY ASSY (5PX-00)
5PX-81950-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
RELAY ASSY (5JJ-20)
5JJ-81950-20-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SENSOR, LEAN ANGLE
5PS-82576-00-00
Superseded by 5PS-82576-02-00
|
$84.99 | ||
|
Unavailable |
|||
|
#40
BOLT
91317-04020-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#41
PLATE
5PX-82388-00-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLAMP
90464-16006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
