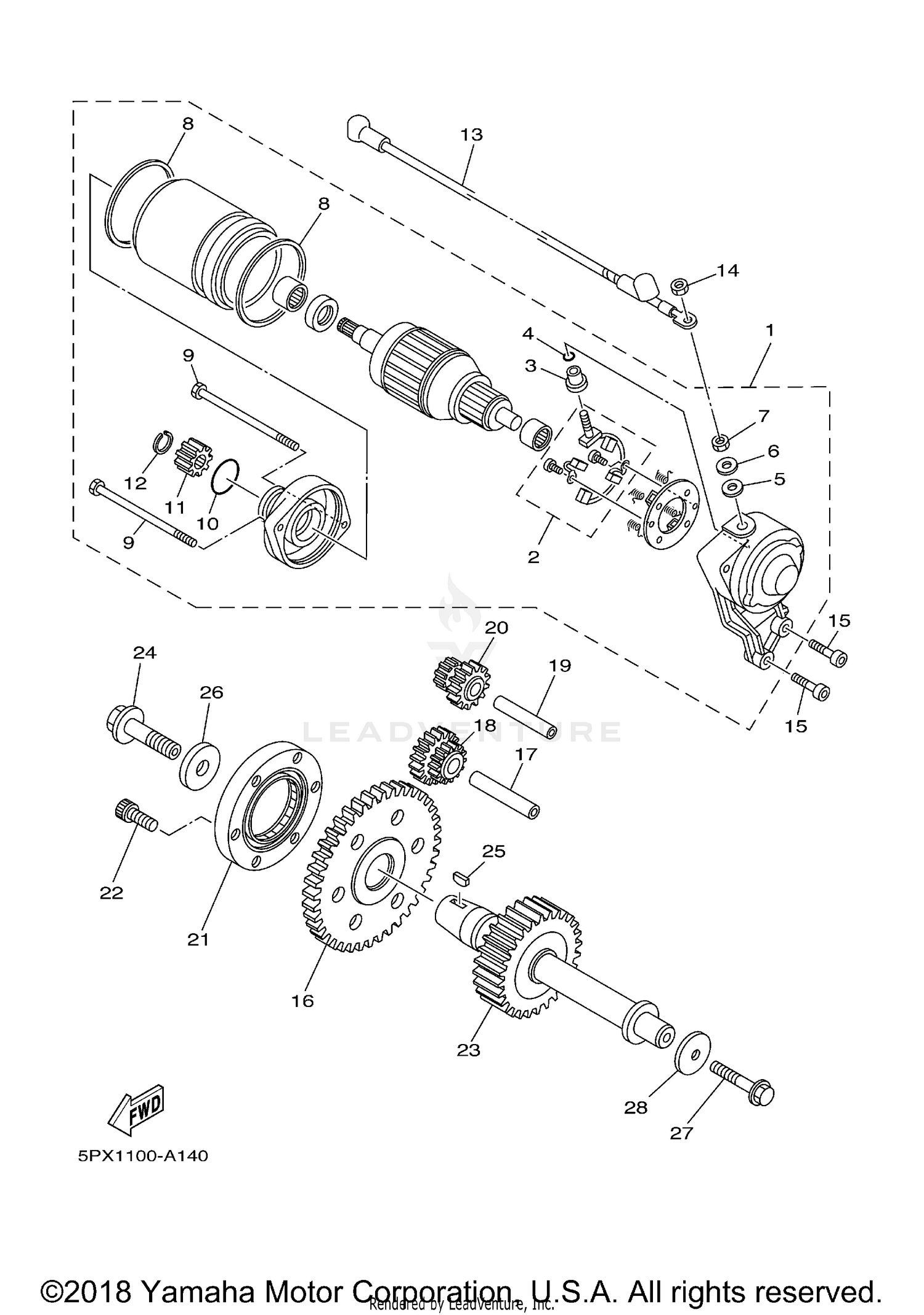

Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY
5PX-81890-00-00
Superseded by 5PX-81890-01-00
|
$767.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRUSH SET
5PX-81801-00-00
Superseded by 1D7-81801-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH, TERMINAL
7RH-8182G-00-00
|
$3.50 | ||
|
Unavailable |
|||
|
#4
O-RING
93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLAIN
7RH-8181L-00-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92907-061A5-00
Superseded by 90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
95304-06700-00
Superseded by 95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
7RH-81861-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
5PX-81846-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-25711-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, STARTING MOTOR
5PX-15511-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
99009-10800-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CORD COMP.
5PX-8183G-00-00
Superseded by 1D7-8183G-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
95304-06700-00
Superseded by 95380-06700-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR 3
4WM-15515-00-00
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT 2
4WM-15522-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, IDLER 2
4WM-15517-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHAFT 1
4WM-15521-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, IDLER 1
4WM-15512-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
STARTER ONE-WAY ASSY
4WM-15590-00-00
|
$293.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
90110-08015-00
Superseded by 91314-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHAFT
5PX-15659-00-00
Superseded by 5VN-15659-00-00
|
$245.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
90105-12005-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
KEY, WOODRUFF
90280-16053-00
Superseded by 90280-05001-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-12191-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95817-08045-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
4WM-15653-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
