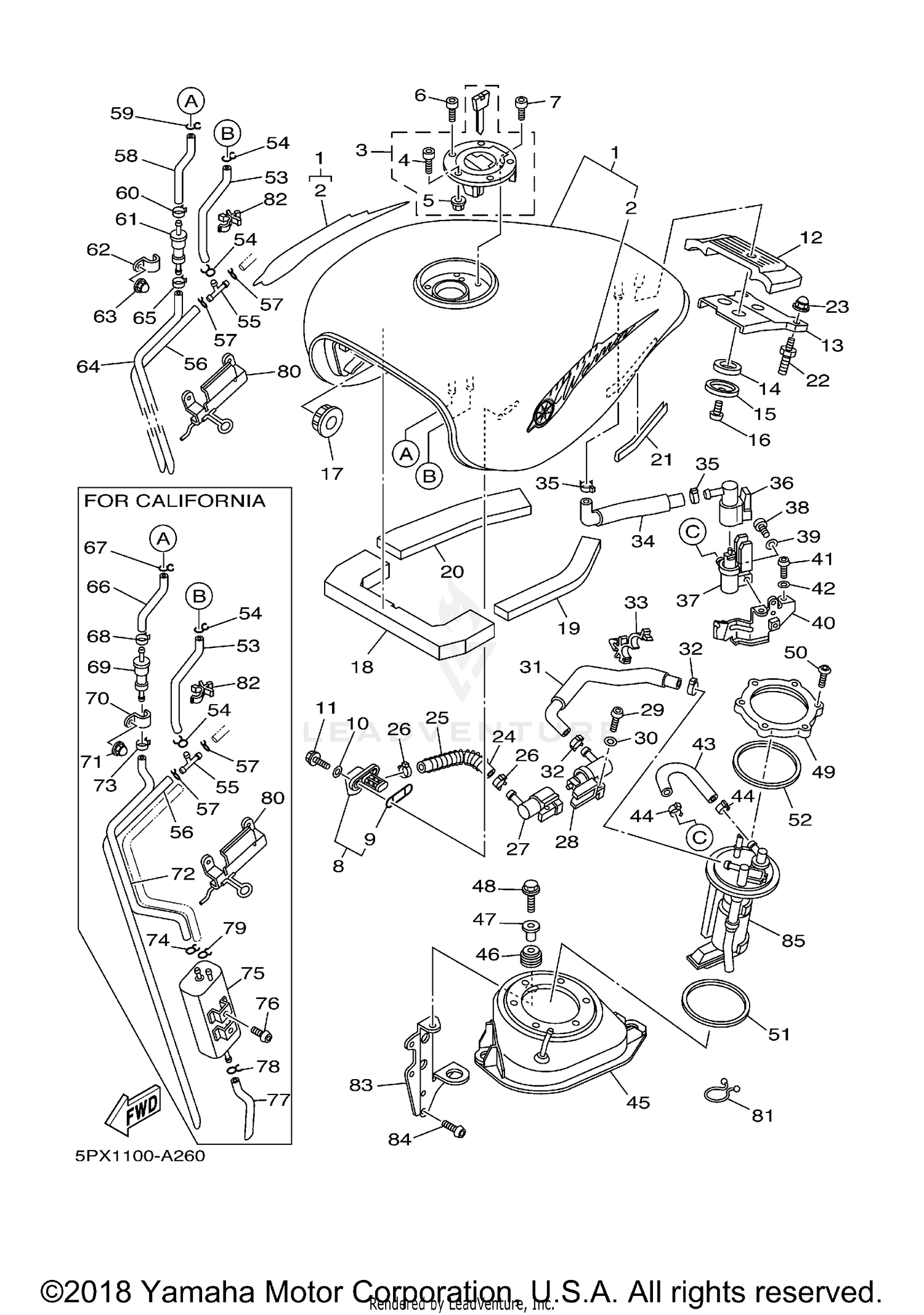

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5PX-Y2410-10-02
|
$1,050.99 | ||
|
Unavailable |
|||
|
#1
FUEL TANK COMP.
5PX-Y2410-10-01
|
$1,050.99 | ||
|
Unavailable |
|||
|
#1
FUEL TANK COMP.
5PX-Y2410-10-03
|
$1,050.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM SET
5PX-24150-10-00
|
$160.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM SET
5PX-24150-00-00
|
$168.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM SET
5PX-24150-20-00
|
$154.33 | ||
|
Unavailable |
|||
|
#3
CAP ASSY
5PX-24602-01-00
Superseded by 5PX-24602-02-00
|
$288.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
91380-05012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEX. SOCKET HEAD
91317-05010-00
|
$2.40 | ||
|
Unavailable |
|||
|
#8
FILTER ASSY
5PX-24560-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95027-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, LOCATING 2
5PX-24182-00-00
Superseded by 5PX-24182-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET, TANK FITTING
5PX-2413Y-00-00
Superseded by 5PX-2413Y-01-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, LOCATING 3
5PX-24183-00-00
Superseded by 5PX-24183-01-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL
5PX-24186-00-00
Superseded by 5PX-24186-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, BUTTON HEAD
92017-08012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 1
2YK-24181-10-00
Superseded by 4H7-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, PLATE 3
5PX-2414K-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, PLATE 1
5PX-2414H-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER, PLATE 2
5PX-2414J-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
MOLD, FUEL TANK
4GY-24188-00-00
Superseded by 1HX-24188-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT 1
5PX-24176-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, CROWN
90176-06055-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIPE, FUEL 1
5PX-24311-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING
5PX-24393-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
5PX-2411M-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
FUEL PIPE JOINT COMP. 2
5PX-24305-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
FUEL PIPE JOINT COMP. 1
5PX-24304-00-00
Superseded by 5PX-24304-01-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90101-05396-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIPE 2
5PX-24312-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
5PX-2411M-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#33
CLAMP
90464-16006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIPE 3
5PX-24313-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
5PX-2411M-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#36
FUEL PIPE JOINT COMP. 2
5PX-24305-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#37
FUEL PIPE JOINT COMP. 1
5PX-24304-10-00
Superseded by 5PX-24304-11-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT
90101-05396-00
|
$6.49 | ||
|
Unavailable |
|||
|
#39
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Unavailable |
|||
|
#40
BRACKET, CANISTOR
5PX-2419F-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, HEXAGON
97027-05012-00
Superseded by 97017-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Unavailable |
|||
|
#43
PIPE 4
5PX-24314-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLIP
5PX-2411M-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#45
TANK, FUEL
5PX-24280-00-00
|
$550.23 | ||
|
Available to order. Add to View Price |
|||
|
#46
GROMMET
90480-18003-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
COLLAR
90387-0700G-00
Superseded by 90387-0614M-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT,FLANGE
95817-06030-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#49
BRACKET, FUEL PUMP
5PX-24491-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, HEX. SOCKET BUTTON
90149-05244-00
Superseded by 90111-05026-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
O-RING
5PX-24486-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
PLATE, DAMPER
5PX-24145-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
PIPE, OVERFLOW
5PX-24318-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#55
WAY 3
90413-07007-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
PIPE 10
5PX-24321-01-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#58
PIPE 11
5PX-24322-10-00
Superseded by 5PX-24322-20-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#60
CLIP
90467-09001-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#61
ROLL OVER VALVE ASSY
5PX-24180-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
CLAMP 2
5PX-24136-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#63
NUT, CROWN
90176-05054-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#64
PIPE 12
5PX-24323-01-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
CLIP
90467-09001-00
|
$2.30 | ||
|
Unavailable |
|||
|
#66
PIPE 11
5PX-24322-10-00
Superseded by 5PX-24322-20-00
|
$31.99 | ||
|
Unavailable |
|||
|
#67
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#68
CLIP
90467-09001-00
|
$2.30 | ||
|
Unavailable |
|||
|
#69
ROLL OVER VALVE ASSY
5PX-24180-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#70
CLAMP 2
5PX-24136-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#71
NUT, CROWN
90176-05054-00
|
$6.49 | ||
|
Unavailable |
|||
|
#72
PIPE 12
5PX-24323-11-00
Superseded by 5PX-24323-20-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
CLIP
90467-09001-00
|
$2.30 | ||
|
Unavailable |
|||
|
#74
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#75
CANISTER ASSY
5PX-24170-00-00
|
$253.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
BOLT, BUTTON HEAD
90111-06007-00
Superseded by 92017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#77
PIPE 14
5PX-24325-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#78
CLIP
90467-10080-00
|
|||
|
Unavailable |
|||
|
#79
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#80
STAY
5PX-24364-00-00
Superseded by 5PX-24364-01-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#81
CLAMP
90464-23041-00
Superseded by 90464-25267-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#82
CLAMP
90464-10125-00
Superseded by 90464-10M32-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#83
STAY, SIDE COVER 1
5PX-2172E-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#84
BOLT, BUTTON HEAD
92017-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#85
FUEL PUMP COMP.
5PX-13907-00-00
Superseded by 5PX-13907-01-00
|
$866.99 | ||
|
Available to order. Add to View Price |
|||
