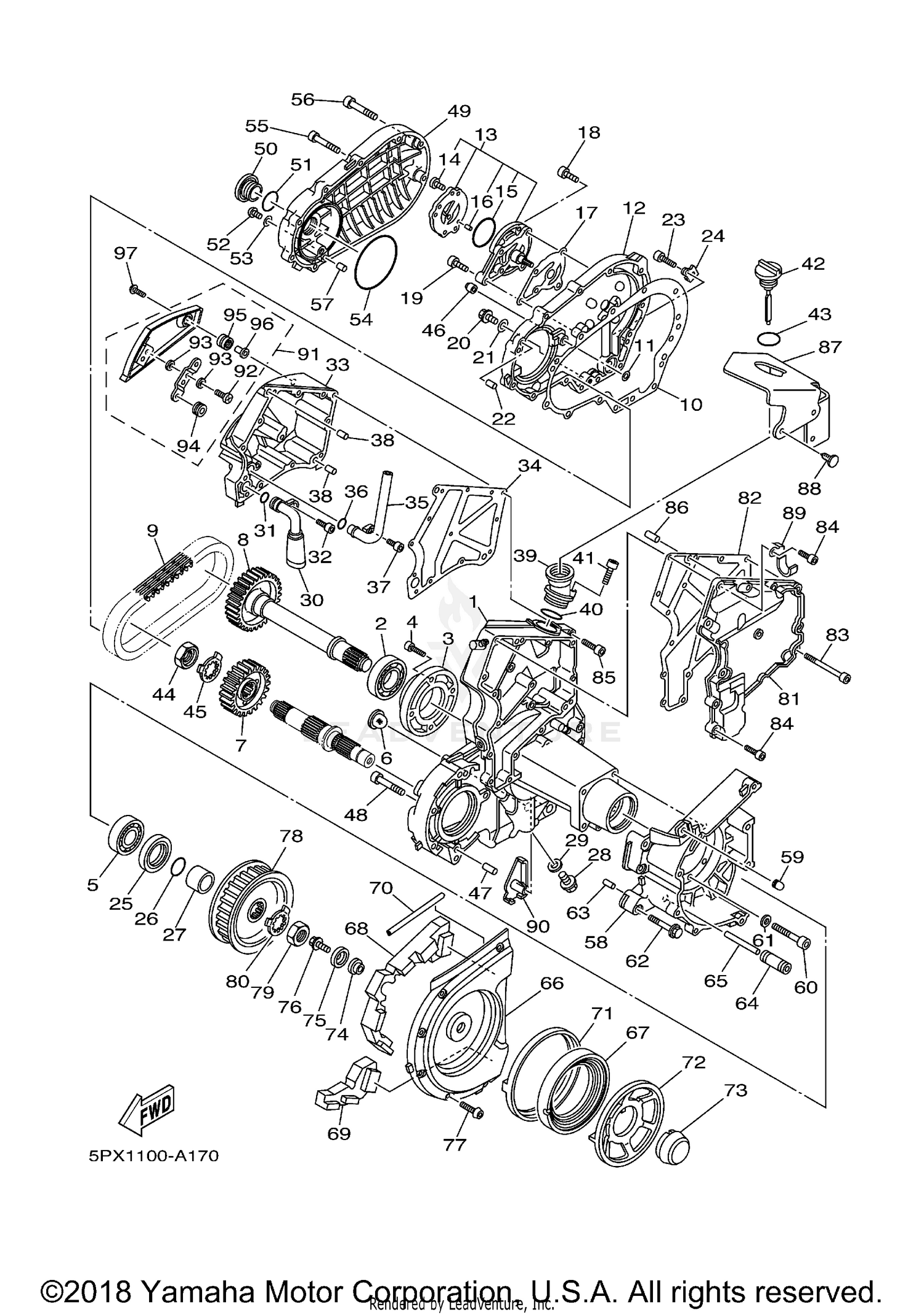

Middle Drive Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, TRANSFER 1
5PX-17541-00-00
|
$406.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-20712-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOUSING, BEARING
5PX-17521-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90110-06039-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING (B6206C3)
93306-20627-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLEANER
4WM-13286-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPROCKET, CHAIN DRIVE
4WM-17682-00-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
MIDDLE DRIVEN SHAFT ASSY
5PX-1755A-00-00
|
$366.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CHAIN, PRIMARY
4WM-16139-00-00
Superseded by 4WM-16139-01-00
|
$286.99 | ||
|
Unavailable |
|||
|
#10
GASKET 1
5PX-17929-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET 2
4WM-17931-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CASE, TRANSFER 2
5PX-17542-00-00
|
$335.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL PUMP ASSY
5PX-13100-00-00
|
$275.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT,HEX.SOCKET HEAD
91317-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-48214-00
|
$10.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL
93603-07073-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, PUMP CASE
4WM-13116-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90110-06047-00
Superseded by 90110-06138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90110-06039-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE
95814-08016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-08087-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
91314-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE 3
5PX-17691-00-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93102-40330-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-30660-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-3003P-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLUG, STRAIGHT SCREW
90340-14132-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
STRAINER 2
5PX-13421-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING
93210-14003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAP
5PX-17631-00-00
|
$228.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET, 3
5PX-17932-00-00
Superseded by 5PX-17932-02-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIPE
5PX-13582-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
O-RING
93210-14003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#37
BOLT, HEXAGON SOCKET HEAD
91317-06012-00
|
$7.49 | ||
|
Unavailable |
|||
|
#38
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Unavailable |
|||
|
#39
JOINT
5PX-13132-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
O-RING
93210-35512-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT
90110-06039-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Unavailable |
|||
|
#42
PLUG, OIL LEVEL
5PX-15362-00-00
Superseded by 5PX-15362-10-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
O-RING
93210-35512-00
|
$11.49 | ||
|
Unavailable |
|||
|
#44
NUT
90179-22004-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, LOCK
90215-26241-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT
90179-08004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Unavailable |
|||
|
#48
BOLT, HEXAGON SOCKET HEAD
91314-08050-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
COVER
5PX-15779-00-00
|
$348.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
PLUG, STRAIGHT SCREW
90340-32002-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
O-RING
93210-32172-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT, BUTTON HEAD
92014-06010-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
GASKET
90430-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
O-RING
93210-92448-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT, HEXAGON SOCKET HEAD
91314-06050-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT, HEXAGON SOCKET HEAD
91314-08055-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#57
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Unavailable |
|||
|
#58
STAY
5PX-17613-00-00
|
$236.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
SPACER 1
5PX-17654-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
BOLT
91317-10050-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#61
WASHER, PLATE
92907-10600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
BOLT, FLANGE
95824-10050-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#63
PIN
99480-10018-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
SLIDER
4WM-17653-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
PIN, DOWEL
93606-76259-00
Superseded by 93606-76002-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#66
COVER
5PX-17076-00-00
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
DAMPER, SLIDER
5PX-17655-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#68
DAMPER 2
5PX-1542B-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#69
DAMPER 3
5PX-1542C-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#70
PROTECTOR
5PX-15491-00-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#71
RING, RUBBER
5PX-15449-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
PLATE 1
5PX-17665-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
PLATE 2
5PX-17675-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#74
GROMMET
4H7-15486-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#75
WASHER
90209-06096-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#76
BOLT, FLANGE
95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#77
BOLT, HEXAGON SOCKET HEAD
91314-06030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#78
PULLEY, BELT
5PX-17651-00-00
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#79
NUT
90179-22004-00
|
$23.99 | ||
|
Unavailable |
|||
|
#80
WASHER, LOCK
90215-26241-00
|
$15.99 | ||
|
Unavailable |
|||
|
#81
CAP, HOUSING
5PX-17538-00-00
|
$167.99 | ||
|
Available to order. Add to View Price |
|||
|
#82
GASKET, 4
5PX-17933-00-00
Superseded by 5PX-17933-02-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#83
BOLT
91317-06085-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#84
BOLT, HEXAGON SOCKET HEAD
91317-06025-00
|
$5.49 | ||
|
Unavailable |
|||
|
#85
BOLT
91317-06045-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#86
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Unavailable |
|||
|
#87
PLATE, CAP
5PX-1763A-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#88
RIVET
90269-07005-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#89
CLAMP
90465-08038-00
|
$7.99 | ||
|
Unavailable |
|||
|
#90
PLATE
5PX-17446-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#91
PLATE, COVER
5PX-17471-00-00
|
$274.15 | ||
|
Available to order. Add to View Price |
|||
|
#92
SCREW, BIND
90154-06008-00
Superseded by 98907-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#93
WASHER, PLATE
90201-05015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#94
GROMMET
90480-13007-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#95
GROMMET
90480-13006-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#96
COLLAR
90387-07007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#97
BOLT, HEXAGON SOCKET HEAD
90111-06039-00
Superseded by 90110-06202-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
