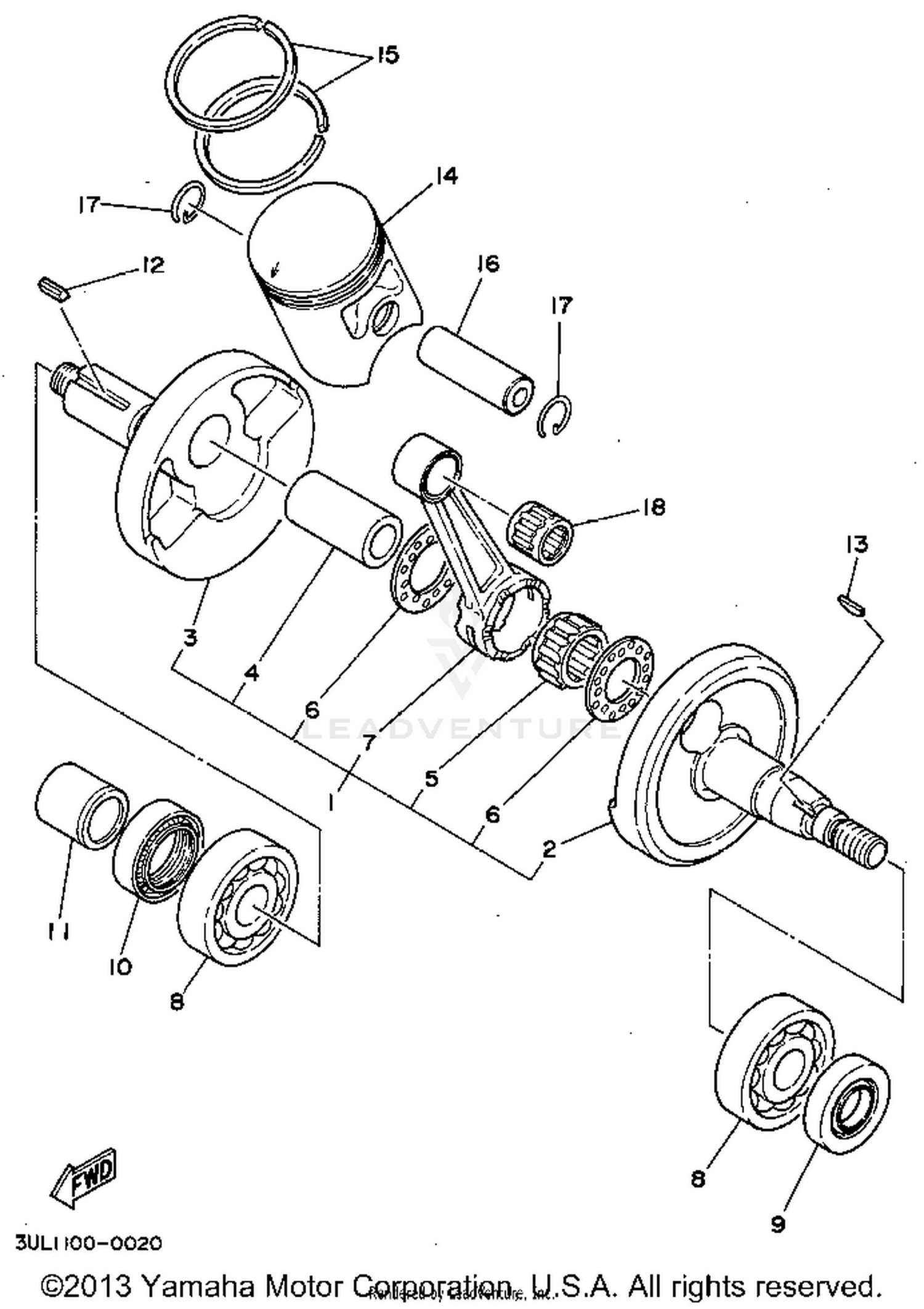

Crankshaft - Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
558-11400-00-00
|
$273.53 | ||
|
Unavailable |
|||
|
#2
CRANK 1
558-11412-00-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
558-11422-00-00
|
$110.99 | ||
|
Unavailable |
|||
|
#4
PIN, CRANK 1
5E2-11681-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93310-422E7-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
90209-22248-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD, CONNECTING
1M7-11651-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING (4ED)
93306-30439-00
Superseded by 93306-30442-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93102-20447-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL, SW-TYPE (93103-28100)
93103-28011-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR
90387-20175-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
KEY, STRAIGHT
90282-05005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PISTON (STD)
3UL-11631-00-95
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (STD)
3UL-11631-00-97
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.25MM O/S)
3UL-11635-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.50MM O/S)
3UL-11636-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.75MM O/S)
3UL-11637-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (1.00MM O/S)
3UL-11638-00-00
|
$84.99 | ||
|
Unavailable |
|||
|
#15
PISTON RING SET (STD)
3A3-11610-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (0.25MM O/S)
3A3-11610-10-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (0.50MM O/S)
3A3-11610-20-00
|
$49.99 | ||
|
Unavailable |
|||
|
#
PISTON RING SET (0.75MM O/S)
3A3-11610-30-00
|
$40.99 | ||
|
Unavailable |
|||
|
#
PISTON RING SET (1.00MM O/S)
3A3-11610-40-00
|
$40.99 | ||
|
Unavailable |
|||
|
#16
PIN, PISTON
131-11633-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
93450-15023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93310-21403-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
