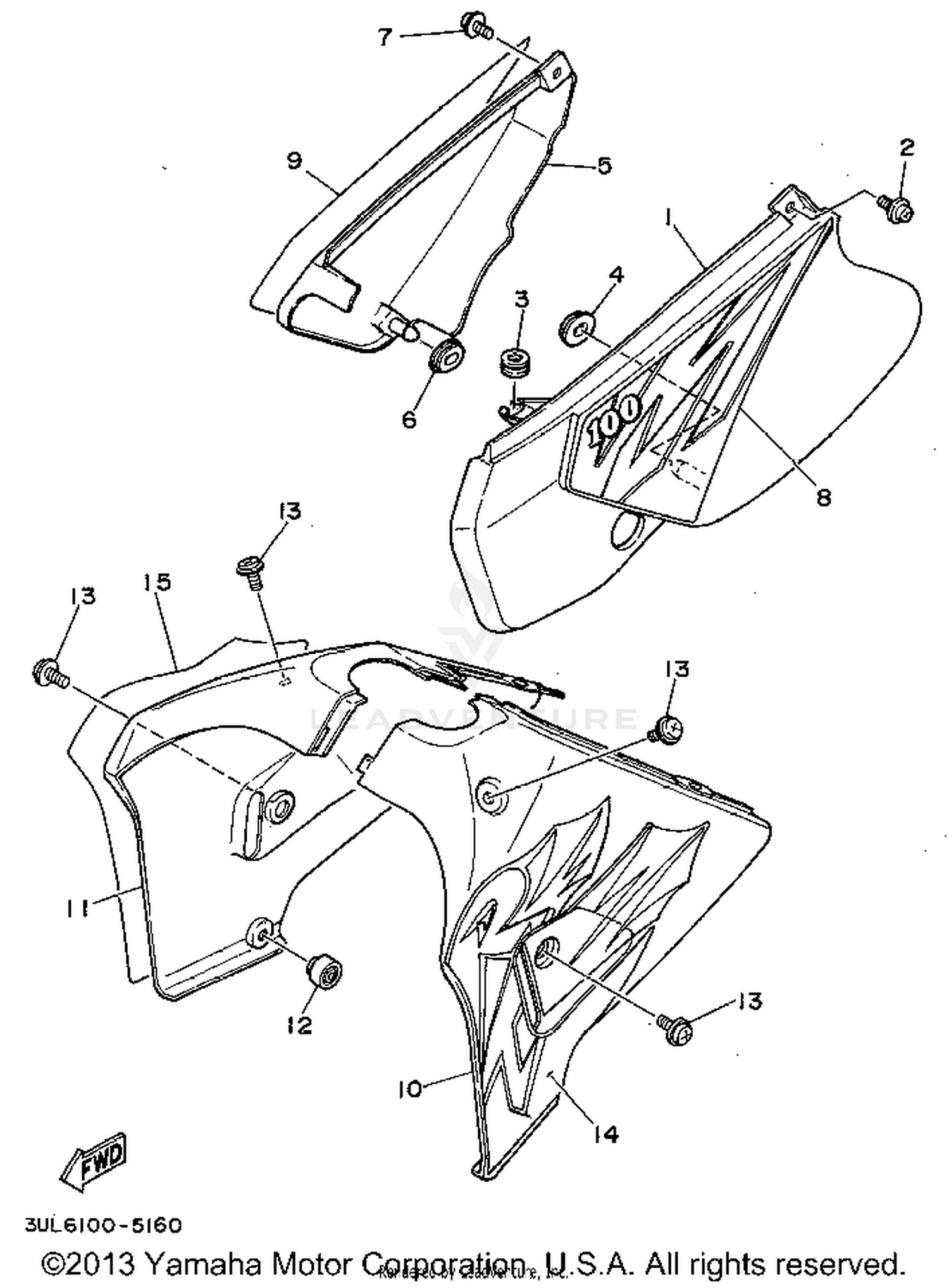

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
3UL-21711-10-98
|
$70.99 | ||
|
Unavailable |
|||
|
#2
SCREW, WITH WASHER
90159-06059-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET
90480-12325-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GROMMET
90480-01401-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SIDE 2
3UL-21721-10-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-01401-00
|
$7.49 | ||
|
Unavailable |
|||
|
#7
SCREW, WITH WASHER
90159-06059-00
|
$9.49 | ||
|
Unavailable |
|||
|
#8
GRAPHIC
3UL-2173E-50-00
Superseded by 3UL-2173E-51-00
|
$76.99 | ||
|
Unavailable |
|||
|
#9
GRAPHIC
3UL-2173F-50-00
Superseded by 3UL-2173F-51-00
|
$52.99 | ||
|
Unavailable |
|||
|
#10
SCOOP, AIR 1
3UL-2137W-20-00
|
$58.99 | ||
|
Unavailable |
|||
|
#11
SCOOP, AIR 2
3UL-2137X-20-00
|
$65.99 | ||
|
Unavailable |
|||
|
#12
DAMPER, LOCATING 1
3JD-24181-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#13
SCREW, WITH WASHER
90159-06160-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GRAPHIC SET 1
3UL-2173L-20-00
|
$99.99 | ||
|
Unavailable |
|||
|
#15
GRAPHIC SET 2
3UL-2174L-20-00
|
$96.99 | ||
|
Unavailable |
|||
