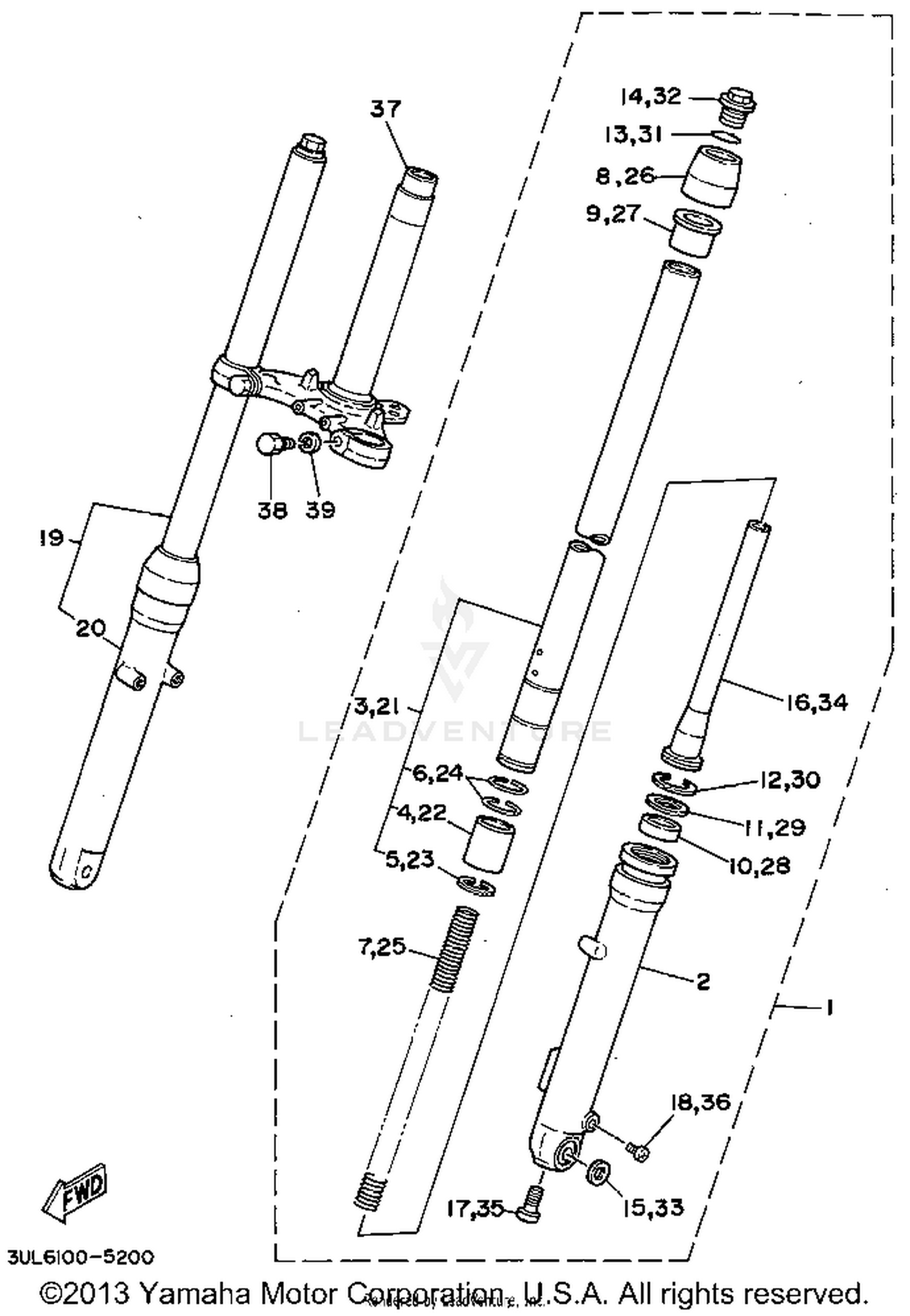

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY (L.H)
3UL-23102-01-00
Superseded by 3UL-23102-02-00
|
$322.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (LEFT)
1T9-23126-00-35
|
$201.99 | ||
|
Unavailable |
|||
|
#3
TUBE, INNER 1
3UL-23124-01-00
|
$130.99 | ||
|
Unavailable |
|||
|
#4
PISTON, FRONT FORK
462-23171-02-00
|
$25.99 | ||
|
Unavailable |
|||
|
#5
CIRCLIP
462-23183-02-00
|
$6.99 | ||
|
Unavailable |
|||
|
#6
RING, PISTON
462-23157-02-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
SPRING, FRONT FORK
3UL-23141-01-00
|
$22.99 | ||
|
Unavailable |
|||
|
#8
SEAL, DUST
462-23144-02-00
|
$17.99 | ||
|
Unavailable |
|||
|
#9
METAL, SLIDE 1
462-23125-02-00
|
$14.49 | ||
|
Unavailable |
|||
|
#10
OIL SEAL (5R6)
462-23145-02-00
Superseded by 93110-27010-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, OIL SEAL
462-23146-02-00
|
$4.95 | ||
|
Unavailable |
|||
|
#12
CLIP, OIL SEAL
462-23156-02-00
|
$9.49 | ||
|
Unavailable |
|||
|
#13
O-RING
3R0-23147-00-00
Superseded by 93210-18322-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, CAP
3UL-23111-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#15
WASHER, SPECIAL
462-23392-02-00
|
$5.99 | ||
|
Unavailable |
|||
|
#16
CYLINDER COMP., FRONT FORK
462-23170-02-00
|
$87.99 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98580-06025-00
Superseded by 97885-06025-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, DRAIN
451-23119-01-00
|
$5.99 | ||
|
Unavailable |
|||
|
#19
FRONT FORK ASSEMBLY (R.H)
3UL-23103-01-00
Superseded by 3UL-23103-02-00
|
$322.99 | ||
|
Unavailable |
|||
|
#20
TUBE, OUTER (RIGHT)
1T9-23136-00-35
|
$200.99 | ||
|
Unavailable |
|||
|
#21
TUBE, INNER 1
3UL-23124-01-00
|
$130.99 | ||
|
Unavailable |
|||
|
#22
PISTON, FRONT FORK
462-23171-02-00
|
$25.99 | ||
|
Unavailable |
|||
|
#23
CIRCLIP
462-23183-02-00
|
$6.99 | ||
|
Unavailable |
|||
|
#24
RING, PISTON
462-23157-02-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
SPRING, FRONT FORK
3UL-23141-01-00
|
$22.99 | ||
|
Unavailable |
|||
|
#26
SEAL, DUST
462-23144-02-00
|
$17.99 | ||
|
Unavailable |
|||
|
#27
METAL, SLIDE 1
462-23125-02-00
|
$14.49 | ||
|
Unavailable |
|||
|
#28
OIL SEAL (5R6)
462-23145-02-00
Superseded by 93110-27010-00
|
$24.99 | ||
|
Unavailable |
|||
|
#29
WASHER, OIL SEAL
462-23146-02-00
|
$4.95 | ||
|
Unavailable |
|||
|
#30
CLIP, OIL SEAL
462-23156-02-00
|
$9.49 | ||
|
Unavailable |
|||
|
#31
O-RING
3R0-23147-00-00
Superseded by 93210-18322-00
|
$5.49 | ||
|
Unavailable |
|||
|
#32
BOLT, CAP
3UL-23111-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#33
WASHER, SPECIAL
462-23392-02-00
|
$5.99 | ||
|
Unavailable |
|||
|
#34
CYLINDER COMP., FRONT FORK
462-23170-02-00
|
$87.99 | ||
|
Unavailable |
|||
|
#35
SCREW, PAN HEAD
98580-06025-00
Superseded by 97885-06025-00
|
$4.70 | ||
|
Unavailable |
|||
|
#36
PLUG, DRAIN
451-23119-01-00
|
$5.99 | ||
|
Unavailable |
|||
|
#37
UNDER BRACKET COMP.
1T9-23340-00-90
|
$297.99 | ||
|
Unavailable |
|||
|
#38
BOLT (8J7) (97303-10030-00)
97013-10030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, SPRING
92901-10100-00
Superseded by 92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
