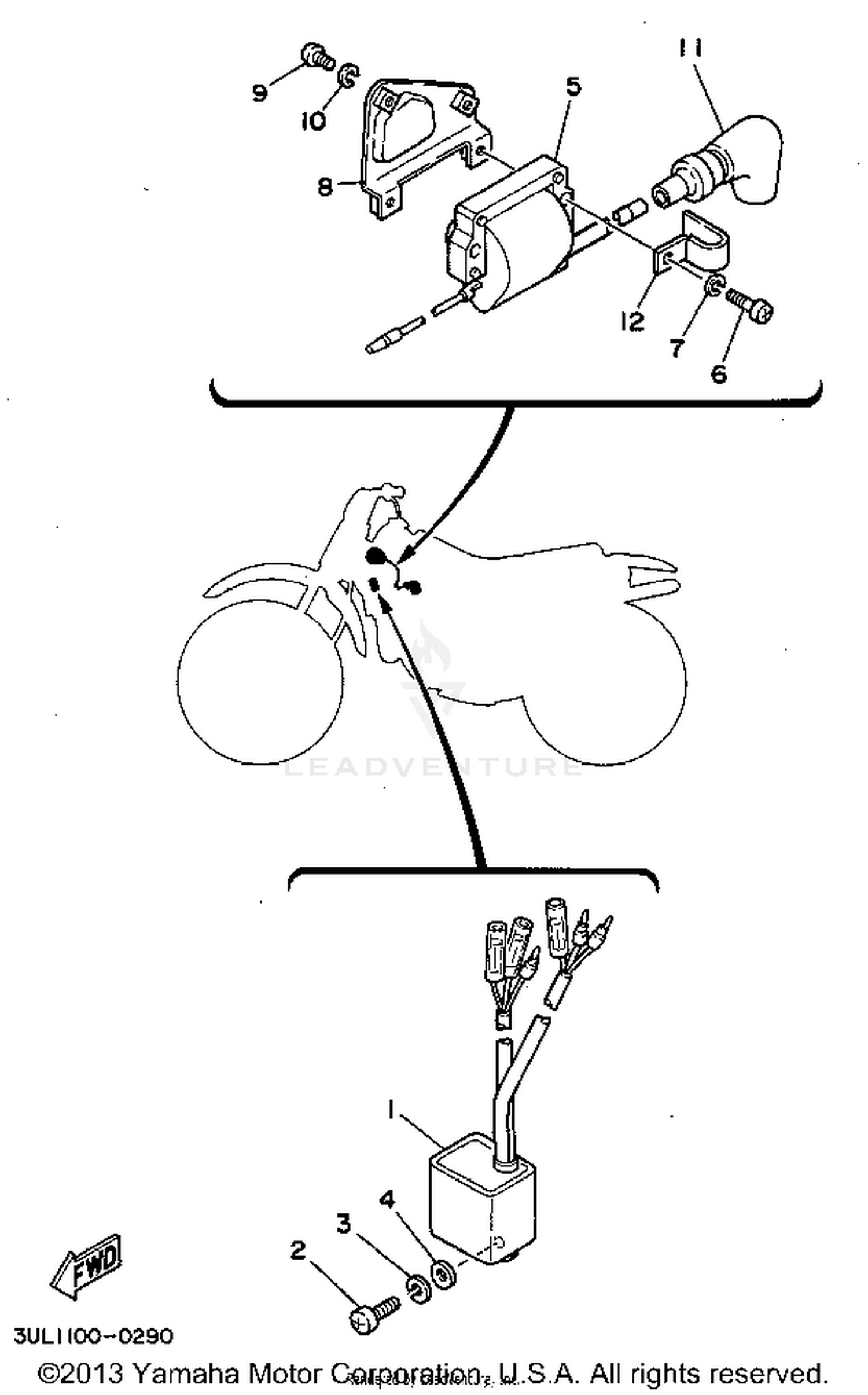

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSEMBLY
3T0-85540-20-00
|
$222.87 | ||
|
Unavailable |
|||
|
#2
SCREW,PAN HEAD
98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
IGNITION COIL ASSEMBLY
5G4-82310-40-00
Superseded by 355-82310-40-00
|
$187.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98507-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#8
BRACKET, IGNITION COIL
336-82316-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#9
SCREW,PAN
98507-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#11
PLUG CAP ASSY
81E-82370-20-00
Superseded by 8DG-82370-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90462-05005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
