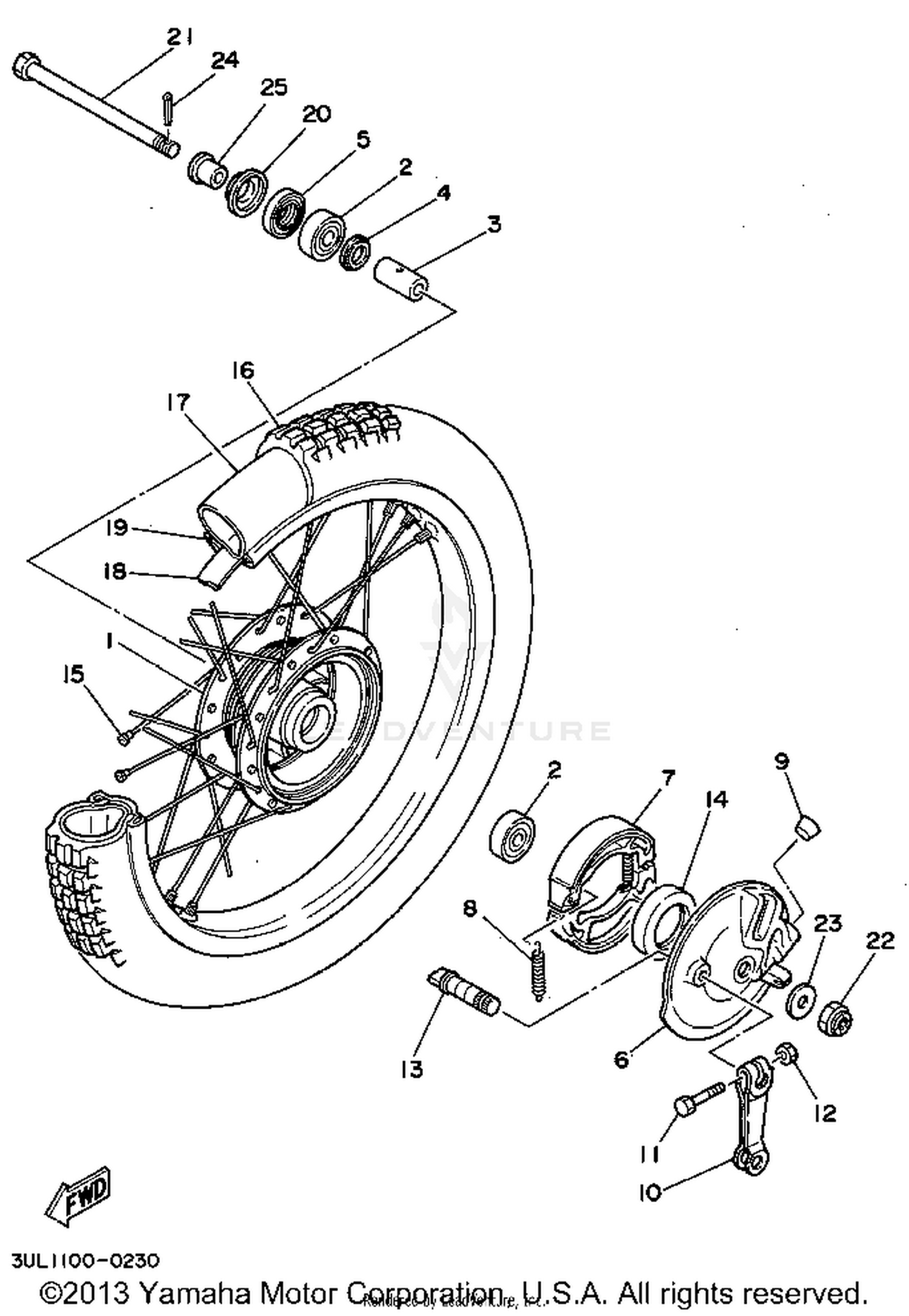

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
248-25111-00-98
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
90560-12261-00
Superseded by 90560-12138-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLANGE, SPACER
109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93102-18008-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, BRAKE SHOE
4J8-25121-00-98
|
$110.99 | ||
|
Unavailable |
|||
|
#7
BRAKE SHOE KIT
4BE-W2536-00-00
Superseded by 4BE-W253E-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-15260-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG
90338-18014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, CAMSHAFT 1
2N3-25155-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
95307-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAMSHAFT
3Y6-25351-00-00
Superseded by 4GL-25351-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93105-47007-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPOKE SET, FRONT
276-25104-40-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TIRE (2.50-18)
94125-18369-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE (2.50-18)
94225-18194-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, RIM (2.50-18)
94345-18081-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
RIM (1.40-18)
94414-18007-00
Superseded by 94414-18545-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, HUB DUST
481-25118-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, WITH HOLE
90102-12015-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CASTLE
90171-12058-00
|
$2.90 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
90201-122A7-00
Superseded by 90201-12047-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-12616-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
