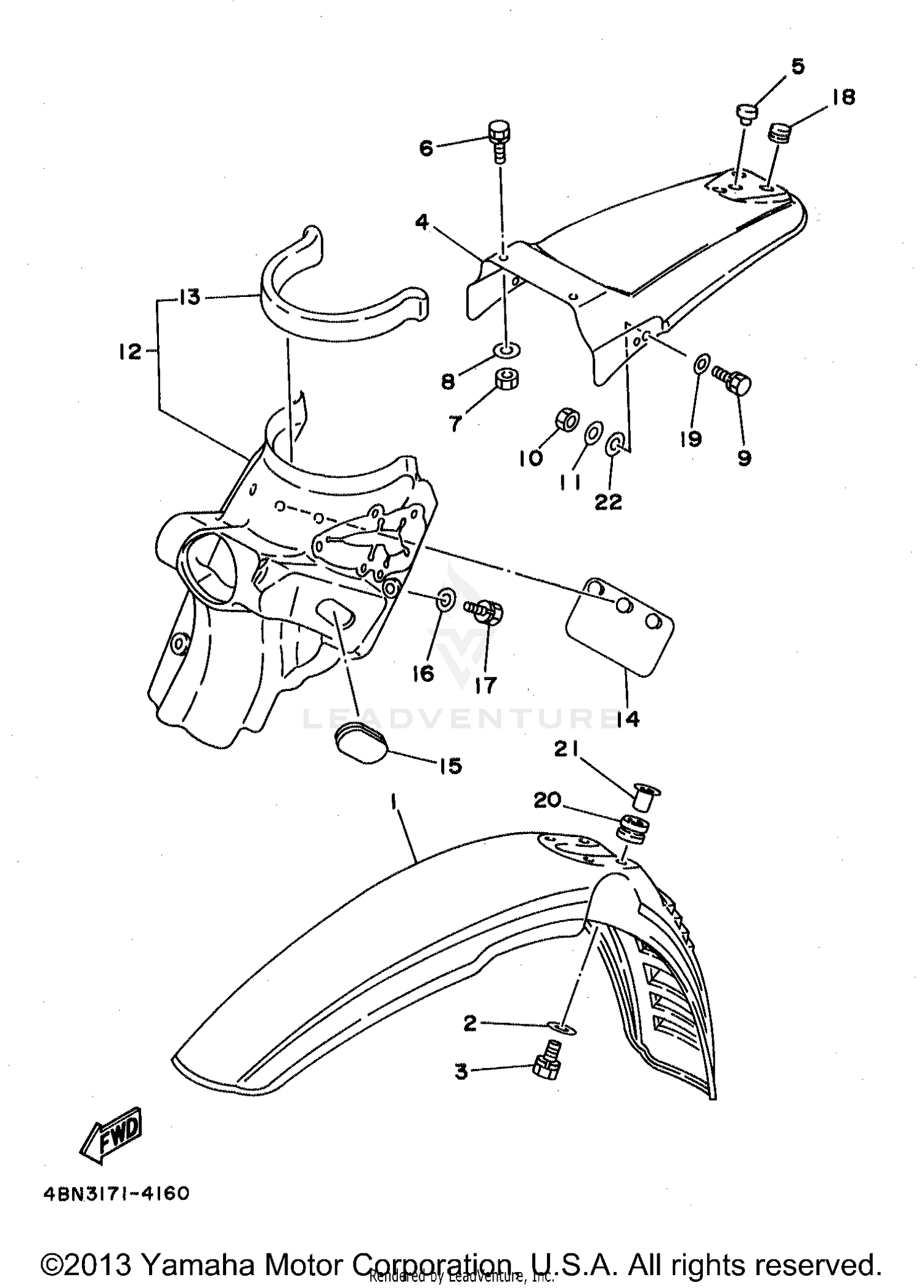

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
4BN-F1511-20-00
|
$67.99 | ||
|
Unavailable |
|||
|
#2
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
97502-06425-09
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER, REAR
58W-F1611-50-00
|
$49.99 | ||
|
Unavailable |
|||
|
#5
GROMMET
90480-16800-09
Superseded by 90480-16800-00
|
$3.55 | ||
|
Unavailable |
|||
|
#6
BOLT, WITH WASHER
97502-06414-09
Superseded by 9750N-06414-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, HEXAGON
95302-06600-09
Superseded by 95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#9
BOLT, WITH WASHER
97502-08616-09
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
98802-08200-09
Superseded by 95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
92907-08200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
MUD GUARD COMP. (2TW-F1620-00-0
2TW-F1620-00-00
Superseded by 23K-F1620-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#13
DAMPER 2
2A6-21639-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FLAP
1M1-21621-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-01254-00
|
$10.49 | ||
|
Unavailable |
|||
|
#16
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#17
BOLT, HEXAGON DEEP R
97502-06416-09
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
90480-16800-09
Superseded by 90480-16800-00
|
$3.55 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
92902-08600-09
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
90480-14198-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
