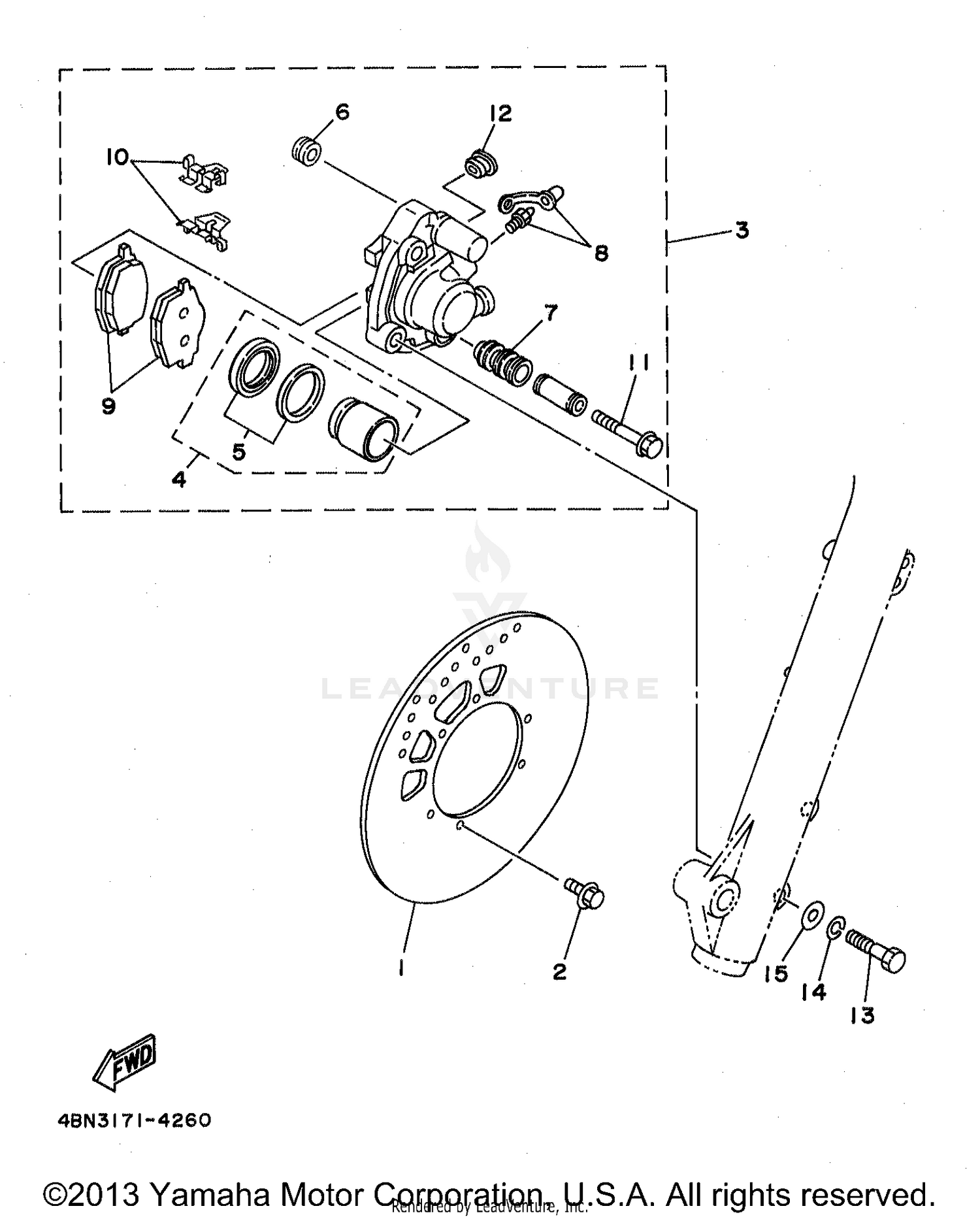

Front Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE (LEFT)
4JG-2582T-00-00
Superseded by 5XT-2582T-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90109-06823-09
Superseded by 90109-06757-00
|
$1.40 | ||
|
Unavailable |
|||
|
#3
CALIPER ASSY (LEFT)
3BN-2580T-10-00
Superseded by 3BN-2580T-11-00
|
$295.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
34X-W0057-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
34X-W0047-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT 2
5R2-25937-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT 2
34X-25937-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE PAD KIT
3BN-W0045-01-00
Superseded by 3BN-25805-02-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUPPORT, PAD
34X-25919-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
34X-25926-00-00
Superseded by 5KN-25926-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, INDICATOR
34X-25845-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-10W04-09
Superseded by 90105-10634-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92902-10100-09
Superseded by 92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
92902-10200-09
|
$1.65 | ||
|
Unavailable |
|||
