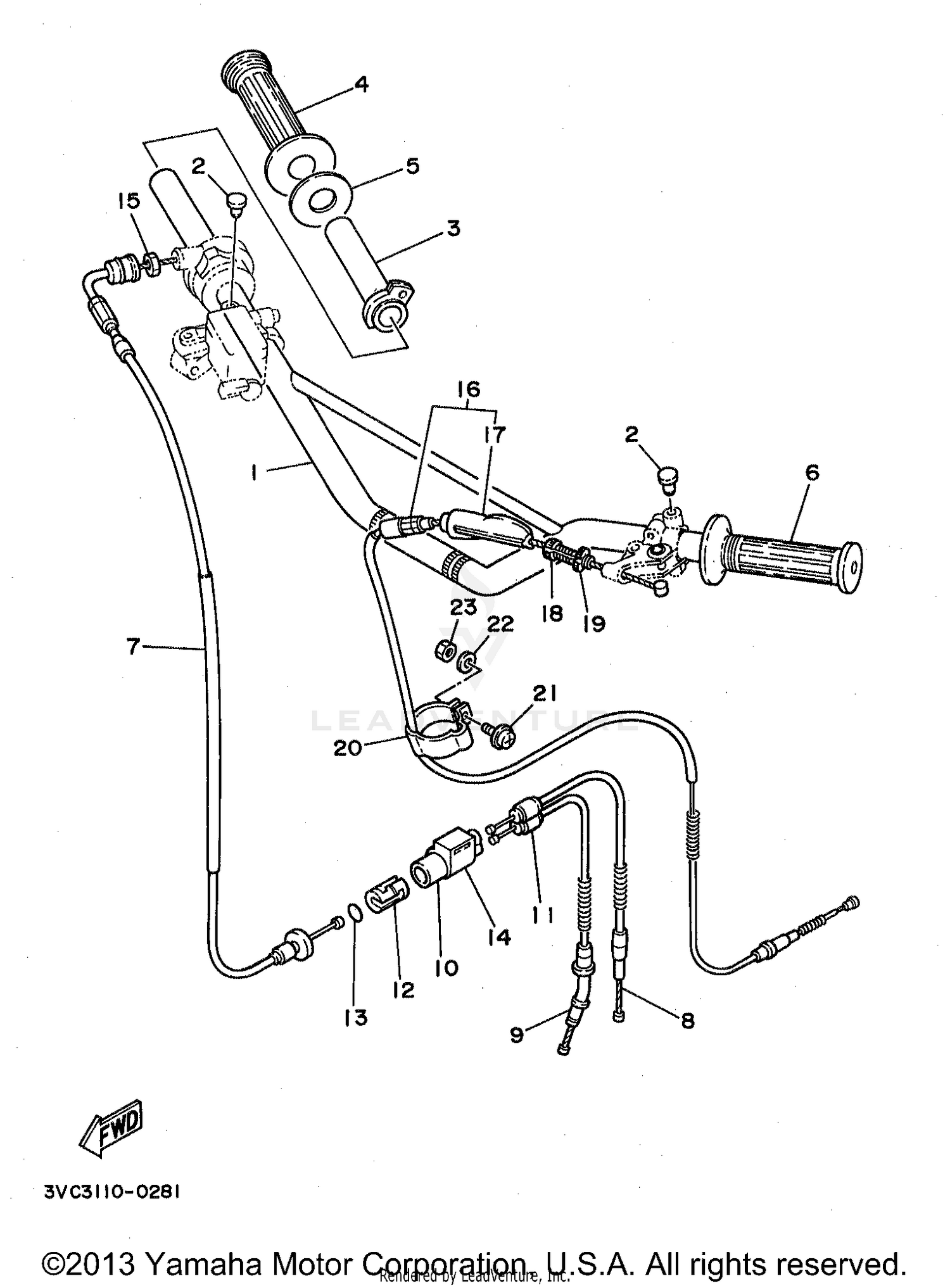

Steering Handle - Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
3VC-F6111-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#2
PLUG
90338-09012-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, THROTTLE GUIDE
434-26243-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GRIP RH (R.H.)
1A0-26242-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, LEAF
1M1-26249-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRIP LH (L.H.)
1E6-26241-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, THROTTLE 1
5L9-F6311-01-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE, THROTTLE 2
5L9-F6312-02-00
|
$22.99 | ||
|
Unavailable |
|||
|
#9
CABLE, PUMP
5L9-F6321-03-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CONNECTOR, CABLE
5L9-F6261-00-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP
5L9-F6272-00-00
|
$2.35 | ||
|
Unavailable |
|||
|
#12
PIECE, CONNECTING
5L9-F6263-01-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93210-10118-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE, WIRE
5L9-F6339-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#15
NUT, HEXAGON
90170-10038-00
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE, CLUTCH
5L9-F6335-01-00
|
$45.99 | ||
|
Unavailable |
|||
|
#17
COVER, HANDLE LEVER 1
498-26372-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.94 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
2A6-26397-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD WITH WASHER
97602-05218-09
|
$3.85 | ||
|
Unavailable |
|||
|
#22
WASHER, PLAIN
92902-05200-09
Superseded by 92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95302-05600-09
Superseded by 95380-05600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
