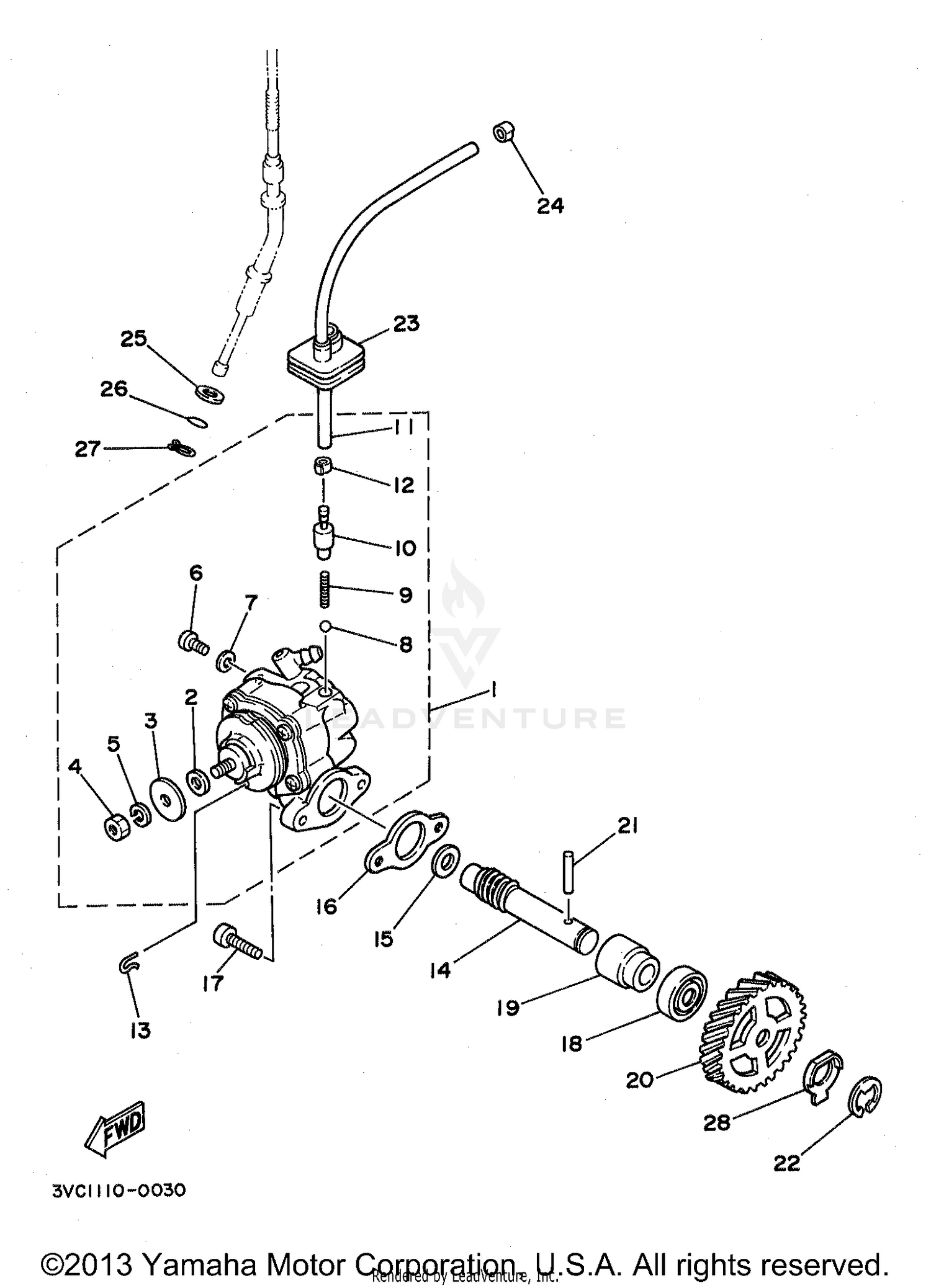

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP ASSEMBLY
525-13101-01-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHIM, PLUNGER
137-13137-00-10
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, ADJUSTING
137-13138-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
95301-05600-00
Superseded by 95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92901-05100-00
Superseded by 92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, BIND
98901-04008-00
Superseded by 98980-04008-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-04004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BALL 5-32
93505-32002-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-02217-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NOZZLE
402-13552-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE (L200)
90445-05278-00
Superseded by 90445-05N13-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90468-02033-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
363-13133-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHAFT, WORM
2H3-E3175-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-08624-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, PUMP CASE
3MT-13116-00-00
Superseded by 126-13116-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98507-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL, S-TYPE
93101-10002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
METAL, WORM SHAFT OUTER
2H3-E3176-00-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, PUMP DRIVE
2A6-13178-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, SPRING
91609-25020-00
|
$1.25 | ||
|
Unavailable |
|||
|
#22
CIRCLIP
99001-08600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER, OIL PIPE
5L9-E3174-00-00
|
$1.95 | ||
|
Unavailable |
|||
|
#24
CLIP
90468-02033-00
|
$7.49 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
92907-08600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-07100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90468-08086-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, LOCK
90215-10253-00
|
$5.49 | ||
|
Unavailable |
|||
