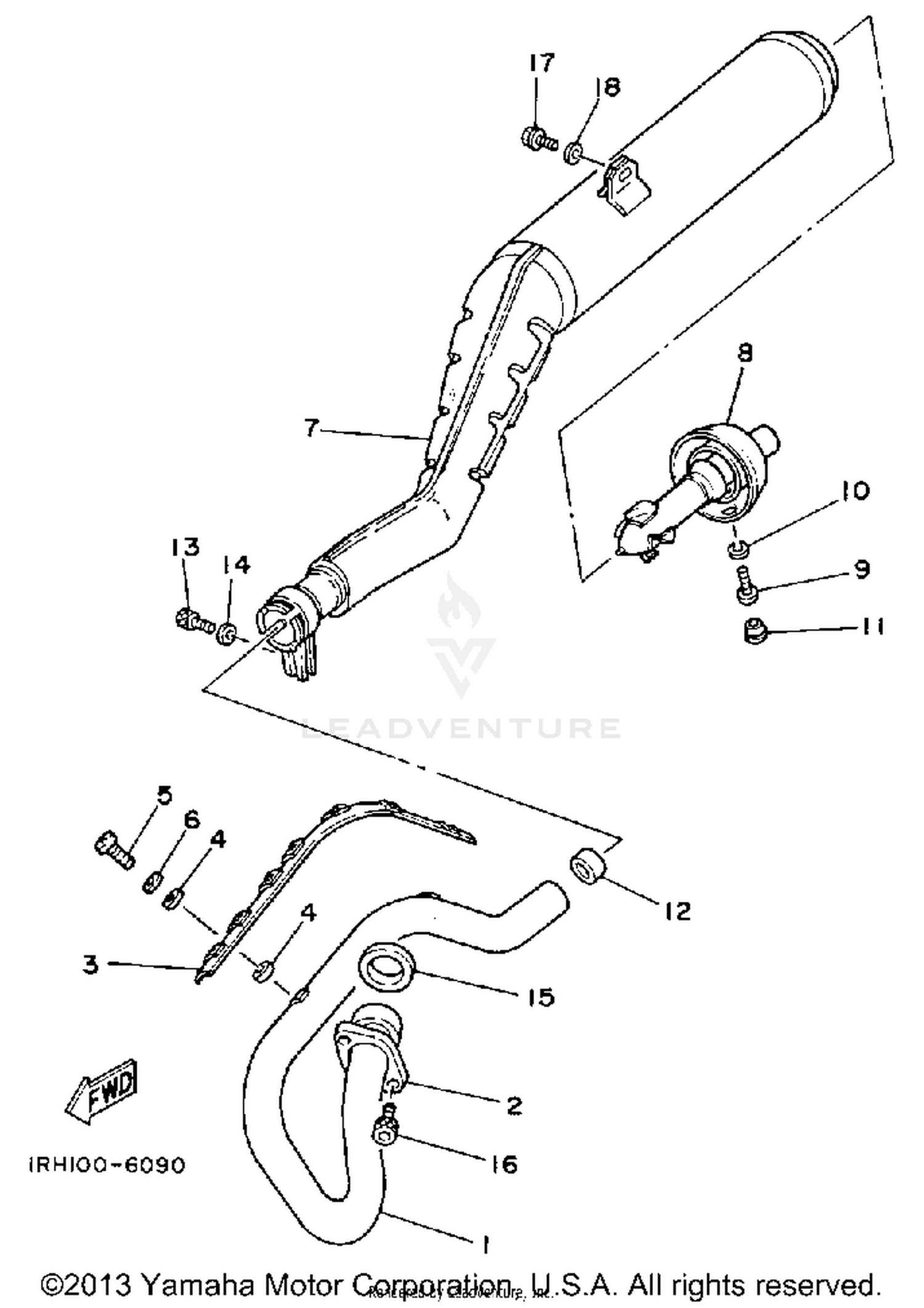

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST L
1KH-14611-01-00
|
$256.99 | ||
|
Unavailable |
|||
|
#2
NUT, RING
5H0-14612-00-00
Superseded by 5H0-14612-01-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, EXHAUST PIPE
54G-14628-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAPPING
90164-06017-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, WAVE
90206-06090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
MUFFLER L
1RH-14711-00-00
|
$262.99 | ||
|
Unavailable |
|||
|
#8
PIPE, OUTLET
1RH-14752-00-00
Superseded by 1RH-14752-01-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-14153-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, MUFFLER
1JK-14714-00-00
Superseded by 3YF-14714-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
91316-08025-00
Superseded by 91317-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92906-08600-00
Superseded by 92907-08600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, EXHAUST PIPE
4BE-14613-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
