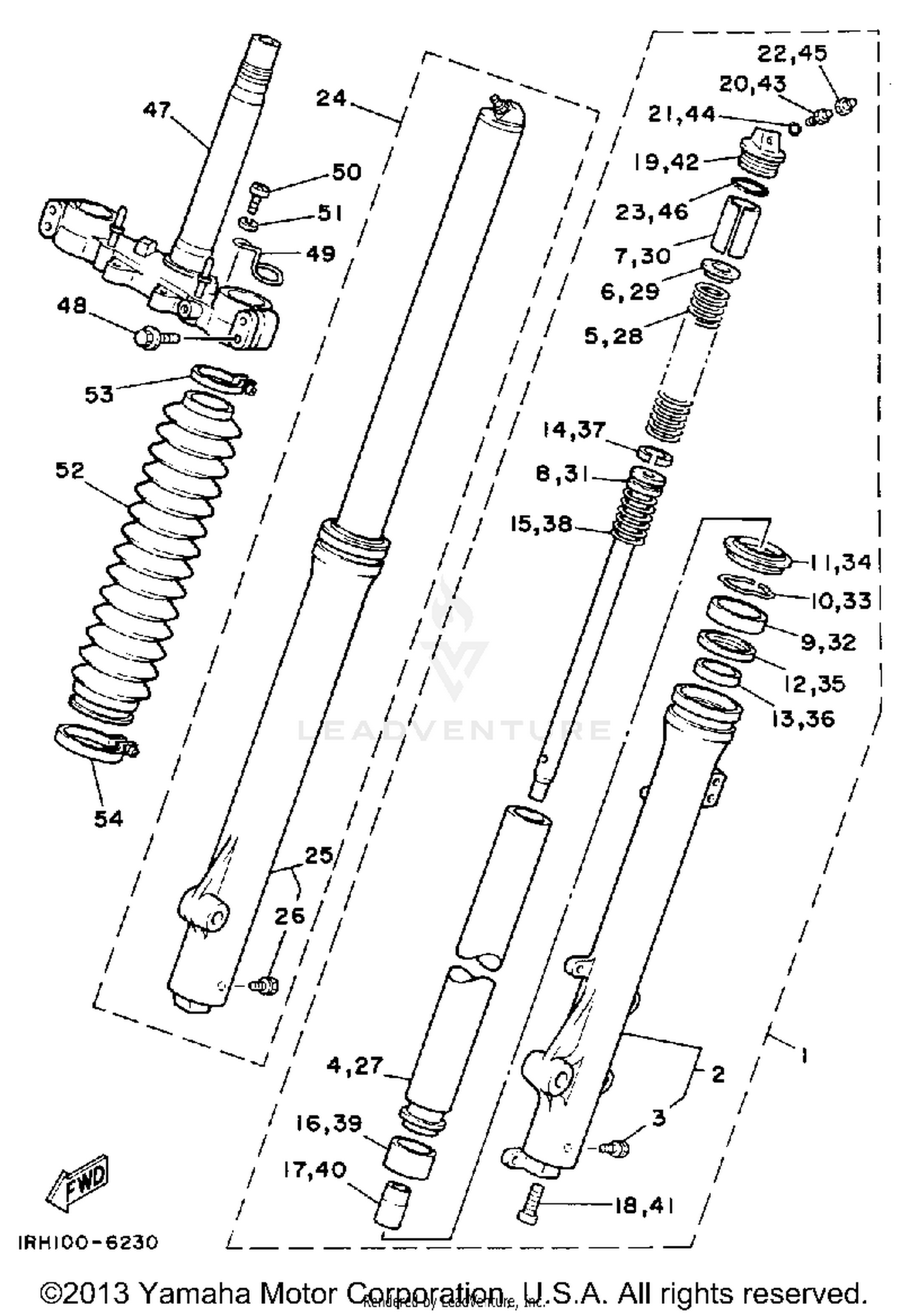

1986 Yamaha TT225S FRONT FORK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRT. FORK ASSEMBLY LH
1RH-23102-00-00
|
$356.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (LEFT)
34X-23126-00-38
|
$196.99 | ||
|
Unavailable |
|||
|
#3
PLUG, DRAIN
2A6-23119-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
INNER TUBE COMP.COMP. 1
34X-23110-00-00
|
$276.99 | ||
|
Unavailable |
|||
|
#5
SPRING, FRT. FORK
1RH-23141-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#6
SEAT, SPRING UPPER
34X-23142-00-00
|
$3.80 | ||
|
Unavailable |
|||
|
#7
SPACER
1RH-23118-00-00
|
$4.10 | ||
|
Unavailable |
|||
|
#8
PISTON, FRONT FORK
1RH-23171-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#9
OIL SEAL
1KH-23145-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING, SNAP
34X-23156-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, DUST
1KH-23144-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, SPACER
1KH-23147-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
METAL, SLIDE 1
34X-23125-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, PISTON
34X-23157-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, REBOUND
34X-23151-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER, OIL LOCK
1KH-23166-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
3M7-23181-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, CAP
3H3-23111-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#20
AIR VALVE
5K7-23190-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#21
O-RING
3H3-23147-00-00
Superseded by 93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, AIR VALVE
27H-23184-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#23
O-RING
27H-23147-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
FRT. FORK ASSEMBLY RH
1RH-23103-00-00
|
$345.99 | ||
|
Unavailable |
|||
|
#25
TUBE, OUTER (RIGHT)
34X-23136-00-38
|
$189.99 | ||
|
Unavailable |
|||
|
#26
PLUG, DRAIN
2A6-23119-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#27
INNER TUBE COMP.COMP. 1
34X-23110-00-00
|
$276.99 | ||
|
Unavailable |
|||
|
#28
SPRING, FRT. FORK
1RH-23141-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#29
SEAT, SPRING UPPER
34X-23142-00-00
|
$3.80 | ||
|
Unavailable |
|||
|
#30
SPACER
1RH-23118-00-00
|
$4.10 | ||
|
Unavailable |
|||
|
#31
PISTON, FRONT FORK
1RH-23171-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#32
OIL SEAL
1KH-23145-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#33
RING, SNAP
34X-23156-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
SEAL, DUST
1KH-23144-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#35
SEAL, SPACER
1KH-23147-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#36
METAL, SLIDE 1
34X-23125-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#37
RING, PISTON
34X-23157-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#38
SPRING, REBOUND
34X-23151-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#39
METAL, SLIDE 2
34X-23135-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPACER, OIL LOCK
1KH-23166-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
3M7-23181-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#42
BOLT, CAP
3H3-23111-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#43
AIR VALVE
5K7-23190-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#44
O-RING
3H3-23147-00-00
Superseded by 93210-06632-00
|
$7.49 | ||
|
Unavailable |
|||
|
#45
CAP, AIR VALVE
27H-23184-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#46
O-RING
27H-23147-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#47
UNDER BRACKET COMPCOMP
1RH-23340-00-90
|
$482.99 | ||
|
Unavailable |
|||
|
#48
BOLT 1
34X-23346-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#49
GUIDE, CABLE
10V-2331E-02-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#51
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOOT
34X-23191-00-00
|
$119.99 | ||
|
Unavailable |
|||
|
#53
BAND
34X-23192-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
BAND
34X-2311E-00-00
Superseded by 3RW-23192-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#816
METAL, SLIDE 2
34X-23135-00-00
|
$20.99 | ||
|
Unavailable |
|||
