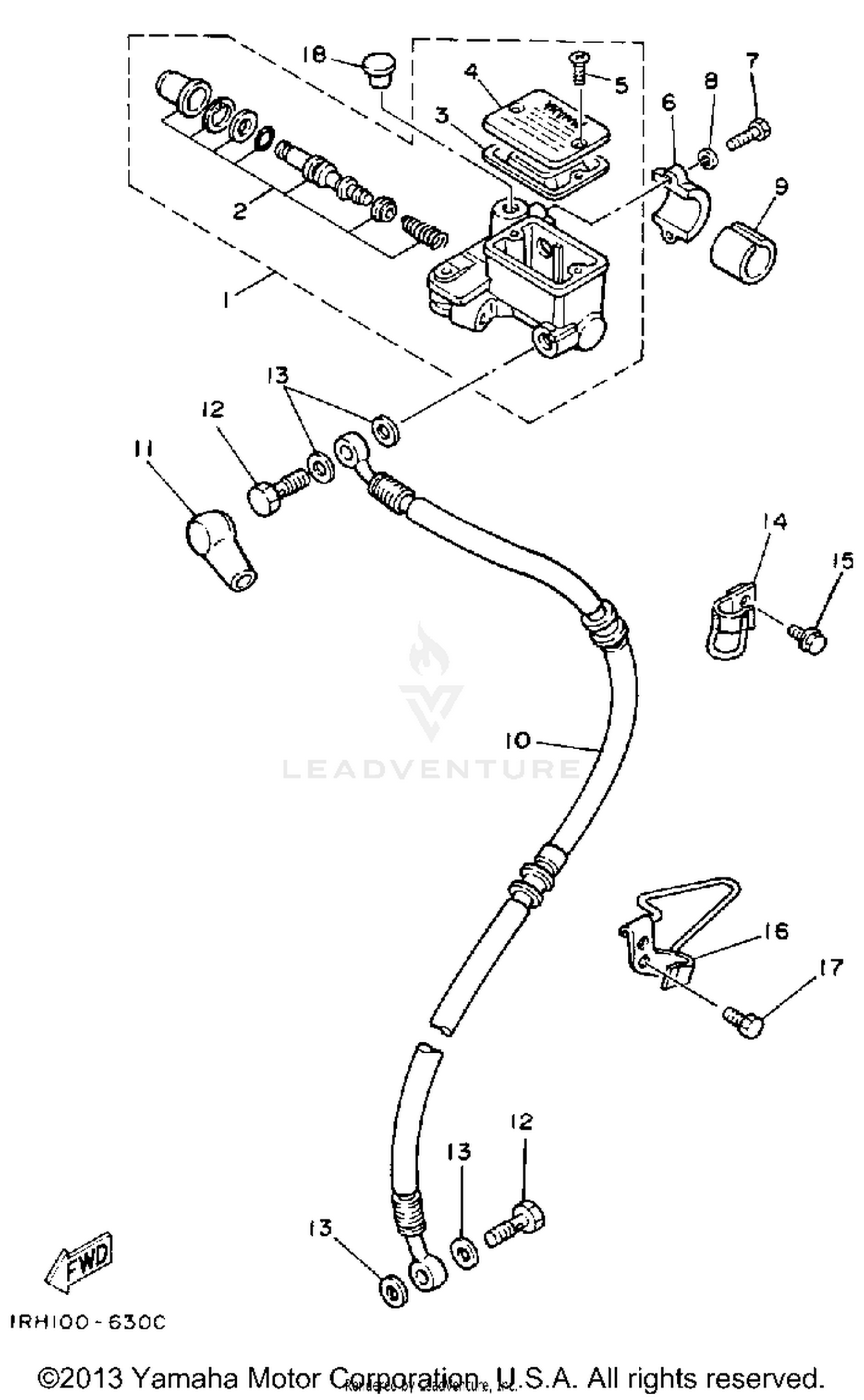

Front Master Cyinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASSY
59X-25850-00-00
Superseded by 5CG-2583T-12-00
|
$222.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYL KIT,MASTER
59X-W0041-00-00
Superseded by 5VK-25807-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, DIAPHRAGM
55U-25854-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, RESERVOIR (FRON
2KF-25852-01-00
Superseded by 2KF-25852-02-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW,PANHEAD
98506-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97016-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-224L9-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, BRAKE 1
34X-25872-01-00
Superseded by 99999-02568-00
|
$160.99 | ||
|
Unavailable |
|||
|
#11
BOOT, MASTER CYLINDER
4L0-25862-00-00
Superseded by 4L0-25862-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, UNION
90401-10034-00
Superseded by 90401-10159-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, BRKE HOSE 1
34X-25875-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#15
BOLT, WITH WASHER
90119-06108-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, BRAKE HOSE 2
34X-25876-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
91316-06010-00
Superseded by 91317-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG
90338-09012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
