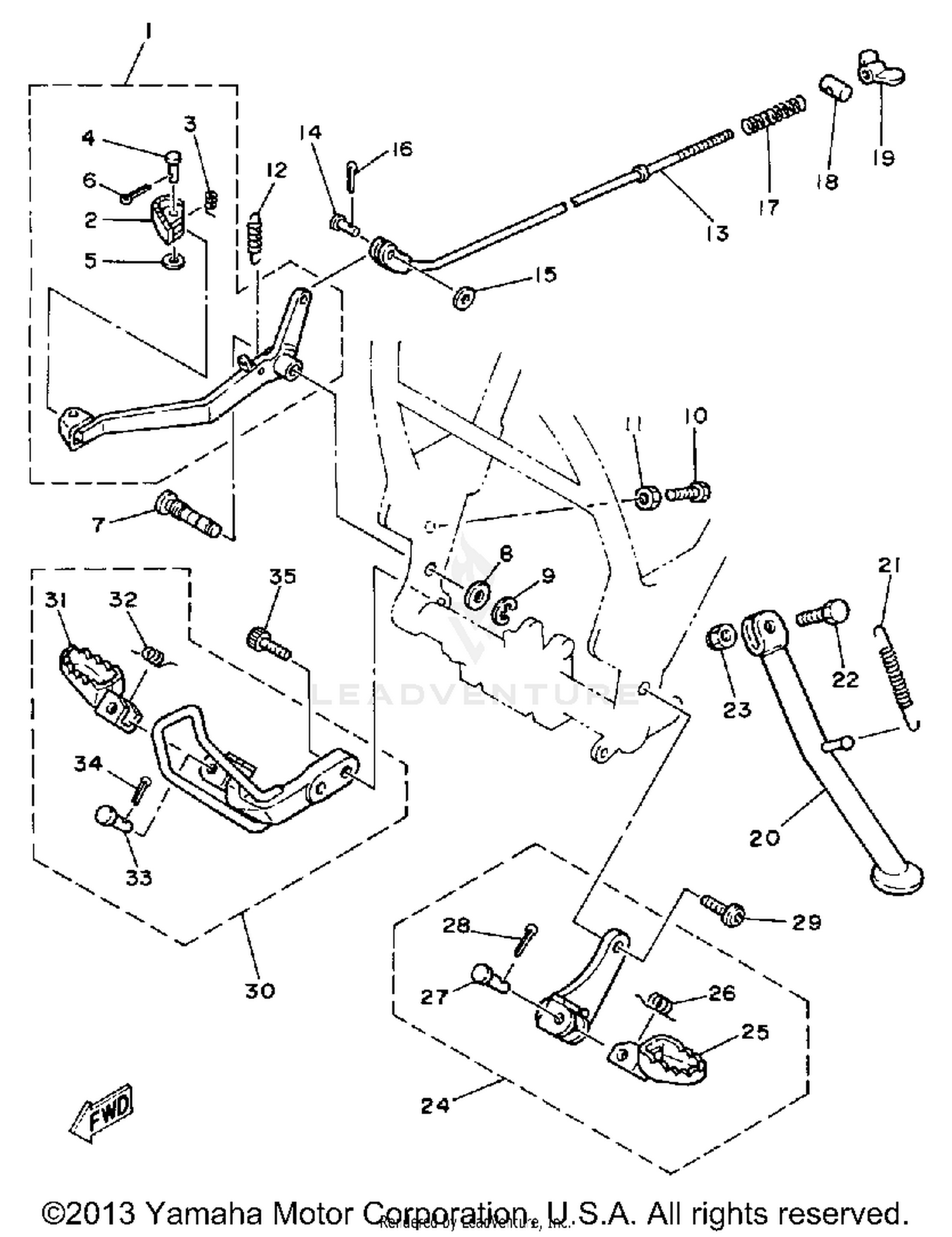

Stand-footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
1RH-27200-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PEDAL, BRAKE
1LN-27242-00-00
Superseded by 3R8-27242-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#3
SPRING, TORSION
90508-14429-00
|
$4.50 | ||
|
Unavailable |
|||
|
#4
PIN, CLEVIS
91701-06028-00
Superseded by 91702-06028-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, BRAKE PEDAL
1KH-27212-00-00
Superseded by 1KH-27212-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-12541-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
93430-09038-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON DEEP R
97011-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, TENSION
90506-18305-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, BRAKE
1RH-27231-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#14
PIN, CLEVIS
90240-06006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
STAND, SIDE
1KH-27311-01-00
Superseded by 1KH-27311-02-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, TENSION
90507-29009-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90109-103A1-00
Superseded by 90109-10473-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SELF-LOCKING
90185-10037-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
FRT FOOTREST ASSEMBLY LASSEMBLY
1RH-27410-00-90
|
$115.99 | ||
|
Unavailable |
|||
|
#25
FOOTREST 1
22W-27411-01-90
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN
91701-08038-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#29
SCREW, SPECL SHAPE
90149-10226-00
|
$5.49 | ||
|
Unavailable |
|||
|
#30
FRT FOOTREST ASSEMBLY RASSEMBLY
1RH-27420-00-90
|
$94.99 | ||
|
Unavailable |
|||
|
#31
FOOTREST 2 (3R1-27421-00)
22W-27421-01-90
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING, TORSION
90508-20023-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
PIN
91701-08038-00
|
$3.90 | ||
|
Unavailable |
|||
|
#34
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#35
BOLT
91316-10020-00
Superseded by 91317-10020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
