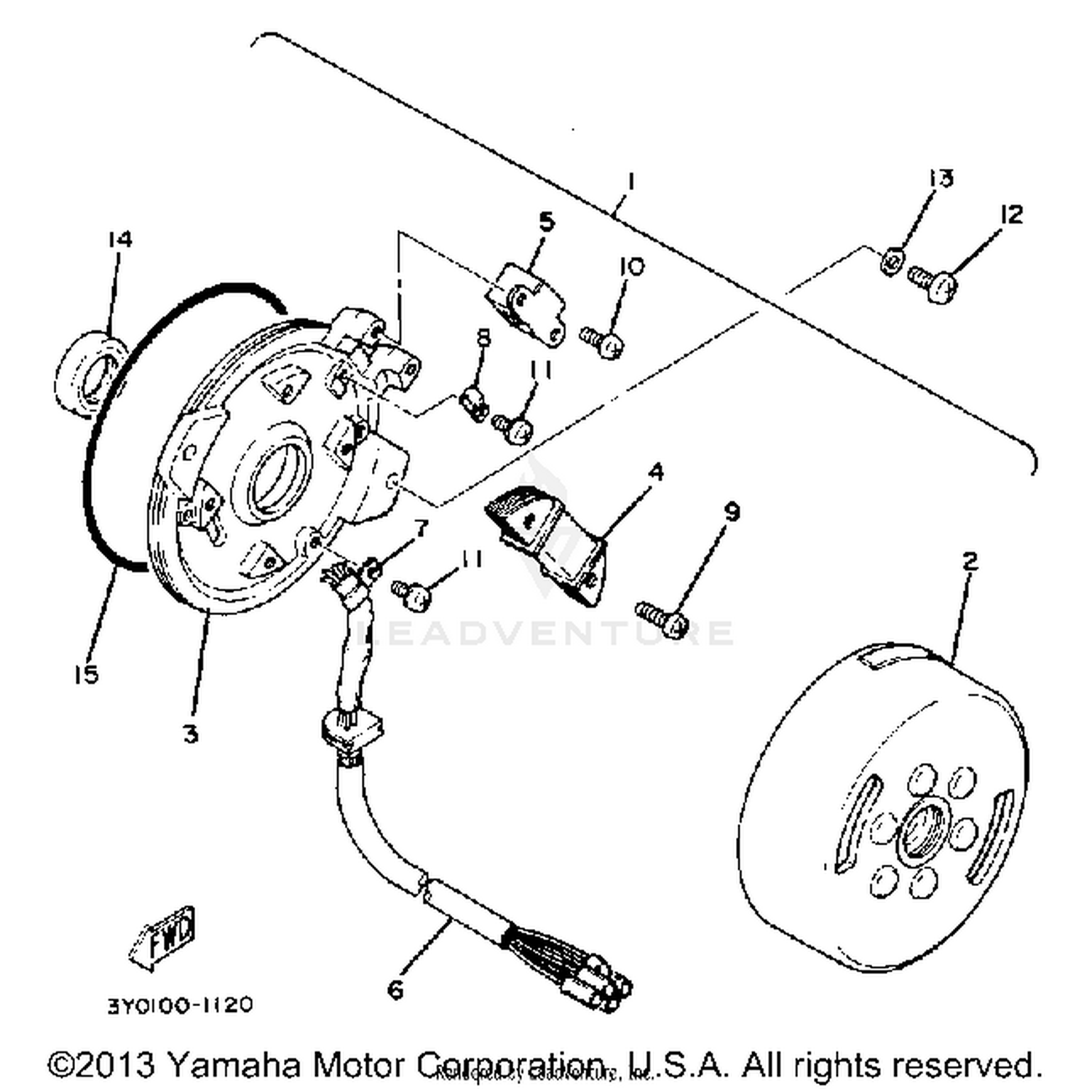

C - D - I - Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI MAGNETO ASSEMBLY
3Y0-85500-90-00
|
$449.99 | ||
|
Unavailable |
|||
|
#2
BASE, MAGNETO
3Y1-85509-20-00
|
$105.99 | ||
|
Unavailable |
|||
|
#3
BASE, MAGNETO
3Y1-85509-20-00
|
$105.99 | ||
|
Unavailable |
|||
|
#4
COIL SOURCE 2
31G-85512-20-00
|
$163.99 | ||
|
Unavailable |
|||
|
#5
COIL, PULSER
3Y1-85580-20-00
|
$112.43 | ||
|
Unavailable |
|||
|
#6
LEAD WIRE ASSEMBLY
3Y0-85515-20-00
|
$26.12 | ||
|
Unavailable |
|||
|
#7
CLAMP
445-81328-20-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, LEAD
3Y1-85528-20-00
|
$2.58 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98580-05020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
97601-04106-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
93102-25226-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93211-19413-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
