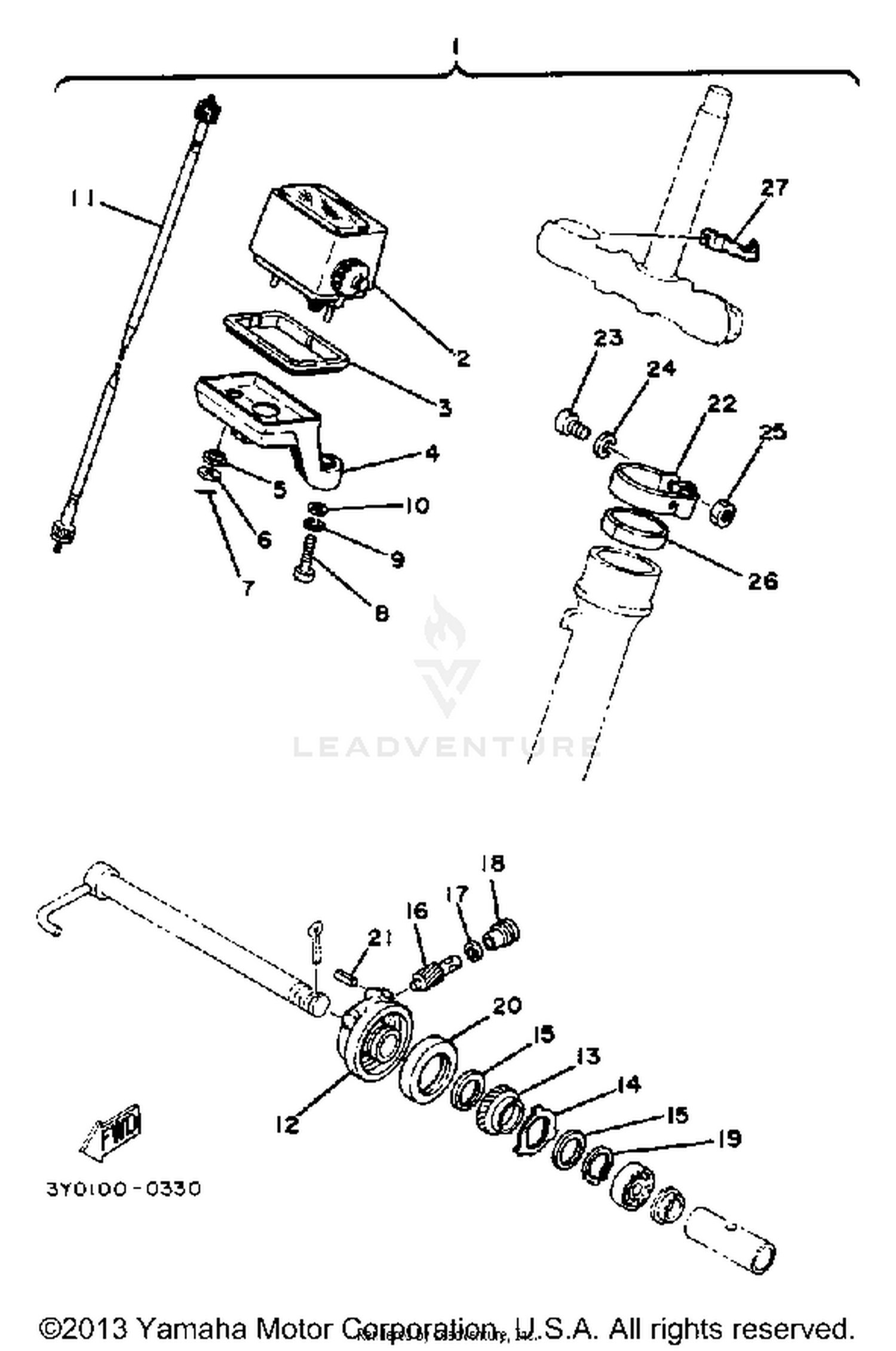

Meter Kit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
2002504234
3Y0-W0081-00-00
|
$125.99 | ||
|
Unavailable |
|||
|
#2
SPEEDOMETER ASSEMBLY
3R8-83570-60-00
|
$139.99 | ||
|
Unavailable |
|||
|
#3
DAMPER
3R8-83513-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#4
BRACKET, METER
3R8-83519-00-00
|
$17.80 | ||
|
Unavailable |
|||
|
#5
DAMPER 2
1M1-83526-00-00
Superseded by 1M1-83526-01-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-052E2-00
Superseded by 90201-05032-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER
437-83523-00-00
|
$6.24 | ||
|
Unavailable |
|||
|
#8
BOLT,HEXAGON
97021-06030-00
Superseded by 97017-06030-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPDMTR, CABLE
34X-83550-01-00
Superseded by 16M-83550-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR UNIT ASSEMBLY
1W2-25190-00-00
Superseded by 3XP-25190-00-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, DRIVE
1W2-25135-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#14
CLUTCH, METER
1K7-25149-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-22283-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, METER
1W2-25138-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#17
SHIM, ROD
102-18416-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#18
BUSH
306-25136-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#19
CIRCLIP
93410-22014-00
Superseded by 99009-22400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93106-40027-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, SPRING
91609-20014-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOLDER, CABLE 1
1W2-23318-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98501-05018-00
Superseded by 98507-05018-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER
3CV-28371-00-00
Superseded by 3FA-21639-00-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
90462-08035-00
|
$1.98 | ||
|
Unavailable |
|||
