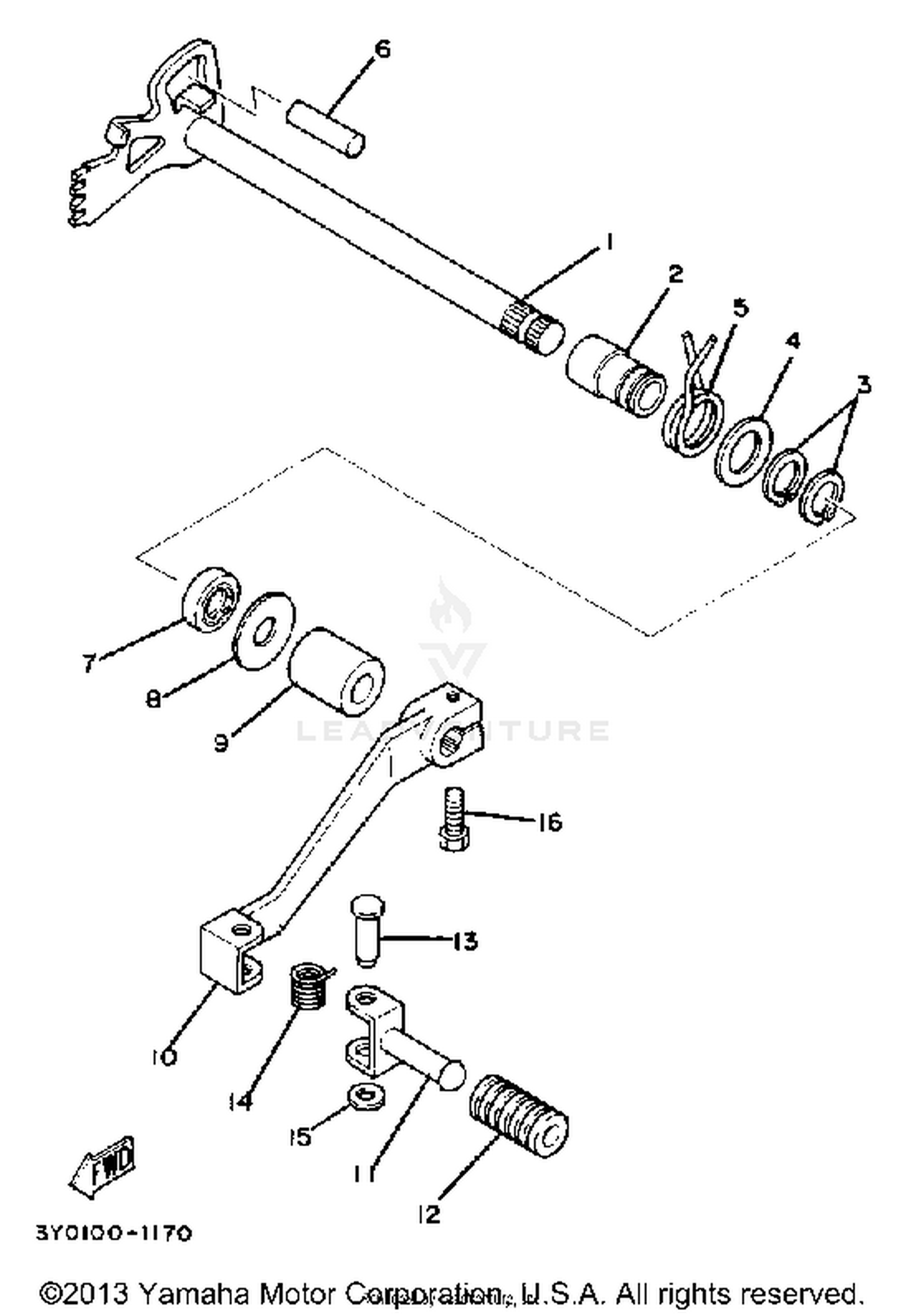

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHFT SHFT ASY
3Y1-18101-00-00
Superseded by 3Y1-18101-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-12787-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
99009-17400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-17255-00
Superseded by 90201-177G4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-32374-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
93608-30152-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL (SD 12-22-5 HS)
93102-12321-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-12588-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER
90560-12191-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIFT PEDAL ASSEMBLY
3Y0-18110-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#11
PEDAL, SHIFT
3R8-18162-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#12
COVER, SHIFT PEDAL
1W6-18113-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN (90243-08017)
90243-08019-00
|
$4.15 | ||
|
Unavailable |
|||
|
#14
SPRING, TORSION
90508-20415-00
|
$2.45 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-06042-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
