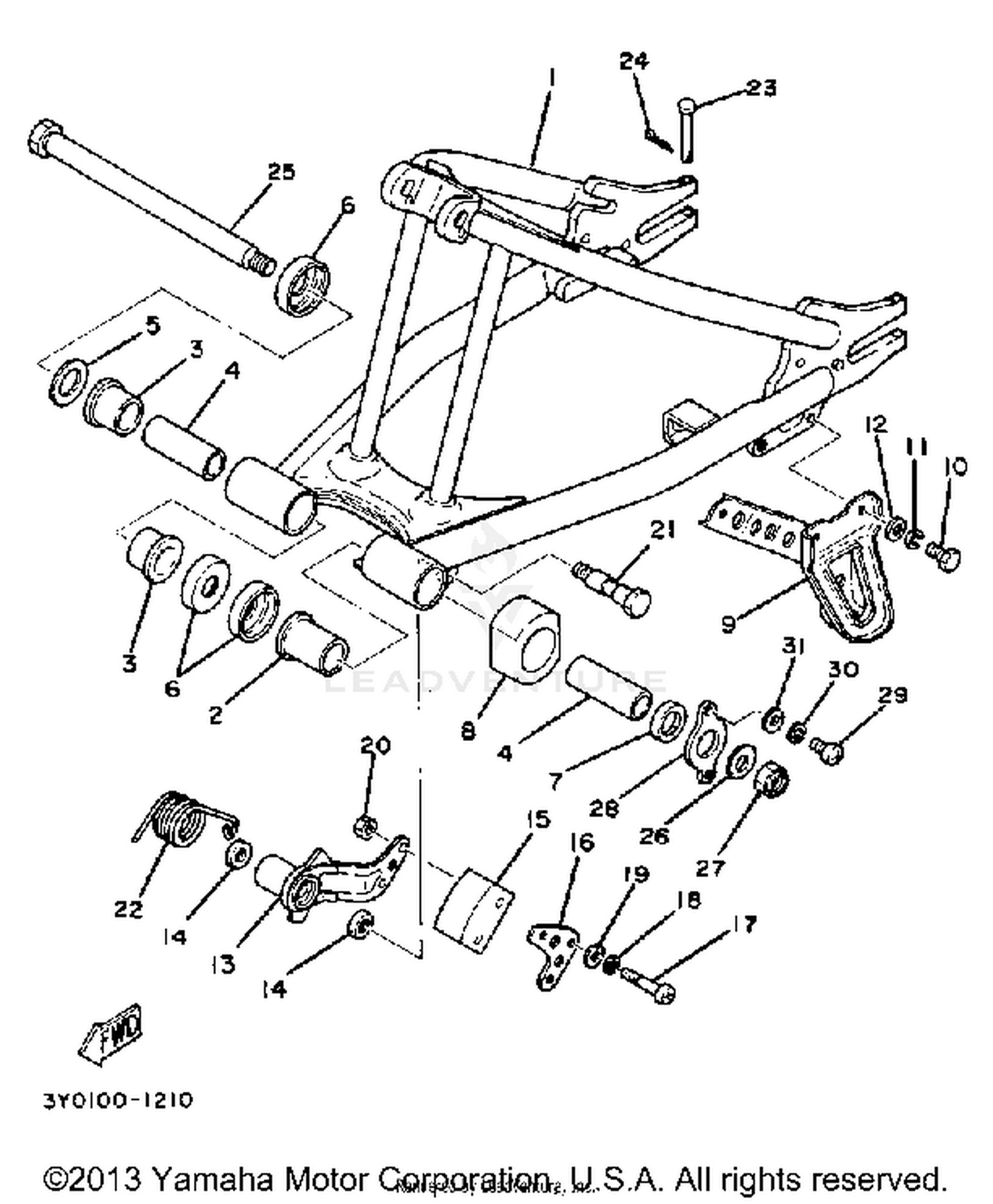

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
3Y0-22110-00-33
|
$196.99 | ||
|
Unavailable |
|||
|
#2
BUSH
3Y1-22184-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH 1
3Y1-22123-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER, THRUST 1
322-22128-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH 2
3Y1-22124-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM (0.3T)
240-22127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93109-22019-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, GUARD
3Y1-22151-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#9
GUARD, CHAIN
3Y1-22318-00-00
|
$49.99 | ||
|
Unavailable |
|||
|
#10
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
ARM, TENSIONER
3Y1-22179-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#14
OIL SEAL
93104-14044-00
Superseded by 93109-14021-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
TENSIONER (2N0-22178-00-00)
ACC-11130-00-25
|
$9.45 | ||
|
Unavailable |
|||
|
#16
GUIDE, CHAIN
1W1-22187-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD
98501-05040-00
Superseded by 98507-05040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (90109-10533-00)
90109-10483-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, TORSION
90508-35350-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, CLEVIS
91701-05050-00
|
$8.99 | ||
|
Unavailable |
|||
|
#24
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
SHAFT, PIVOT
2N6-22141-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-14218-00
Superseded by 90201-15797-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, SELF-LOCKING
90185-14070-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE
3Y1-21329-00-00
|
$6.86 | ||
|
Unavailable |
|||
|
#29
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#31
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Unavailable |
|||
