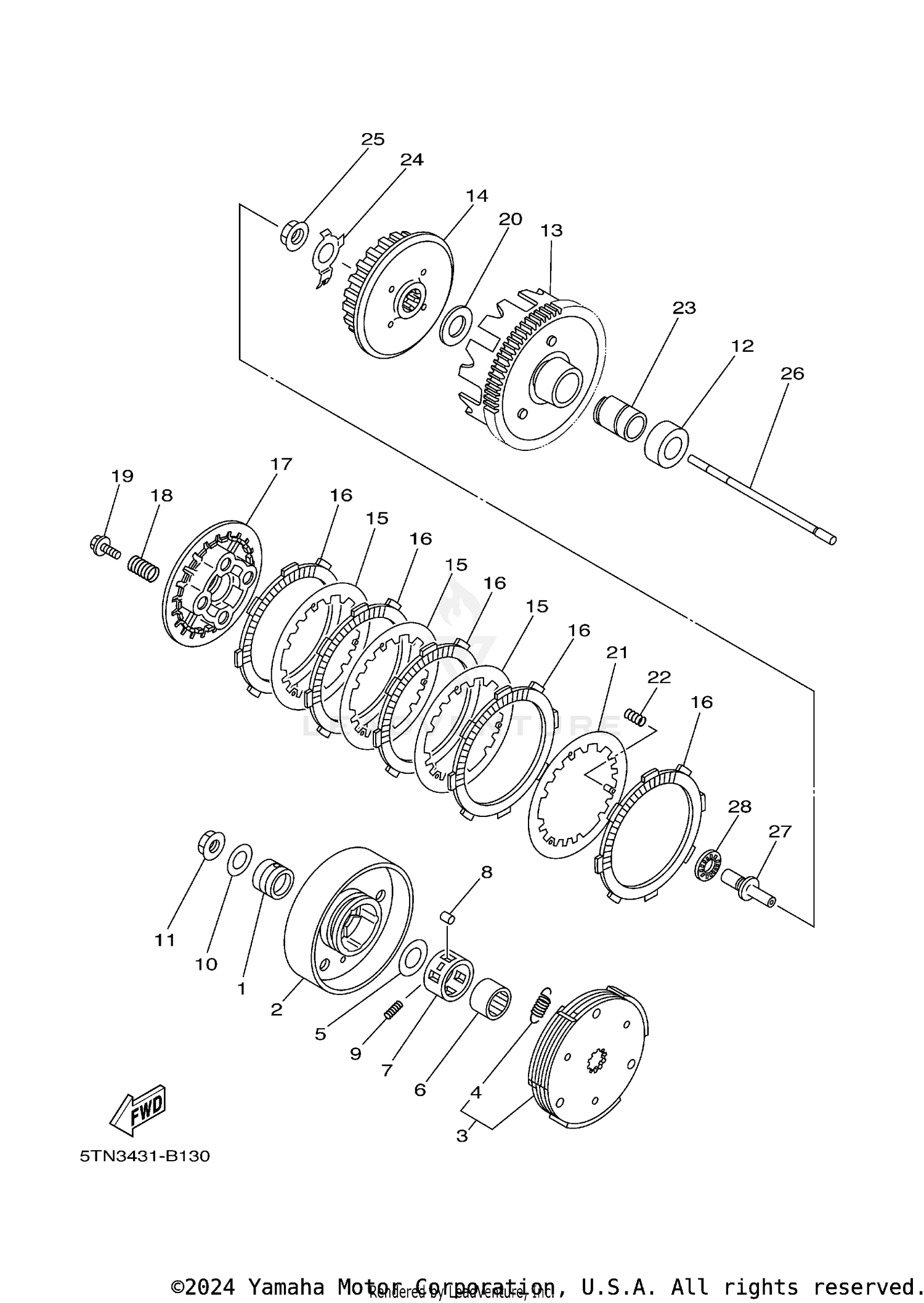

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR
90387-16803-00
Superseded by 90387-16001-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH HOUSING COMP.
2P2-E6611-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLUTCH CARRIER ASSY
2P2-E6620-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, CLUTCH WEIGHT 1
2P2-E6626-00-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-167P7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOSS, CLUTCH HOUSING
5LM-E6512-00-00
Superseded by 4GL-16512-01-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAGE
5D9-E6586-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DOWEL
93606-10800-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-04800-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-12019-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-12659-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
90560-17384-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PRIMARY DRIVEN GEAR COMP.
2P2-E6150-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOSS, CLUTCH
2P2-E6371-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, CLUTCH 1
2P2-E6324-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, FRICTION
2P2-E6321-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, PRESSURE 1
2P2-E6351-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, COMPRESSION
90501-203G2-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, WITH WASHER
90119-05827-00
Superseded by 90119-05001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE,THRUST 1
90201-178J5-00
Superseded by 4S9-E6154-10-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
PRESSURE PLATE ASSY
2P2-E6350-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, COMPRESSION
90501-050F1-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-17004-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, LOCK
5TP-E6135-00-00
Superseded by 4GL-16135-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
90179-14001-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
ROD, PUSH 2
5LM-E6357-00-00
Superseded by 4S9-E6357-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
ROD, PUSH 1
5LM-E6356-01-00
Superseded by 4S9-E6356-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING
93340-210Y0-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
