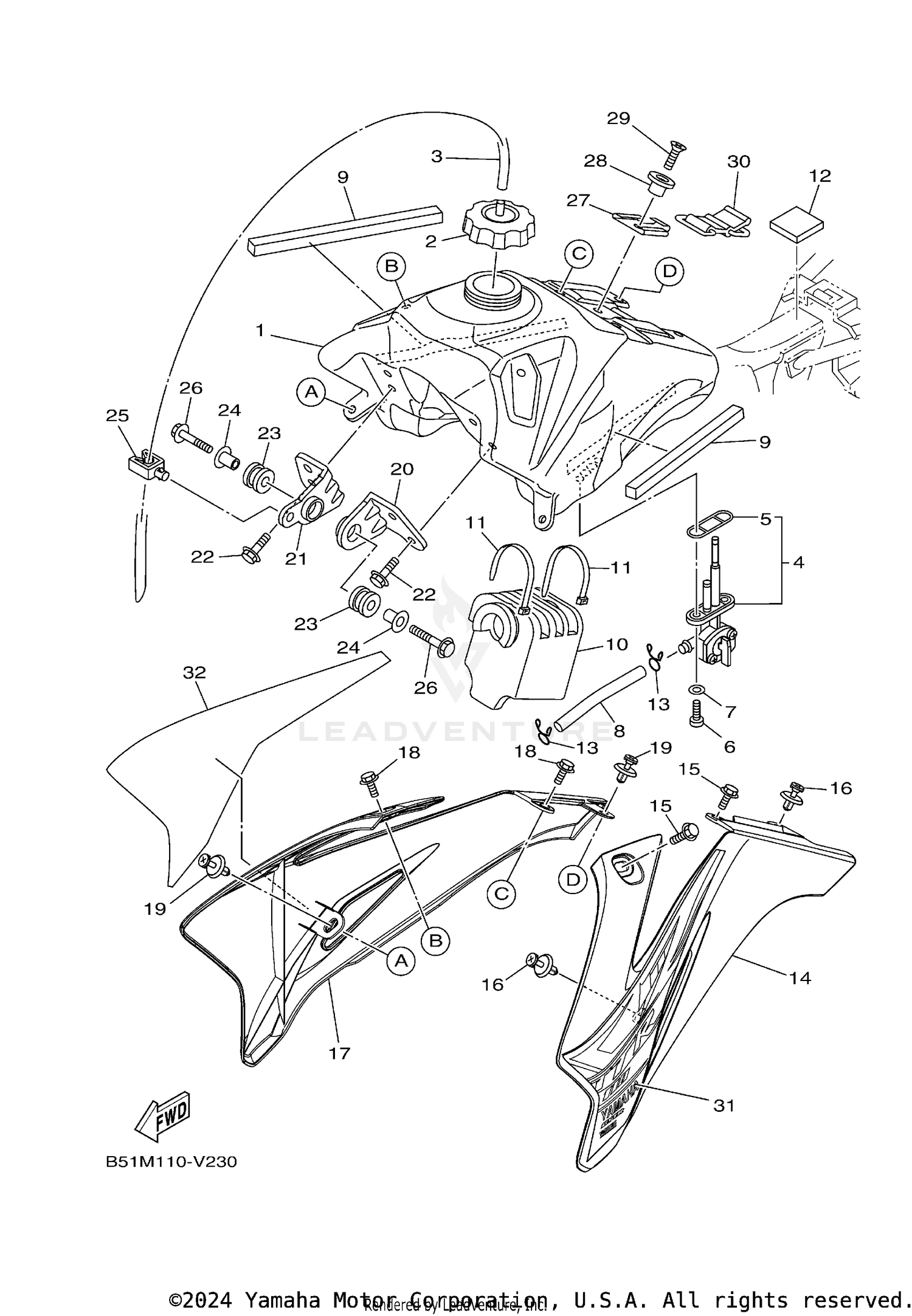

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5B6-24110-01-00
|
$300.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY
2FJ-24610-20-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, BREATHER
5B6-21826-10-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUEL COCK ASSY 1
1P6-24500-10-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
1P6-24512-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, FUEL 1
5B6-24311-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, SIDE COVER
5B6-2411J-00-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, LOCATING 1
5B6-24181-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAND
90465-13152-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, LOCATING 3
2X6-24183-00-00
Superseded by 51L-28371-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCOOP AIR ASSY. 1
5B6-2137A-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-06064-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
RIVET
90269-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCOOP AIR ASSY. 2
5B6-2137B-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-06064-00
|
$3.60 | ||
|
Unavailable |
|||
|
#19
RIVET
90269-07076-00
|
$6.49 | ||
|
Unavailable |
|||
|
#20
STAY, FUEL TANK 1
5B6-24157-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY, FUEL TANK 2
5B6-24158-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95802-06010-00
Superseded by 95812-06010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET
90480-18290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-066J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90464-13003-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT,FLANGE
95802-06030-00
Superseded by 95817-06030-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
STAY, FUEL TANK 2
5B6-24116-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRACKET, SEAT
4EW-2412F-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, FLAT HEAD
98702-06025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BAND, TANK FITTING 1
5B6-24173-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GRAPHIC, FUEL TANK
B51-24244-50-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GRAPHIC, FUEL TANK
B51-24245-50-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
