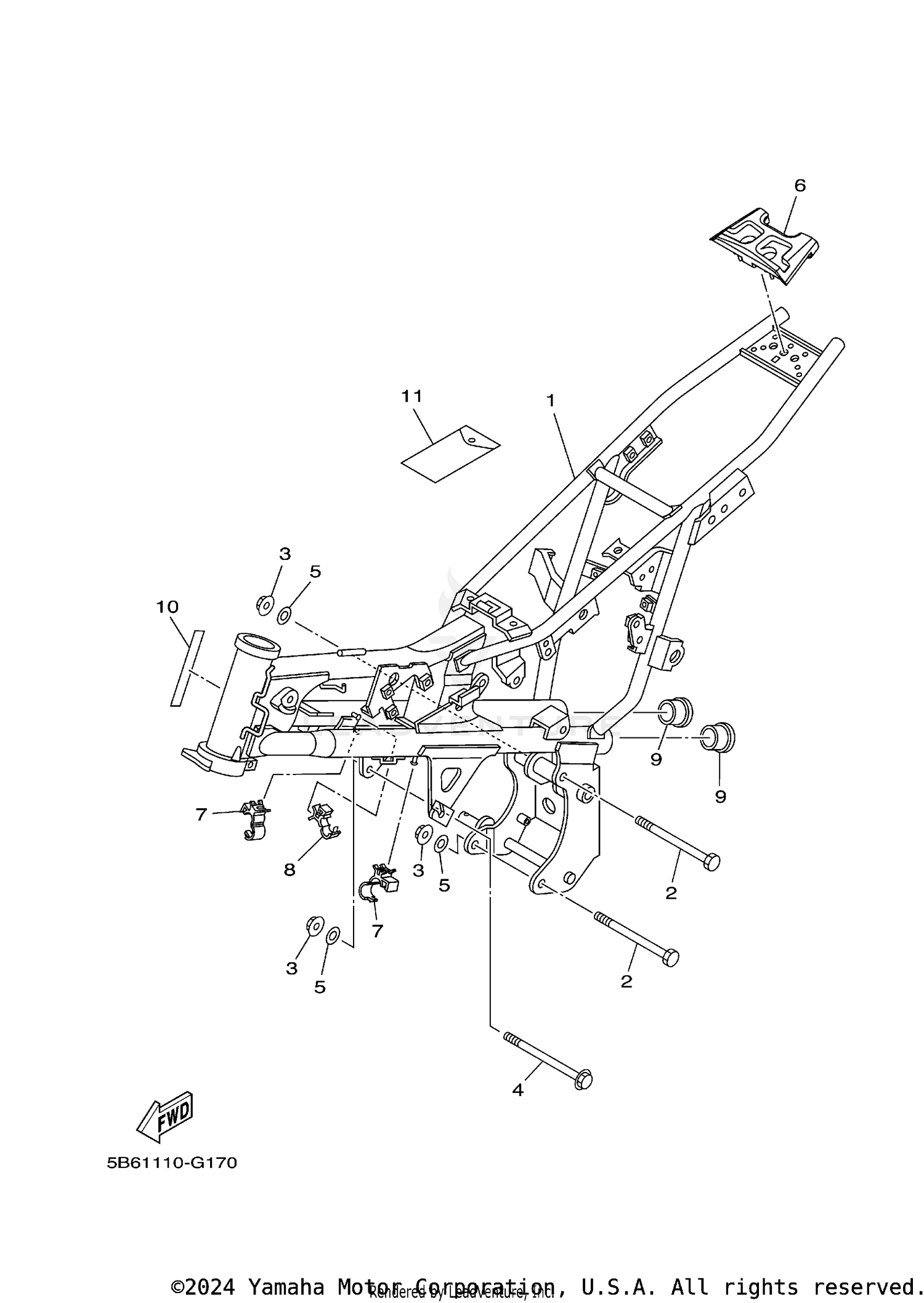

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
5B6-21110-00-00
|
$1,260.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95812-08120-00
Superseded by 95817-08120-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
90179-08674-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-08223-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, CLAW(M75)
90201-084K5-00
Superseded by 90214-08046-00
|
$1.05 | ||
|
Unavailable |
|||
|
#6
DAMPER
5B6-2139X-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90464-15192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
90464-10190-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, BLIND
5B6-21279-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PROTECTOR, FUEL TANK
3HA-24141-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
TOOL KIT
5HN-28100-00-00
Superseded by 5HN-28100-01-00
|
$14.49 | ||
|
Unavailable |
|||
