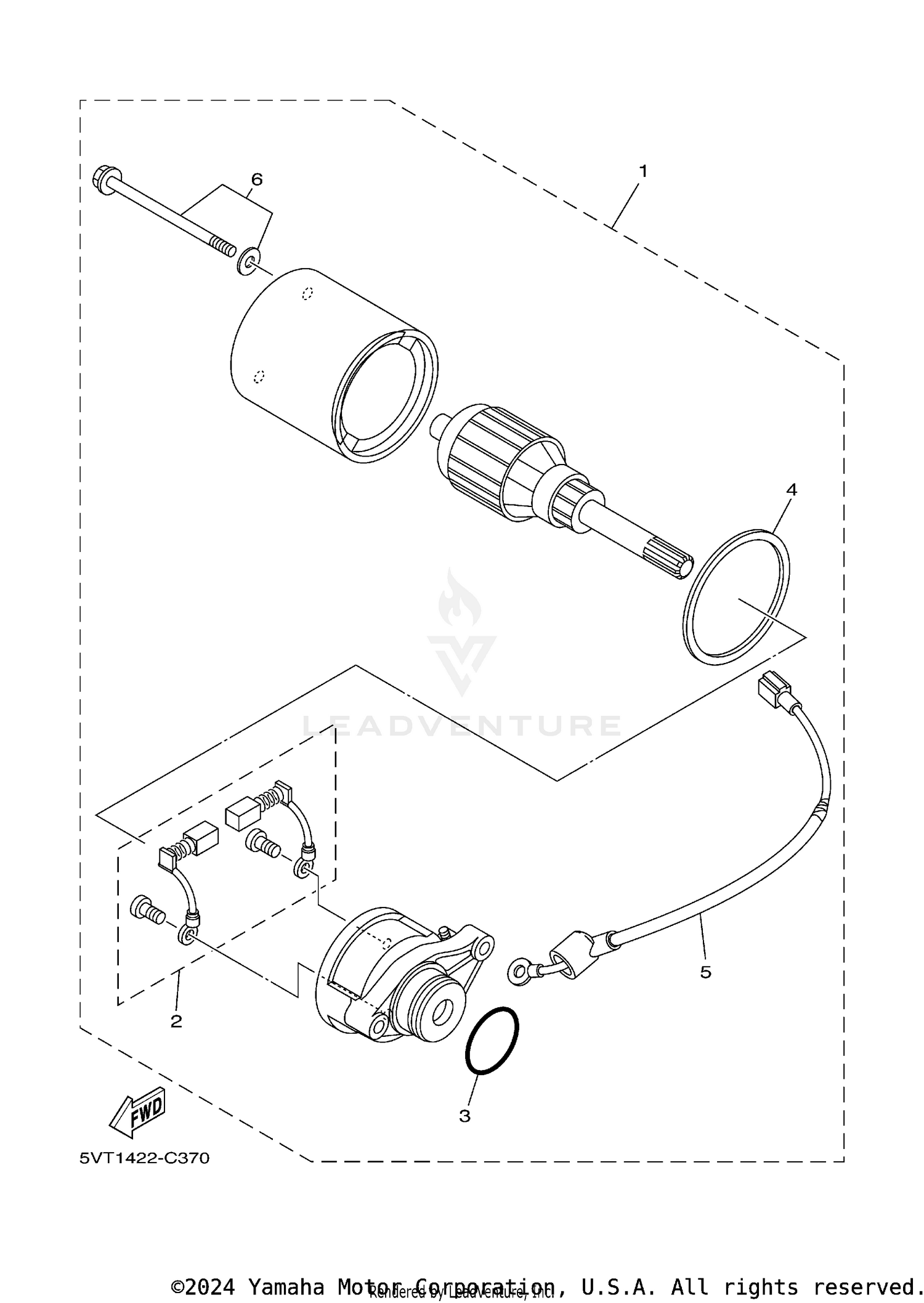

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTING MOTOR ASSY
5B6-H1800-01-00
Superseded by 5B6-H1800-02-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRUSH SET
5TP-H1801-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING 1
5TP-H182L-00-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
4ST-81861-00-00
Superseded by 4ST-H1861-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CORD COMP.
5B6-H183G-00-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET (3P91)
5TP-H1828-00-00
Superseded by 5TP-H2828-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
