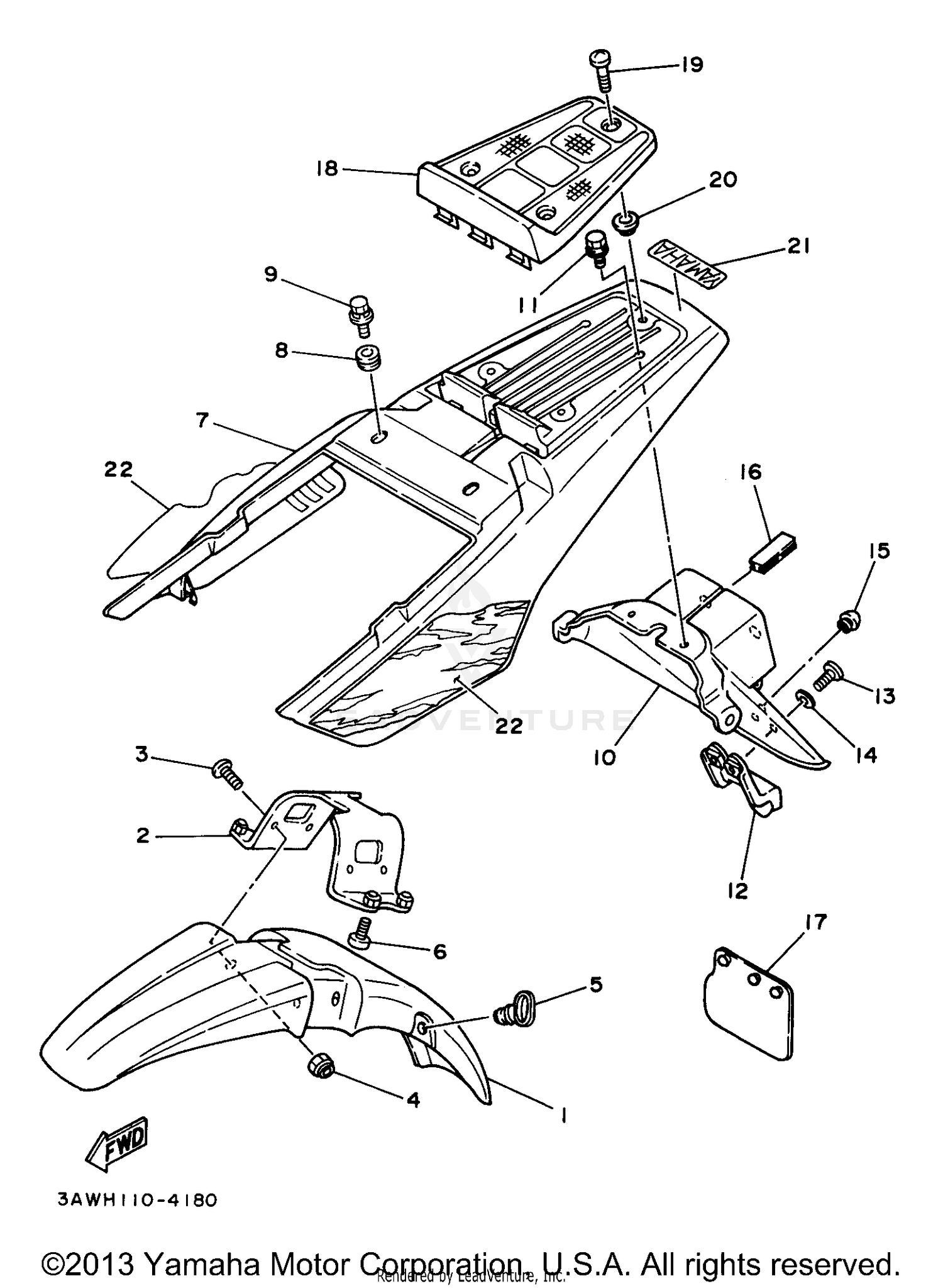

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
3AW-21511-20-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FENDER
2JX-21512-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BINDING
90154-05004-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, U FLANGE
95607-05200-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, CABLE
1A8-21518-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, REAR
3AW-21611-20-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-12053-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-06063-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, LICENSE
2JX-21685-00-00
Superseded by 2JX-21685-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#11
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, REFLECTOR
2JX-21641-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98507-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG
4G0-21639-00-00
Superseded by 90338-07018-00
|
$6.49 | ||
|
Unavailable |
|||
|
#16
SEAL
2JX-21669-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
FLAP
34X-21691-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, REAR FENDER
2JX-21651-00-00
|
$90.99 | ||
|
Unavailable |
|||
|
#19
SCREW, BIND
98907-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-06681-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
EMBLEM, YAMAHA
99247-00080-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GRAPHIC SET, REAR FENDER
3AW-2165A-40-00
|
$124.99 | ||
|
Unavailable |
|||
