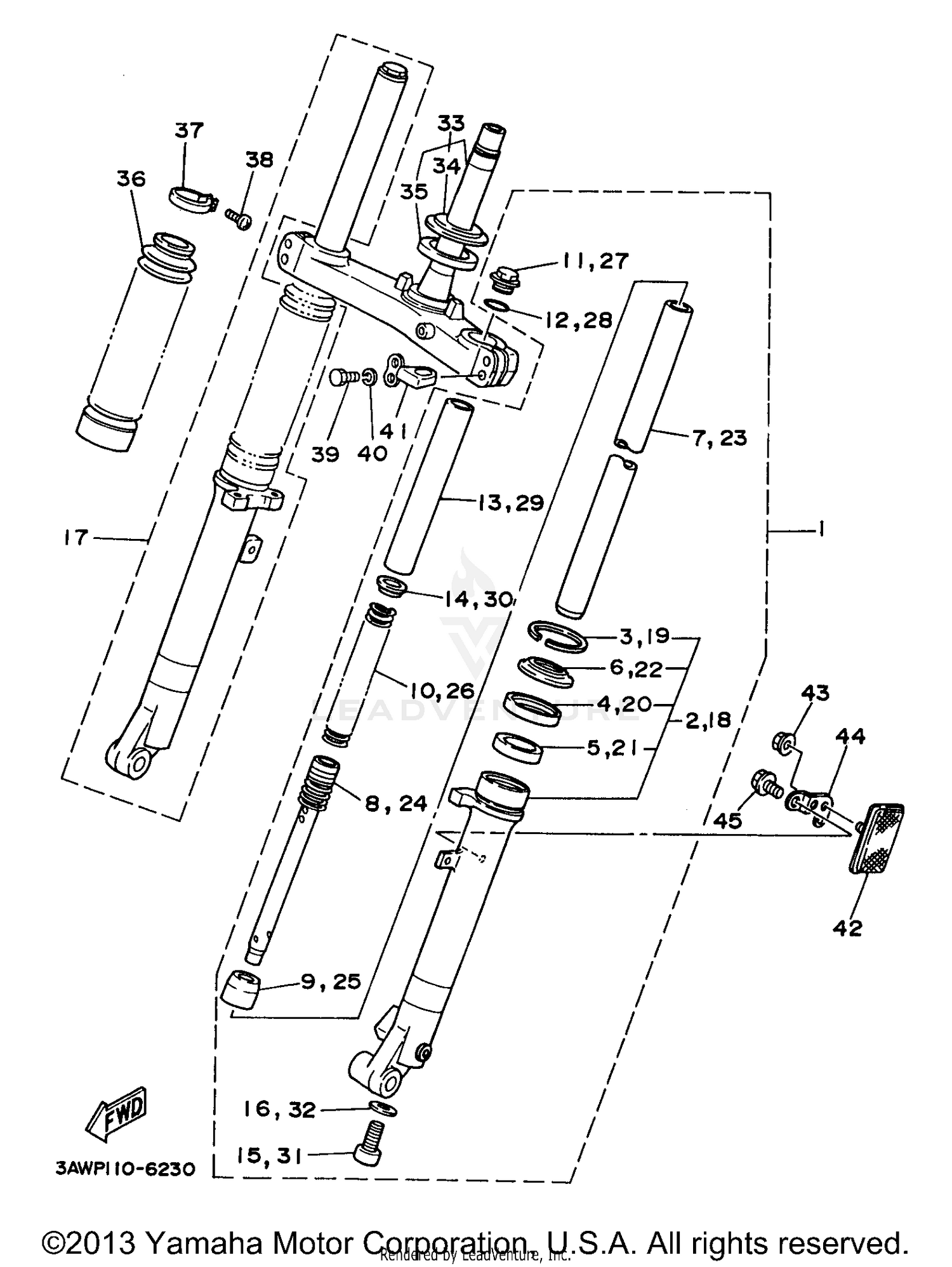

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY (L.H)
2JX-23102-00-00
|
$345.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (LEFT)
2JX-23126-00-00
|
$339.99 | ||
|
Unavailable |
|||
|
#3
RING, SNAP
22W-23153-L0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
22W-23145-L0-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
51Y-23125-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, DUST
54G-23144-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
INNER TUBE COMP. 1
2JX-23110-00-00
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CYLINDER COMP., FRONT FORK
2JX-23170-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPINDLE, TAPER
39K-23173-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#10
SPRING, FRONT FORK
2JX-23141-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, CAP
2JN-23111-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
3J2-23114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
22U-23118-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT, SPRING UPPER
583-23142-M0-00
Superseded by 583-23142-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
FRONT FORK ASSEMBLY (R.H)
2JX-23103-00-00
|
$344.99 | ||
|
Unavailable |
|||
|
#18
TUBE, OUTER (RIGHT)
2JX-23136-00-00
|
$307.99 | ||
|
Unavailable |
|||
|
#19
RING, SNAP
22W-23153-L0-00
|
$8.49 | ||
|
Unavailable |
|||
|
#20
OIL SEAL
22W-23145-L0-00
|
$18.99 | ||
|
Unavailable |
|||
|
#21
METAL, SLIDE 1
51Y-23125-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#22
SEAL, DUST
54G-23144-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#23
INNER TUBE COMP. 1
2JX-23110-00-00
|
$265.99 | ||
|
Unavailable |
|||
|
#24
CYLINDER COMP., FRONT FORK
2JX-23170-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#25
SPINDLE, TAPER
39K-23173-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#26
SPRING, FRONT FORK
2JX-23141-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#27
BOLT, CAP
2JN-23111-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#28
O-RING
3J2-23114-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#29
SPACER
22U-23118-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#30
SEAT, SPRING UPPER
583-23142-M0-00
Superseded by 583-23142-00-00
|
$13.99 | ||
|
Unavailable |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#32
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#33
UNDER BRACKET COMP.
2JX-23340-00-00
Superseded by 3LY-23340-01-00
|
$260.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
. .RACE, BALL 1
156-23411-00-00
Superseded by B6E-23411-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SEAL, DUST
164-23462-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOOT
2JX-23191-20-00
|
$84.99 | ||
|
Unavailable |
|||
|
#37
BAND
2K5-23192-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, BOOT BAND
1W4-23194-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
97321-08035-00
Superseded by 97013-08035-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, SPRING
92901-08100-00
Superseded by 92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOLDER, CABLE
5Y1-23317-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#42
REFLECTOR ASSY
20G-85110-00-00
Superseded by 23V-85110-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BRACKET, REFLECTOR 1
2JX-85112-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, FLANGE
95807-06008-00
Superseded by 95817-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
