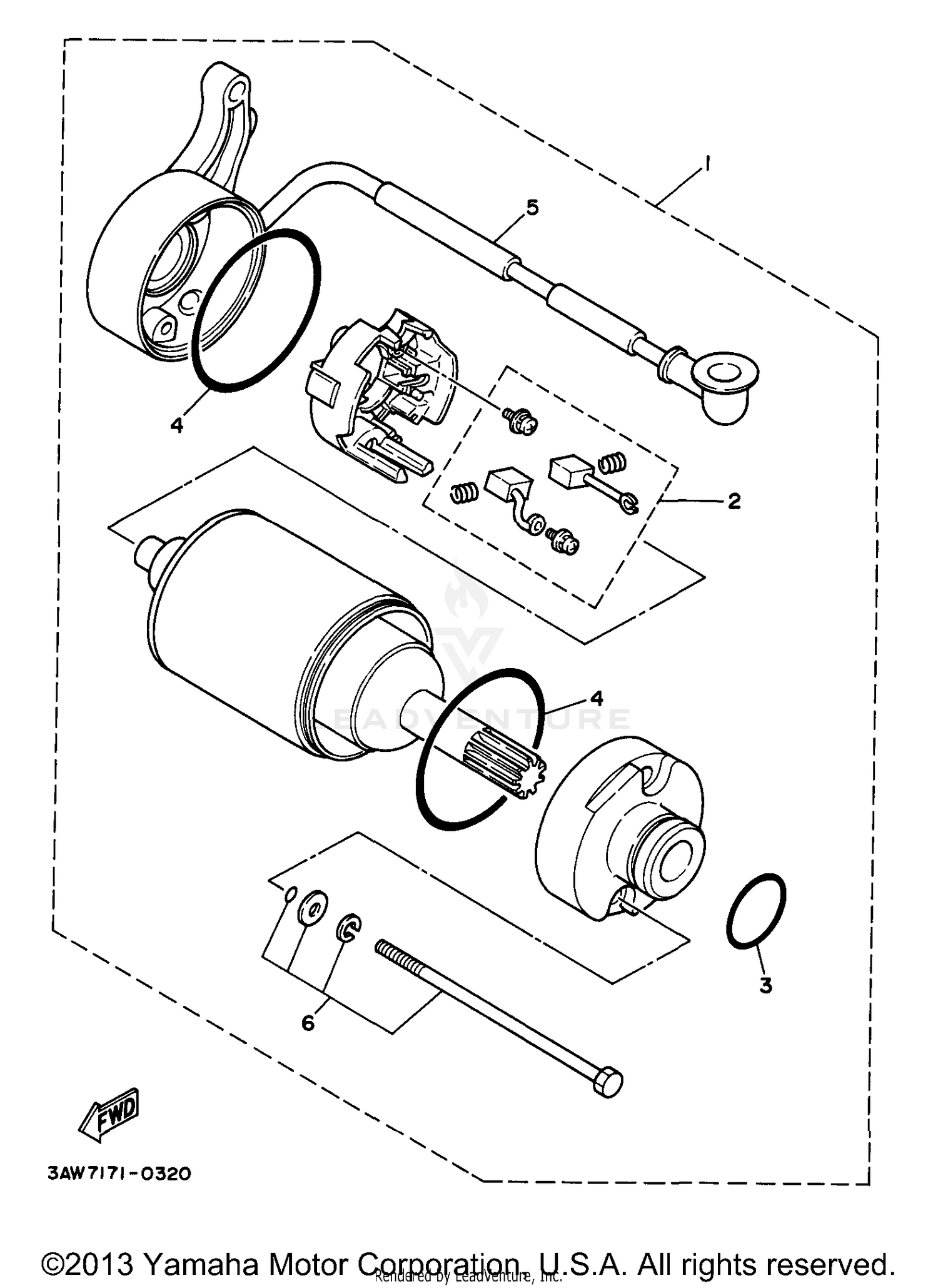

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY
3AW-81800-02-00
Superseded by 3AW-81890-00-00
|
$251.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRUSH SET
50M-81801-M0-00
Superseded by 3C5-81801-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-25711-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
93210-55669-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CORD COMP.
2JX-8183G-M0-00
Superseded by 2JX-8183G-11-00
|
$35.99 | ||
|
Unavailable |
|||
|
#6
SCREW SET
59V-81828-M0-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
