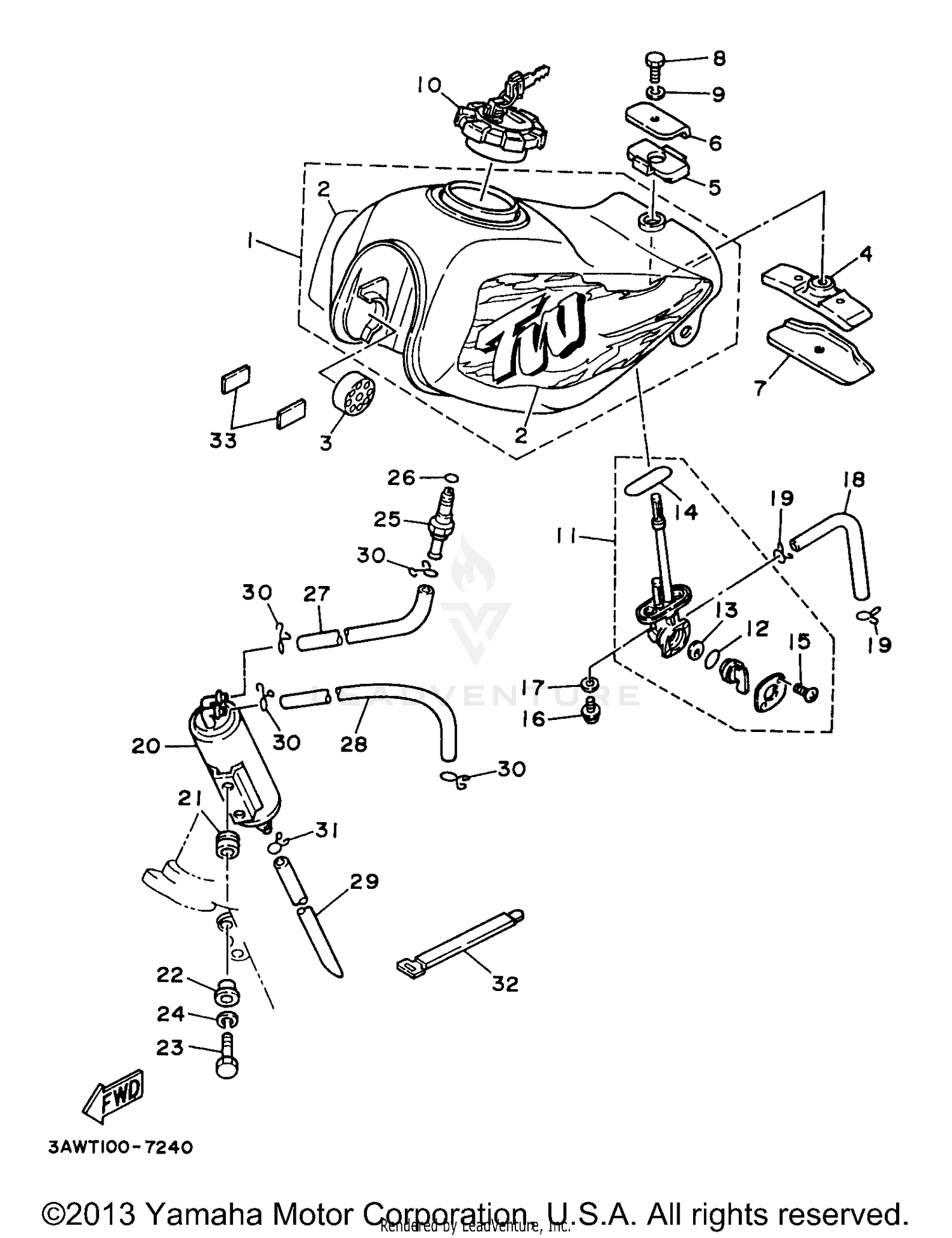

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
2JY-24110-00-X8
Superseded by 2JY-Y2410-10-W2
|
$774.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK COMP.
2JX-24110-00-X7
|
$687.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
3AW-24240-50-00
|
$148.99 | ||
|
Unavailable |
|||
|
#3
DAMPER, LOCATING 1
4L0-24181-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 2
30X-24182-01-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, LOCATING 3
30X-24183-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPECIAL
30X-24186-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL
30X-24187-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97007-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP ASSY
48Y-24602-00-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CAP ASSY
56R-24602-00-00
|
$130.99 | ||
|
Unavailable |
|||
|
#11
FUEL COCK ASSY 1
23F-24500-01-00
Superseded by 23F-24500-20-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
97801-03008-00
Superseded by 98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE (L110)
90445-10458-00
Superseded by 90445-10752-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
CANISTER ASSY
4BE-24170-00-00
|
$260.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-15342-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-063G3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#25
ROLL OVER VALVE ASSY
20K-24180-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-10166-00
Superseded by 93210-11453-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE (L110)
90445-10458-00
Superseded by 90445-10752-00
|
$4.70 | ||
|
Unavailable |
|||
|
#28
HOSE
90445-106A3-00
Superseded by 90445-10020-00
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
TUBE, FLEXIBLE VINYL (91A-20070
91A21-07024-00
Superseded by 91A20-07039-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#31
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
PROTECTOR, FUEL TANK
2JX-24141-00-00
Superseded by 18A-21778-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
