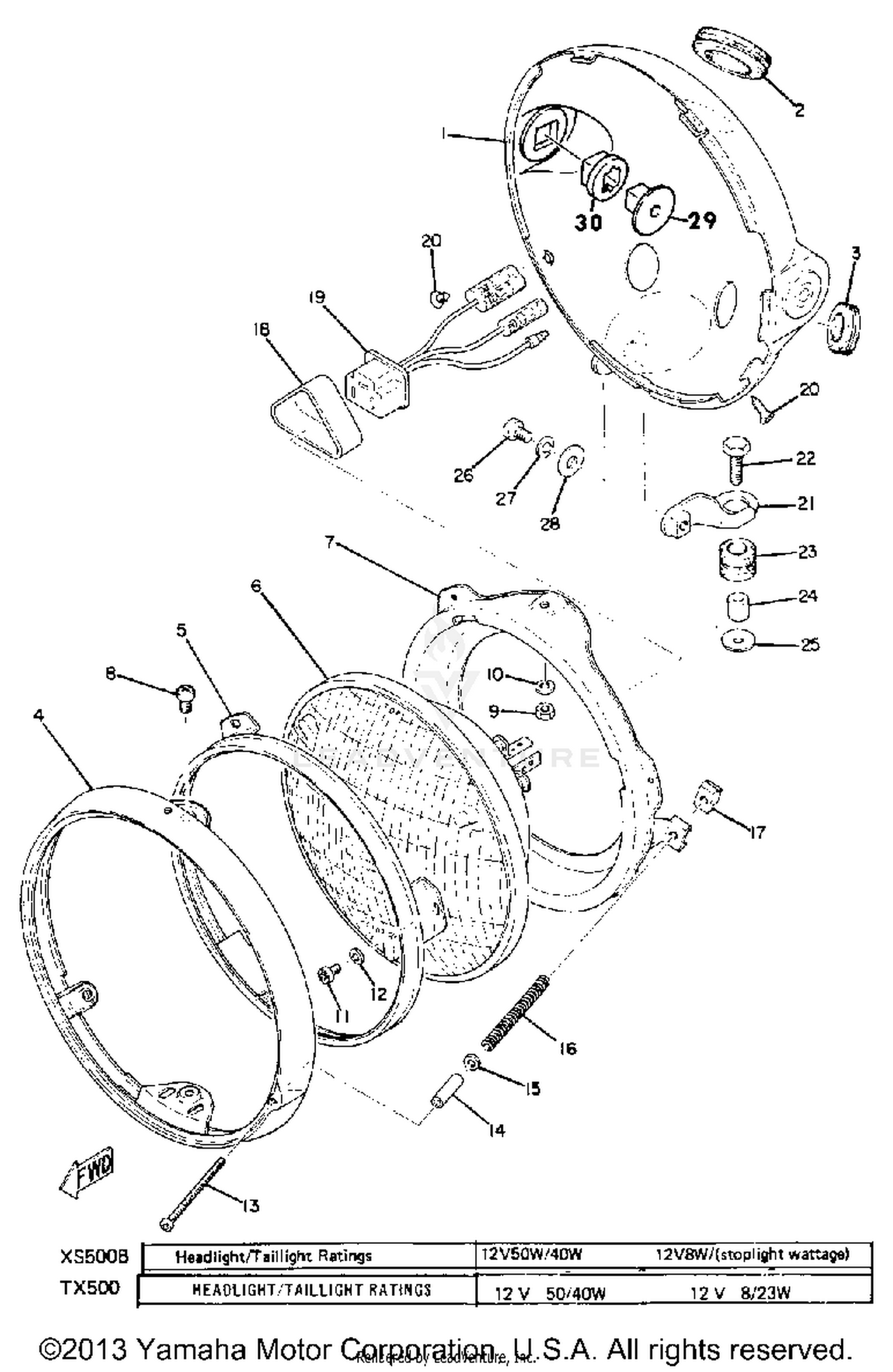

Head Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSEMBLY
371-84330-60-M3
|
$40.99 | ||
|
Unavailable |
|||
|
#
BODY ASSEMBLY
371-84330-61-F8
|
$56.99 | ||
|
Unavailable |
|||
|
#
BODY ASSEMBLY
371-84330-61-E4
|
$50.99 | ||
|
Unavailable |
|||
|
#2
GROMMET, WIRE HARNESS
214-84153-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET, WIRE HARNESS
150-84153-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RIM, HEADLIGHT
341-84315-40-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, RETAINING
2F9-84395-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LENS ASSEMBLY
341-84320-60-00
|
$94.99 | ||
|
Unavailable |
|||
|
#7
RING, MOUNTING
2F9-84394-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
95380-05600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, ADJUSTING
90157-04001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, SCREW
341-84333-60-00
|
$4.10 | ||
|
Unavailable |
|||
|
#15
WASHER
92990-04200-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, SCREW
341-84332-60-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, SOCKET
341-84397-61-00
|
$26.99 | ||
|
Unavailable |
|||
|
#19
SOCKET
371-84312-60-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, RIM FITTING
90152-05005-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY, HEADLIGHT 1
371-84318-01-00
|
$3.36 | ||
|
Unavailable |
|||
|
#22
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-07390-00
Superseded by 90387-07020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-06062-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#29
COLLAR, BODY FTNG
214-84145-60-00
|
$21.99 | ||
|
Unavailable |
|||
|
#30
DAMPER, HEADLIGHT
256-84345-60-00
|
$9.99 | ||
|
Unavailable |
|||
