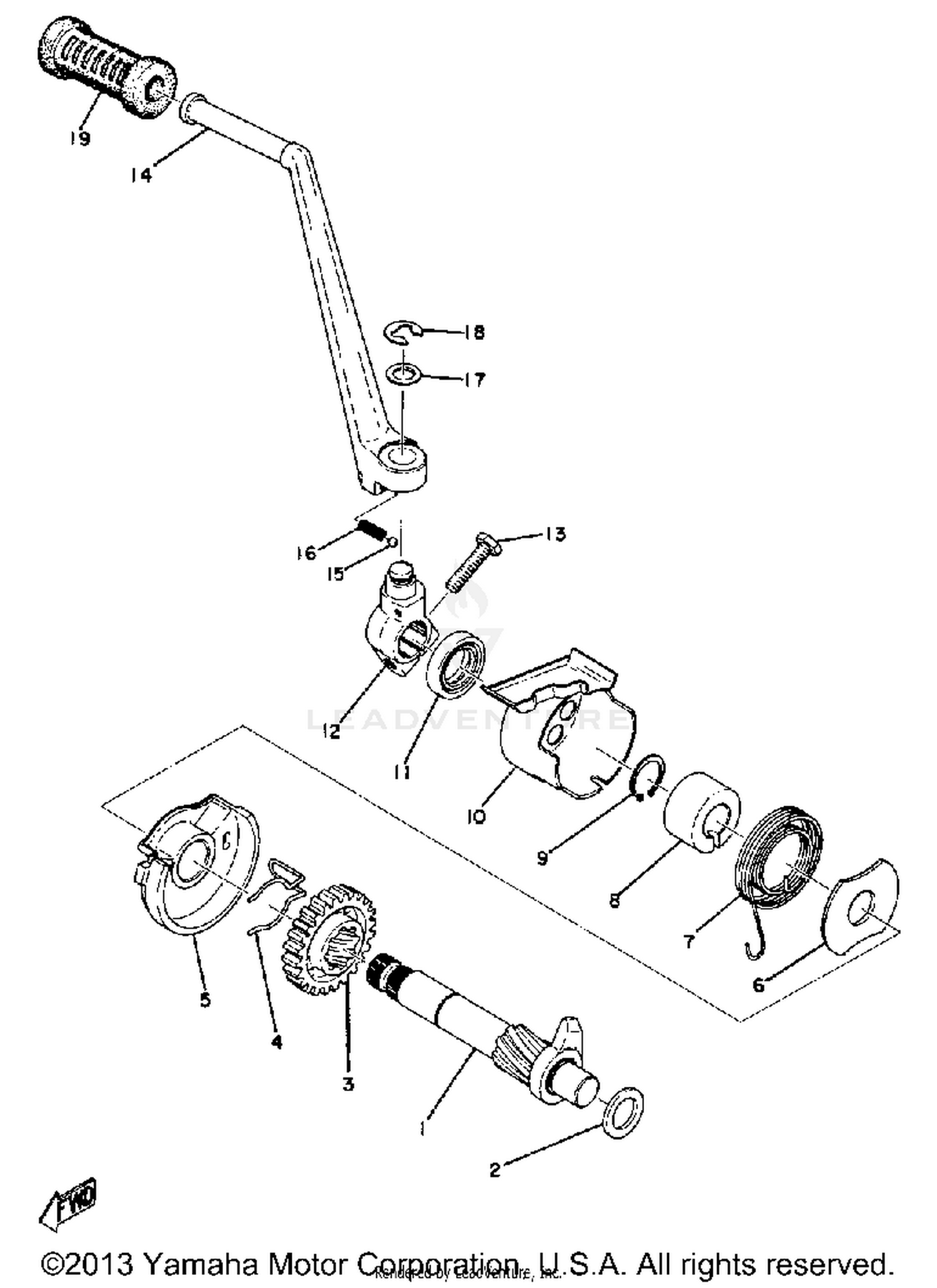

Kick Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KICK AXLE ASSEMBLY
371-15660-00-00
|
$32.12 | ||
|
Unavailable |
|||
|
#2
COLLAR
90387-17129-00
|
$21.99 | ||
|
Unavailable |
|||
|
#3
GEAR, KICK
371-15641-01-00
|
$32.12 | ||
|
Unavailable |
|||
|
#4
CLIP
371-15687-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#5
GUIDE, SPRING
371-15664-00-00
|
$18.44 | ||
|
Unavailable |
|||
|
#6
COVER, SPRING
278-15676-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, TORSION
90508-30051-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
371-15666-00-00
|
$9.40 | ||
|
Unavailable |
|||
|
#9
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, SPRING
371-15646-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#11
OIL SEAL
93102-20108-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOSS, KICK CRANK
583-15621-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
CRANK,KICK
2F3-15611-00-93
Superseded by 278-15611-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#15
BALL 7-32
93507-32031-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, BOSS STOPPER
90501-12081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-15234-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, KICK LEVER
156-15618-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
