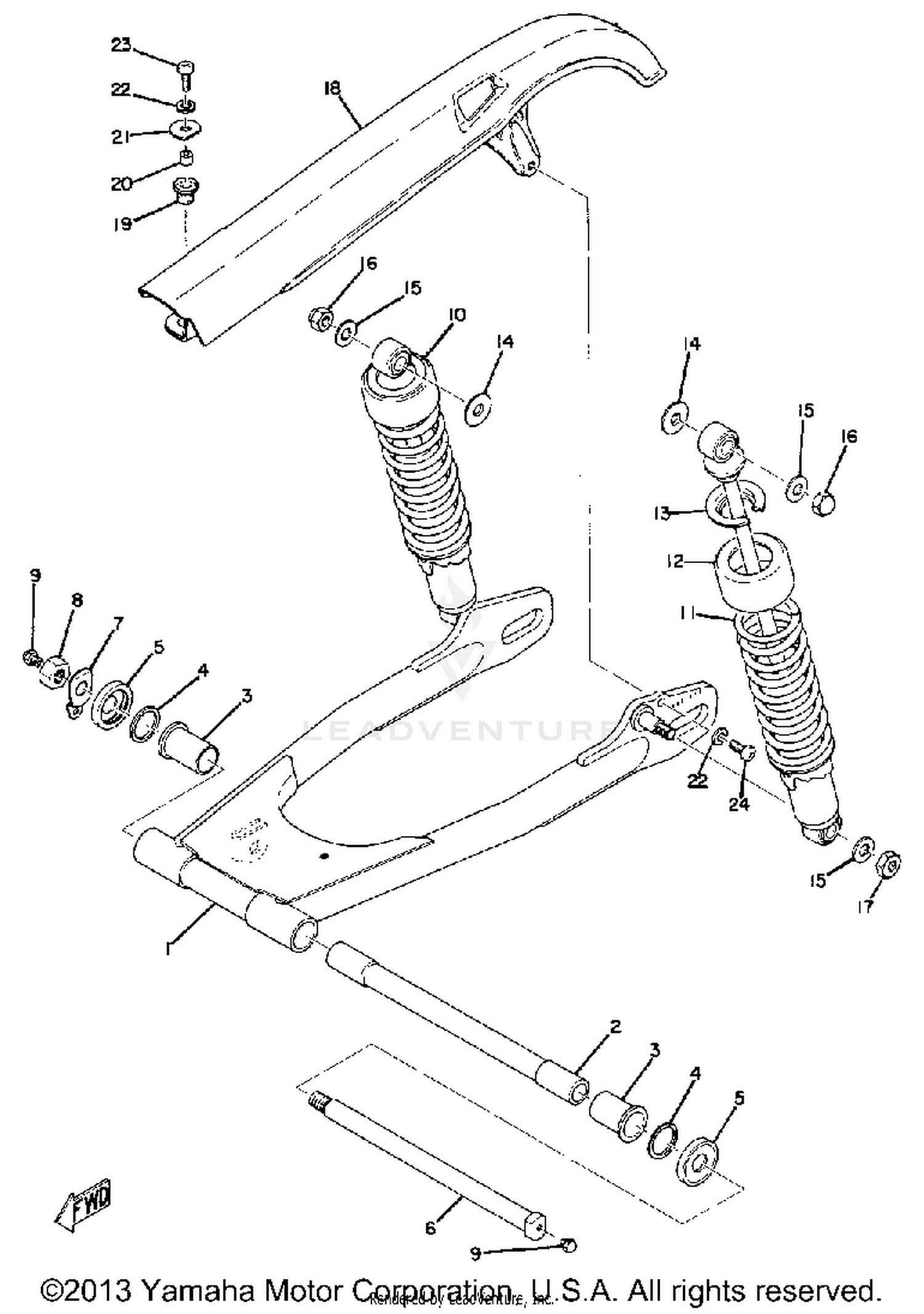

Rear Arm Rear Cushion Chain Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
371-22110-00-33
|
$86.94 | ||
|
Unavailable |
|||
|
#2
BUSH
341-22184-00-00
|
$133.99 | ||
|
Unavailable |
|||
|
#3
BUSH, SPEC'L NYLON
90386-22102-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM
240-22127-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, THRUST 1
371-22128-00-00
Superseded by 322-22128-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, PIVOT
371-22141-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#7
WASHER, LOCK
90215-14104-00
|
$2.10 | ||
|
Unavailable |
|||
|
#8
NUT
95312-14600-00
Superseded by 95337-14600-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHK/ABS ASSEMBLY, REAR
371-22210-21-00
|
$99.16 | ||
|
Unavailable |
|||
|
#11
SPRING
371-22212-20-00
|
$44.32 | ||
|
Unavailable |
|||
|
#12
COVER
371-22211-20-00
|
$3.63 | ||
|
Unavailable |
|||
|
#13
SEAT, SPRING UPPER
371-22213-20-00
|
$1.67 | ||
|
Unavailable |
|||
|
#14
WASHER, PLATE
90201-14218-00
Superseded by 90201-15797-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-10437-00
Superseded by 90201-105R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CAP
90176-10009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95303-10600-00
Superseded by 95314-10600-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
CASE, CHAIN
371-22311-01-98
|
$32.12 | ||
|
Unavailable |
|||
|
#19
DAMPER, CHAIN CASE
278-22332-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#20
COLLAR
90387-062N2-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPEC''L SHAP
90209-06034-00
|
$3.15 | ||
|
Unavailable |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
