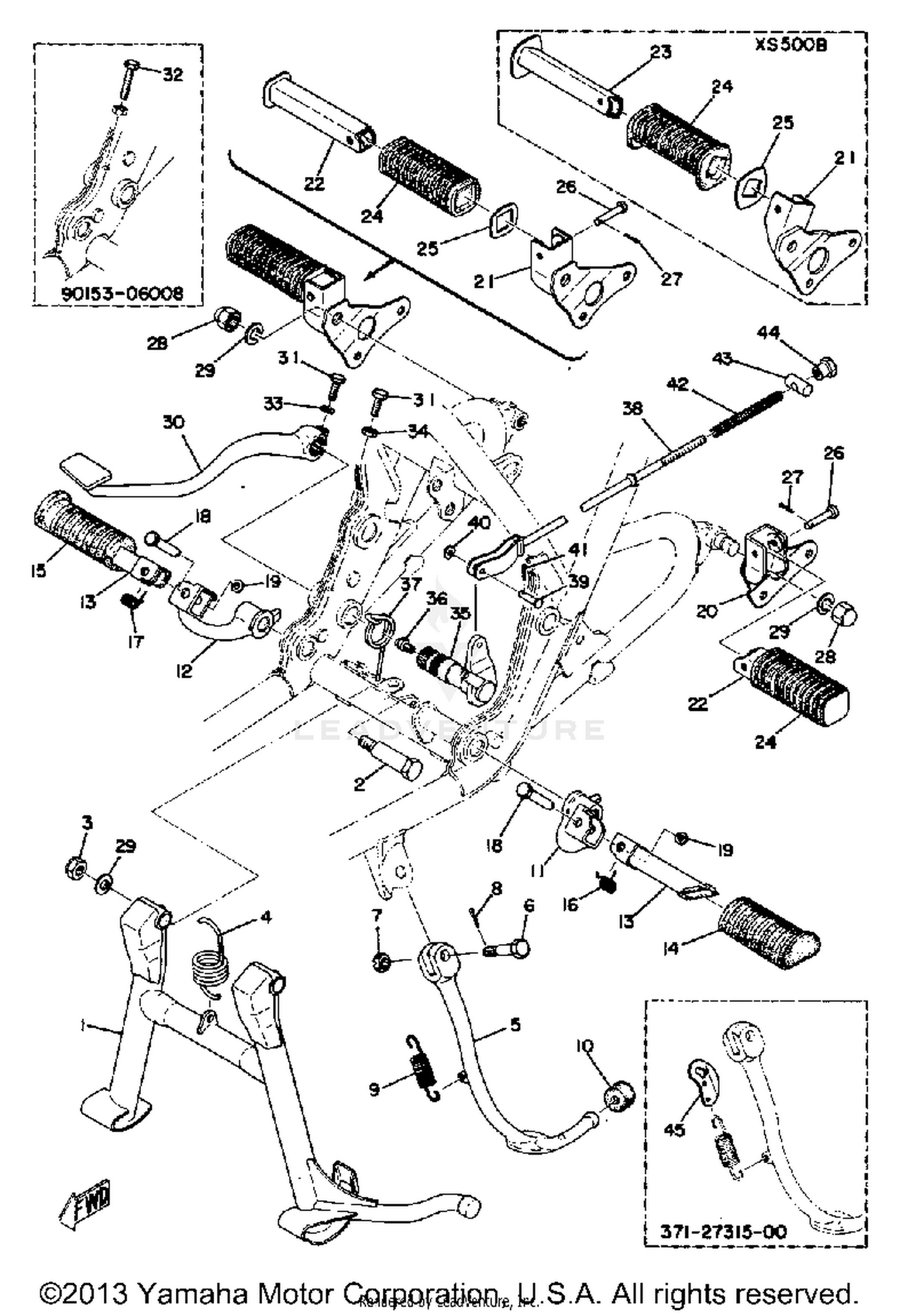

Stand Footrest Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRT FOOTREST ASSEMBLY L
371-27410-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#
STAND, MAIN (371-27111-04)
2F1-27111-00-00
|
$100.99 | ||
|
Unavailable |
|||
|
#2
FRT FOOTREST ASSEMBLY R
371-27420-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#
BOLT
90109-10440-00
|
$8.99 | ||
|
Unavailable |
|||
|
#3
NUT, SELF-LOCKING
90185-10031-00
|
$3.70 | ||
|
Unavailable |
|||
|
#4
SPRING, TENSION
90506-45063-00
|
$6.99 | ||
|
Unavailable |
|||
|
#5
STAND, SIDE
1J7-27311-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#6
BOLT
90109-10399-00
|
$5.99 | ||
|
Unavailable |
|||
|
#
BOLT
90102-10006-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, CASTLE
95303-10900-00
Superseded by 95307-10900-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-26270-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
STOPPER
278-27314-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#13
FOOTREST 2
371-27421-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#14
COVER, FOOTREST
341-27423-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#15
COVER, FOOTREST
341-27413-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#16
SPRING, TORSION
90508-20154-00
|
$3.65 | ||
|
Unavailable |
|||
|
#17
SPRING, TORSION
90508-20155-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN
90243-08006-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-06042-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET 1
371-27432-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#
BRACKET 1
371-27432-01-00
|
$7.49 | ||
|
Unavailable |
|||
|
#21
BRACKET 2
371-27442-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#
BRACKET 2
371-27442-01-00
|
$9.28 | ||
|
Unavailable |
|||
|
#22
FOOTREST, REAR 1
447-27431-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FOOTREST, REAR 1
168-27431-10-00
|
$57.99 | ||
|
Unavailable |
|||
|
#23
FOOTREST, REAR 2
447-27441-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, RR FOOTREST
447-27433-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER, RR FOOTREST
307-27433-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#25
WASHER, SPEC''L SHAP (168-27437
90209-18117-00
|
$2.75 | ||
|
Unavailable |
|||
|
#
WASHER, SPEC'L SHAPE
90209-18070-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, CLEVIS
91701-06035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#
NUT, CAP
90176-10009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PEDAL, BRAKE
371-27211-02-93
|
$42.72 | ||
|
Unavailable |
|||
|
#31
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, HEXAGON
90153-06008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
90170-06184-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
ROD, BRAKE
371-27231-02-00
|
$16.49 | ||
|
Unavailable |
|||
|
#36
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING, TORSION
90508-35157-00
|
$1.95 | ||
|
Unavailable |
|||
|
#38
ROD, BRAKE
371-27231-02-00
|
$16.49 | ||
|
Unavailable |
|||
|
#39
PIN, CLEVIS
90240-06006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
LINK, SIDE STAND
371-27315-00-00
|
$8.99 | ||
|
Unavailable |
|||
