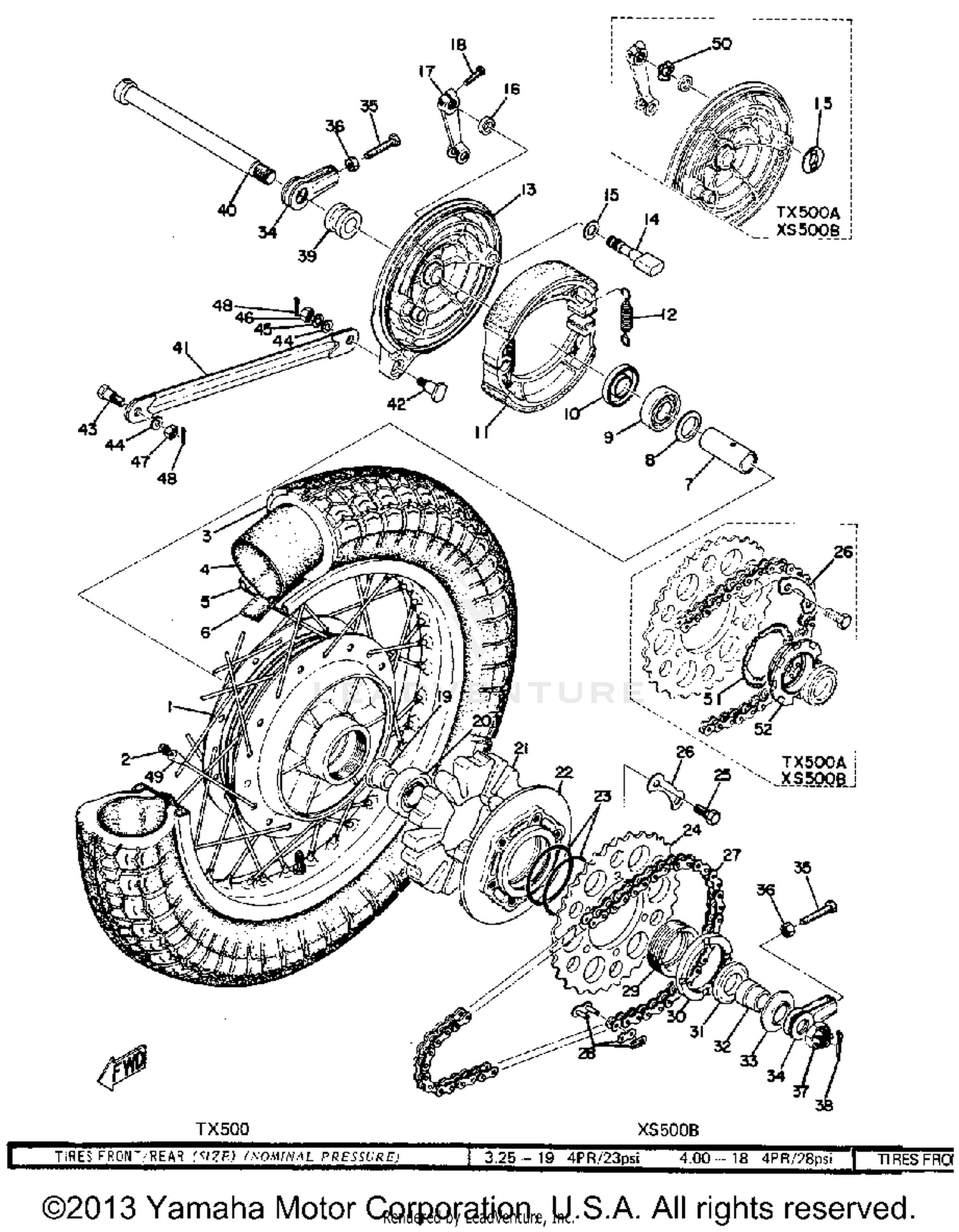

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
371-25311-00-00
|
$65.42 | ||
|
Unavailable |
|||
|
#
HUB, REAR
371-25311-01-00
|
$92.40 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, OUTER 2
256-25397-90-00
|
$3.57 | ||
|
Unavailable |
|||
|
#
SPOKE SET, INNER 2
256-25396-90-00
|
$3.01 | ||
|
Unavailable |
|||
|
#
SPOKE SET, REAR
256-25304-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#3
4.00-18 DUNLOP
94140-18304-00
|
$35.99 | ||
|
Unavailable |
|||
|
#4
TUBE (110-140/80-100-18 M/C)
94240-18098-00
Superseded by 94212-18188-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM 2.15X18
94421-18049-00
|
$83.70 | ||
|
Unavailable |
|||
|
#6
BAND, RIM (2.50-18)
94340-18022-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NO LONGER AVAILABLE
240-25317-00-00
|
$15.68 | ||
|
Unavailable |
|||
|
#8
FLANGE, SPACER
4V4-25315-00-00
|
$3.10 | ||
|
Unavailable |
|||
|
#9
BEARING
93306-30417-00
Superseded by 93306-30437-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL, SO-TYPE
93104-27026-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE SHOE KIT
4H7-W2536-00-00
Superseded by 3LT-W253E-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, TENSION
90507-20002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, BRAKE SHOE
371-25321-00-00
|
$53.10 | ||
|
Unavailable |
|||
|
#
PLATE, BRAKE SHOE
371-25321-10-00
|
$56.74 | ||
|
Unavailable |
|||
|
#14
CAMSHAFT
341-25351-00-00
|
$24.39 | ||
|
Unavailable |
|||
|
#15
SHIM, CAMSHAFT
148-25353-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, CAMSHAFT
447-25353-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#16
SEAL, CAMSHAFT
148-25359-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
LEVER, CAMSHAFT
371-25355-02-00
|
$63.99 | ||
|
Unavailable |
|||
|
#18
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-20166-00
|
$19.99 | ||
|
Unavailable |
|||
|
#20
BRG,R-B 6305ZZ 62MM
93306-30507-00
Superseded by 93306-305U0-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER
371-25364-00-00
|
$5.04 | ||
|
Unavailable |
|||
|
#22
CLUTCH, HUB
371-25366-00-00
|
$36.91 | ||
|
Unavailable |
|||
|
#23
O-RING
93210-76211-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPROCKET, DRIVN 43T
371-25443-20-00
|
$71.51 | ||
|
Unavailable |
|||
|
#25
BOLT
90105-10007-00
Superseded by 90101-10303-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER
371-25412-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#
WASHER
256-25412-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
50 HDS DID 108L
94580-05108-00
|
$174.99 | ||
|
Unavailable |
|||
|
#28
CHAIN JOINT
94680-05011-00
|
$3.60 | ||
|
Unavailable |
|||
|
#29
PIN, DOWEL
93604-08071-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
RETAINER
371-25369-01-00
|
$19.99 | ||
|
Unavailable |
|||
|
#30
NUT, LOCK
371-25413-01-00
|
$17.38 | ||
|
Unavailable |
|||
|
#31
OIL SEAL
93102-30072-00
Superseded by 93106-30029-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#
OIL SEAL, SDD-TYPE (93110-32002
93105-32008-00
|
$6.49 | ||
|
Unavailable |
|||
|
#32
COLLAR, WHEEL
371-25377-00-00
|
$2.97 | ||
|
Unavailable |
|||
|
#
COLLAR
90387-20438-00
|
$3.00 | ||
|
Unavailable |
|||
|
#33
COVER, HUB DUST
371-25367-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#34
PULLER, CHAIN 1
256-25388-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#35
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, CASTLE
90171-18043-00
|
$21.99 | ||
|
Unavailable |
|||
|
#38
PIN,COTTER
91401-40040-00
Superseded by 91490-40045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR
90387-20444-00
|
$8.49 | ||
|
Unavailable |
|||
|
#40
AXLE, WHEEL
371-25381-00-00
|
$26.68 | ||
|
Unavailable |
|||
|
#41
BAR, TENSION
256-25371-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#42
BOLT
90109-08184-00
|
$5.49 | ||
|
Unavailable |
|||
|
#43
BOLT
90109-08375-00
|
$4.60 | ||
|
Unavailable |
|||
|
#44
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Unavailable |
|||
|
#47
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#48
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BALANCER, WHEEL (15G)
156-25398-00-00
Superseded by 3HT-25398-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
BALANCER, WHEEL (15G)
156-25398-00-00
Superseded by 3HT-25398-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#51
WASHER
371-25349-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#52
BOLT, CLUTCH
371-25416-00-00
|
$25.60 | ||
|
Unavailable |
|||
