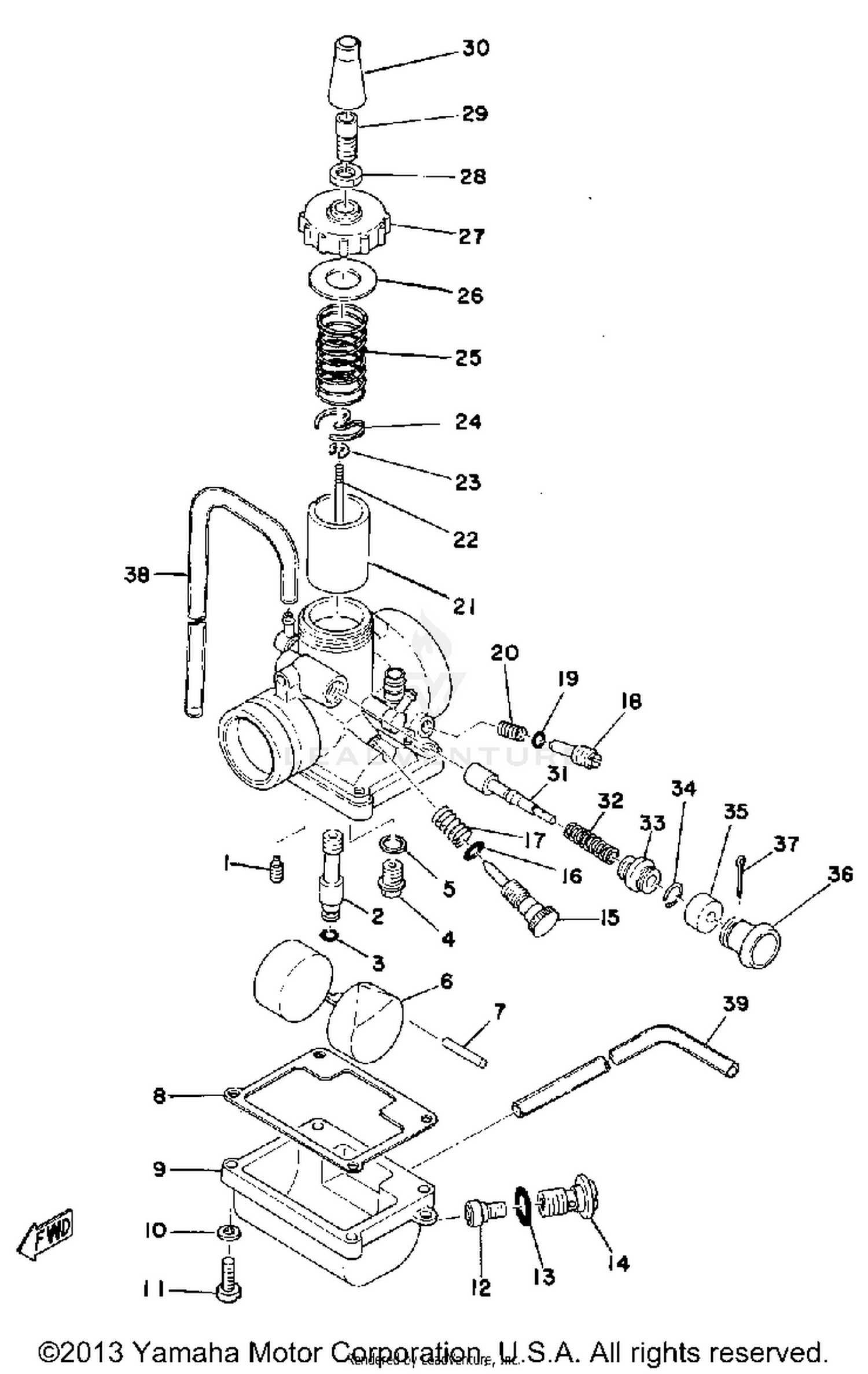

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JET, PILOT (# 25)
260-14142-25-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSEMBLY 1
525-14101-60-00
|
$57.87 | ||
|
Unavailable |
|||
|
#2
NOZZLE, MAIN
493-14141-30-00
|
$17.60 | ||
|
Unavailable |
|||
|
#3
O-RING
214-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEEDLE VALVE ASSEMBLY (#1.8)
353-14190-18-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, NEEDLE VALVE
127-14195-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLOAT
525-14185-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#7
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, FLOAT CHAMBER
304-14184-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BODY, FLOAT CHMBR 1
493-14181-00-33
|
$21.99 | ||
|
Unavailable |
|||
|
#10
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
JET, MAIN (#190)
137-14143-38-A0
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN #170
137-14143-34-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#180)
137-14143-36-A1
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93220-09001-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BANJO
493-14166-00-00
|
$13.36 | ||
|
Unavailable |
|||
|
#15
SCREW, THROTTLE
493-14122-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#16
O-RING
361-14147-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#17
SPRING, THROTTLE STOP
493-14133-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, AIR ADJUSTING
493-14123-00-00
|
$7.32 | ||
|
Unavailable |
|||
|
#19
O-RING
354-14147-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, AIR ADJUSTING
174-14134-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
VALVE, THROTTLE 1
304-14112-30-00
|
$16.74 | ||
|
Unavailable |
|||
|
#22
NEEDLE
493-14116-01-00
|
$6.86 | ||
|
Unavailable |
|||
|
#23
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAT, SPRING
137-14136-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#25
SPRING, THRTL VALVE
3X3-14131-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET
193-14126-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
TOP, MIXING CHAMBER
525-14158-00-33
|
$5.02 | ||
|
Unavailable |
|||
|
#28
NUT, CABLE ADJUSTING
802-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CBLE ADJUST SCREW SET
12G-14106-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CAP
802-14169-00-00
Superseded by 8A7-14169-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLUNGER, STARTER
304-14171-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING, PLUNGER
156-14135-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAP, PLUNGER
152-14174-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP, PLUNGER
152-14138-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#35
COVER, PLUNGER CAP
132-14173-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOLDER
304-14261-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE
2J2-14196-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
PIPE, AIRVENT
23F-14197-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
