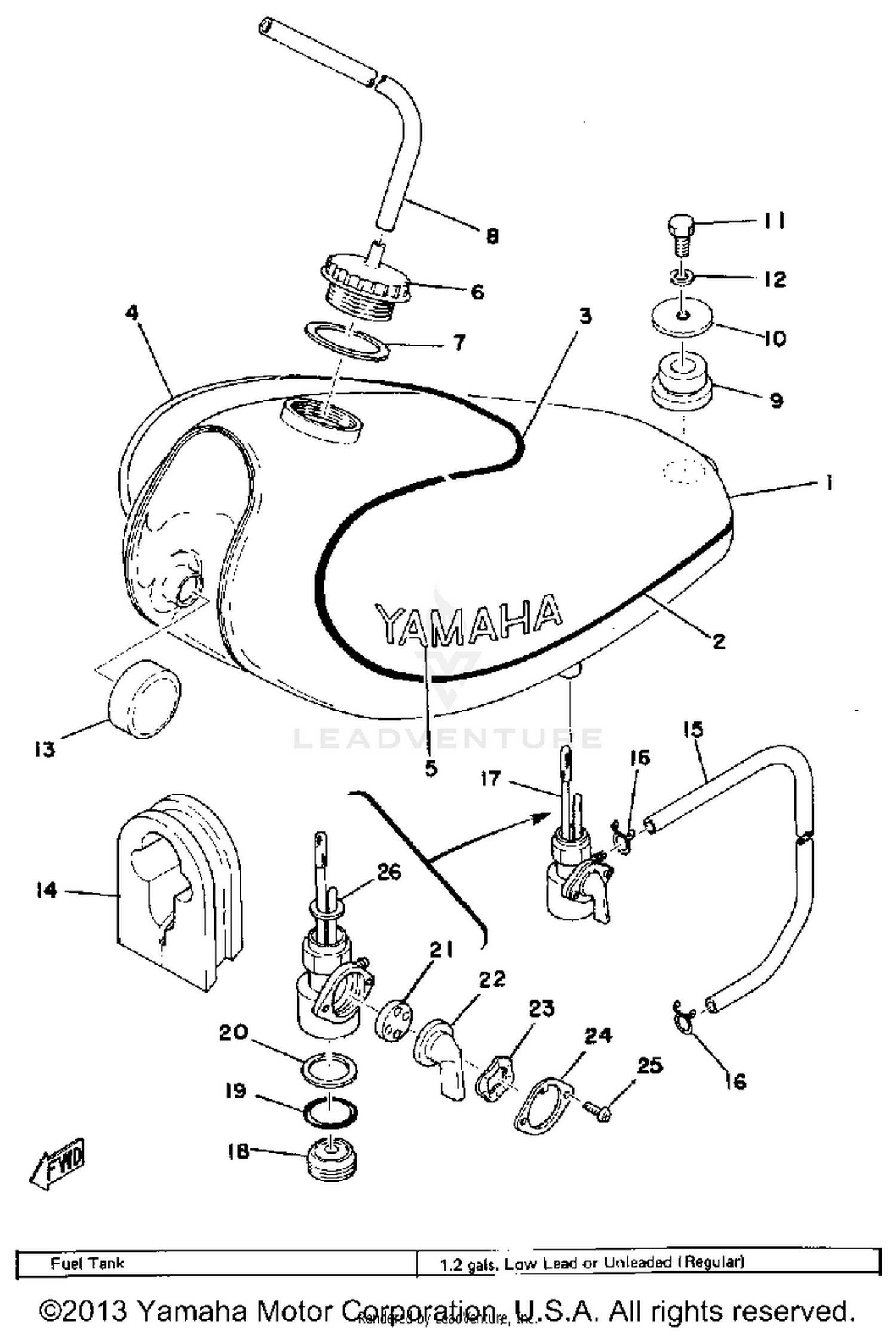

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP
525-24110-00-09
|
$276.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 3
525-24246-00-00
|
$8.28 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 1
525-24244-01-00
|
$8.28 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 4
525-24247-00-00
|
$8.28 | ||
|
Unavailable |
|||
|
#5
EMBLEM, YAMAHA
322-24161-00-00
Superseded by 99221-00140-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
BODY, CAP
322-24611-02-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET (322-24612-00)
90430-37052-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE 5
90445-09073-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-25189-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
90209-08098-00
Superseded by 90209-08008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER, LOCATING 3
434-24183-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#15
HOSE (L540)
90445-09238-00
Superseded by 90445-09361-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
90467-09005-00
Superseded by 90467-08017-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUEL COCK ASSEMBLY 1
434-24500-03-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUP, FILTER
434-24521-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#19
GASKET
132-24522-00-00
Superseded by 498-24522-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
434-24576-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#21
GASKET
137-24523-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
LEVER, COCK
168-24524-00-00
|
$7.32 | ||
|
Unavailable |
|||
|
#23
WASHER, WAVE
132-24518-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, LVR FITTING
132-24525-01-00
|
$3.30 | ||
|
Unavailable |
|||
|
#25
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET
434-24532-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
