1975 Yamaha TY175 Intake OEM Parts

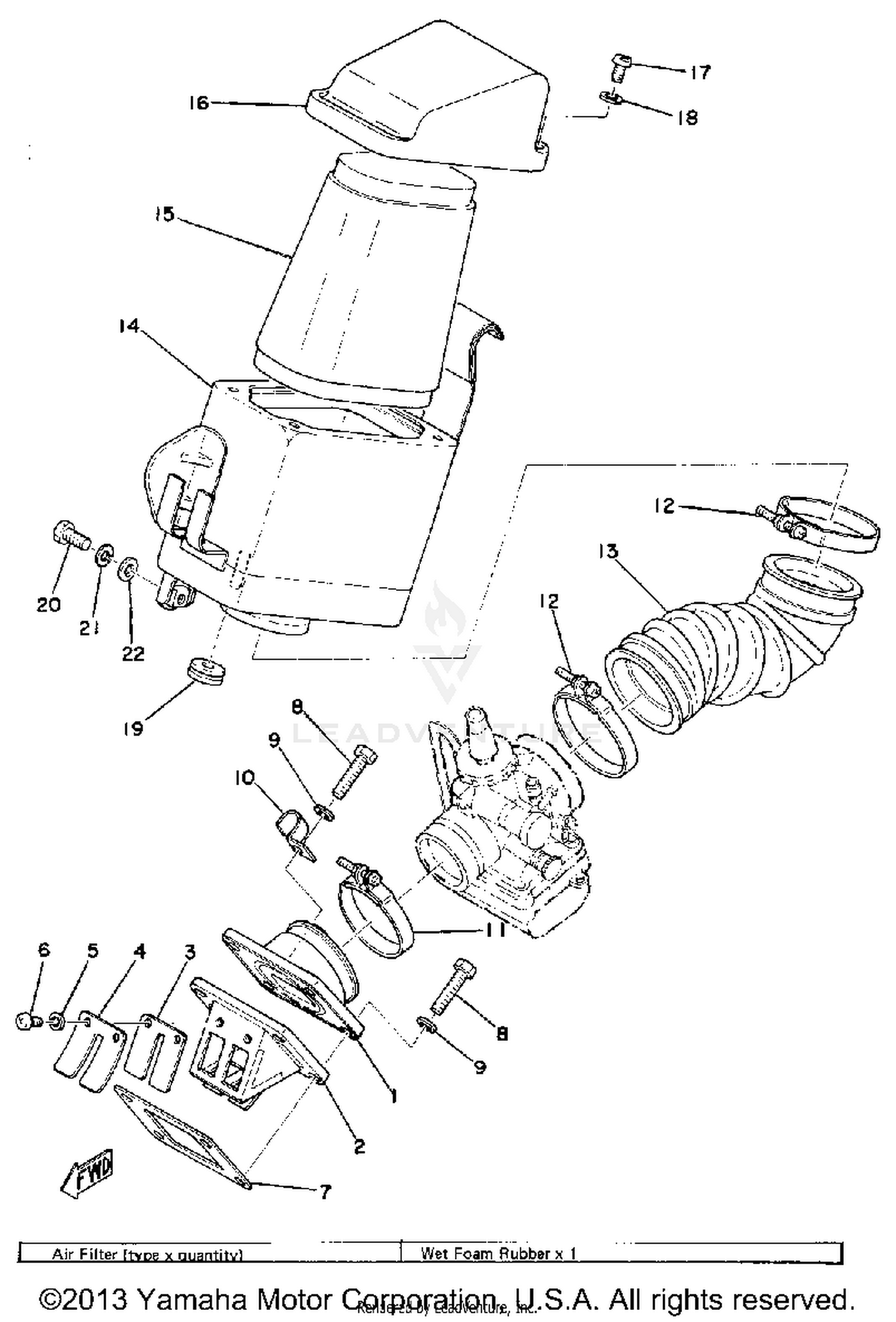

Intake Diagram

Item	MSRP	Qty
#1 JOINT, CARBURETOR 525-13565-01-00	$18.49
Unavailable
#2 REED VALVE ASSEMBLY 314-13610-01-00 Superseded by 53V-13610-00-00	$165.99
Available to order. Add to View Price
#3 REED, VALVE 314-13613-01-00	$36.99
Available to order. Add to View Price
#4 STOPPER, REED VALVE 314-13616-01-00 Superseded by 10X-13616-00-00	$14.99
Unavailable
#5 WASHER, SPRING 92990-03100-00	$7.49
Available to order. Add to View Price
#6 SCREW, PAN HEAD 98580-03008-00	$3.35
Available to order. Add to View Price
#7 GASKET, VALVE SEAT 87A-13621-00-00	$8.49
Available to order. Add to View Price
#8 BOLT 97011-06025-00 Superseded by 97017-06025-00	$4.00
Available to order. Add to View Price
#9 WASHER, SPRING 92995-06100-00	$3.20
Available to order. Add to View Price
#10 CLAMP 90462-05005-00	$8.49
Available to order. Add to View Price
#11 CLAMP, HOSE 90460-43053-00 Superseded by 90460-43179-00	$18.49
Available to order. Add to View Price
#12 CLAMP, HOSE 90460-51059-00	$15.49
Available to order. Add to View Price
#13 JOINT, AIR CLNR 1 525-14453-00-00	$52.99
Unavailable
#14 CASE, AIR CLEANER 1 525-14411-00-00	$29.94
Unavailable
#15 ELEMENT, AIR CLEANER 525-14451-01-00 Superseded by 525-14451-02-00	$16.49
Available to order. Add to View Price
#16 CAP, CLEANER CASE 1 525-14412-01-00	$6.86
Unavailable
#17 SCREW, PAN HEAD 98580-04008-00	$5.49
Available to order. Add to View Price
#18 WASHER, PLAIN 92990-04200-00	$1.75
Available to order. Add to View Price
#19 GROMMET (214-21746-00) 90480-10091-00	$7.49
Available to order. Add to View Price
#20 BOLT 97013-06012-00	$4.85
Available to order. Add to View Price
#21 WASHER, SPRING 92995-06100-00	$3.20
Unavailable
#22 WASHER PLAIN 90201-06067-00 Superseded by 90201-06380-00	$0.55
Available to order. Add to View Price
