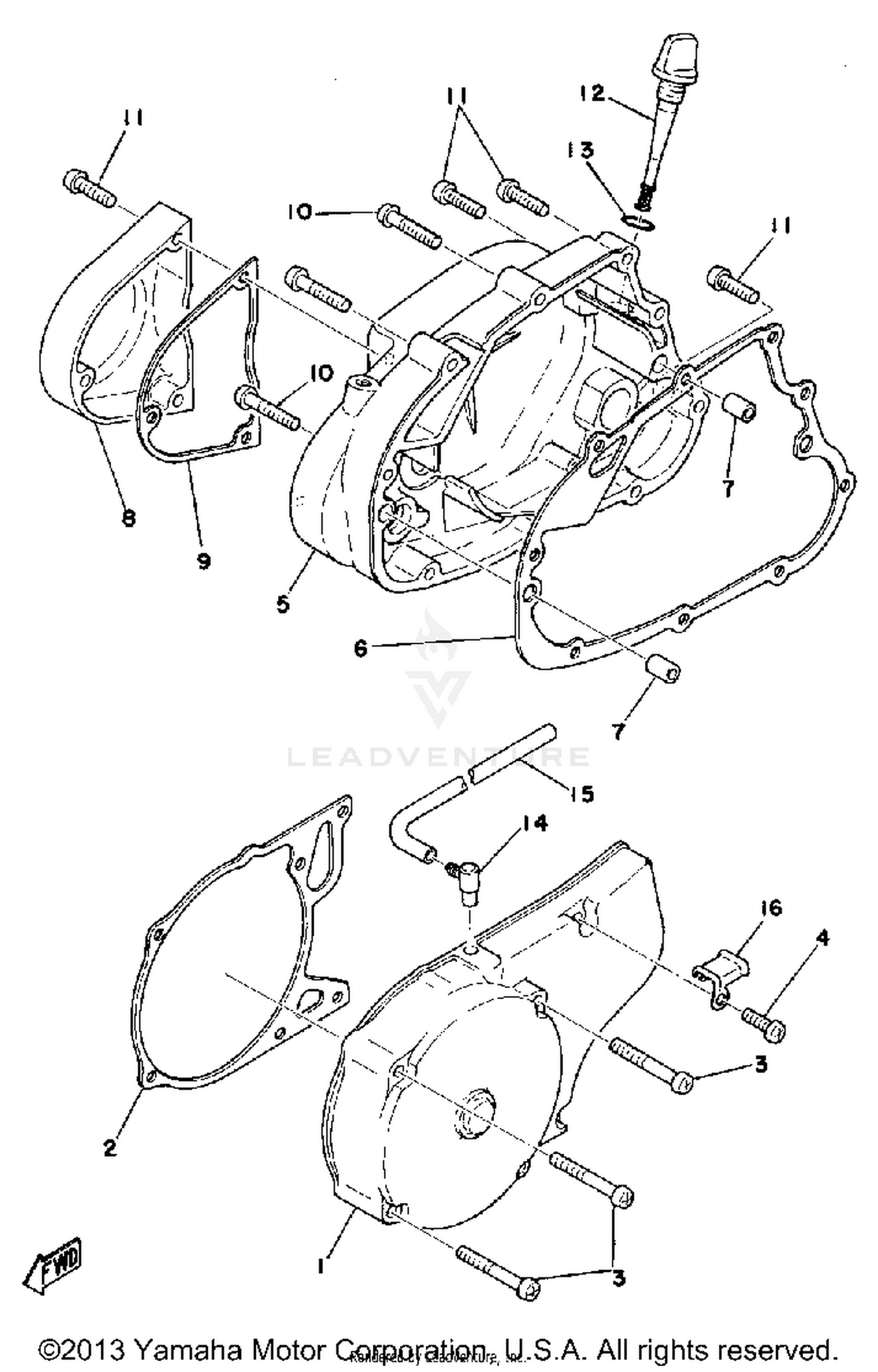

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE L
525-15411-00-00
|
$43.19 | ||
|
Unavailable |
|||
|
#2
GASKET 1
525-15455-00-00
Superseded by 525-15455-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98580-06550-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, CRANKCASE 3
525-15431-00-00
|
$101.99 | ||
|
Unavailable |
|||
|
#6
GASKET, CRANKCASE COVER 1
401-15451-00-00
Superseded by 3UL-15451-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, OIL PUMP
525-15416-00-00
|
$15.84 | ||
|
Unavailable |
|||
|
#9
GASKET, OIL PUMP COVER 1
3UL-15456-00-00
Superseded by 3UL-15456-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98580-06035-00
Superseded by 97885-06035-00
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, OIL LEVEL
525-15362-01-00
|
$5.86 | ||
|
Unavailable |
|||
|
#13
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BREATHER
583-15371-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE
90445-07177-00
Superseded by 90445-07MF1-00
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90461-10016-00
|
$7.99 | ||
|
Unavailable |
|||
